2.3 Motherboard rear and audio connections

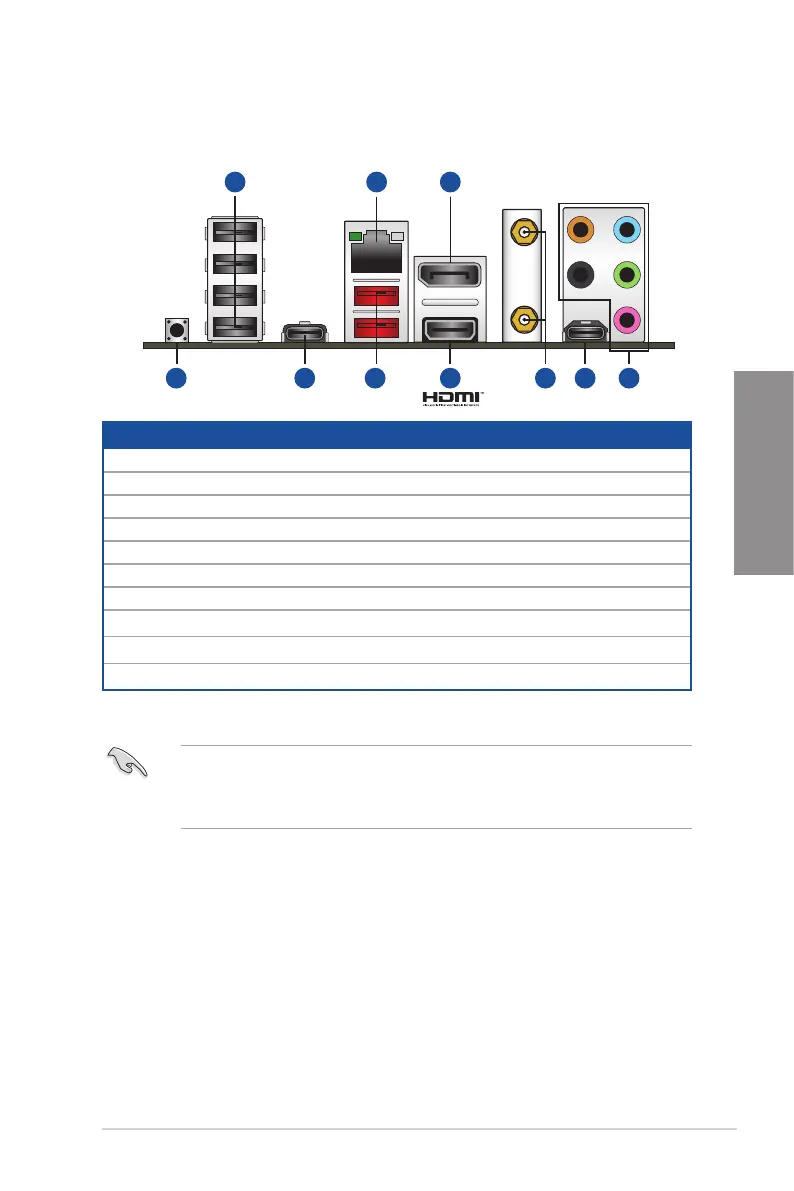

2.3.1 Rear I/O connection
Rear panel connectors
1. USB 2.0 ports E5~E8
2. Intel
®
I225-V 2.5Gb Ethernet port*
3. DisplayPort
4. BIOS FlashBack™ button
5. USB 3.2 Gen 2 Type-C
®
port C7
6. USB 3.2 Gen 2 Type-A ports 3 and 4
7. HDMI™ port
8. Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth V5.1
9. Audio USB Type-C
®
10. Audio jacks**
We strongly recommend that you connect your devices to ports with matching data
transfer rate. Please connect your USB 3.2 Gen 1 devices to USB 3.2 Gen 1 ports and
your USB 3.2 Gen 2 devices to USB 3.2 Gen 2 ports for faster and better performance for
your devices.
108 974 5 6
321
* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
