Asus ROG STRIX Z590-E GAMING Series - Connectors with Shared Bandwidth; Motherboard Layout and Bandwidth Sharing

xiii

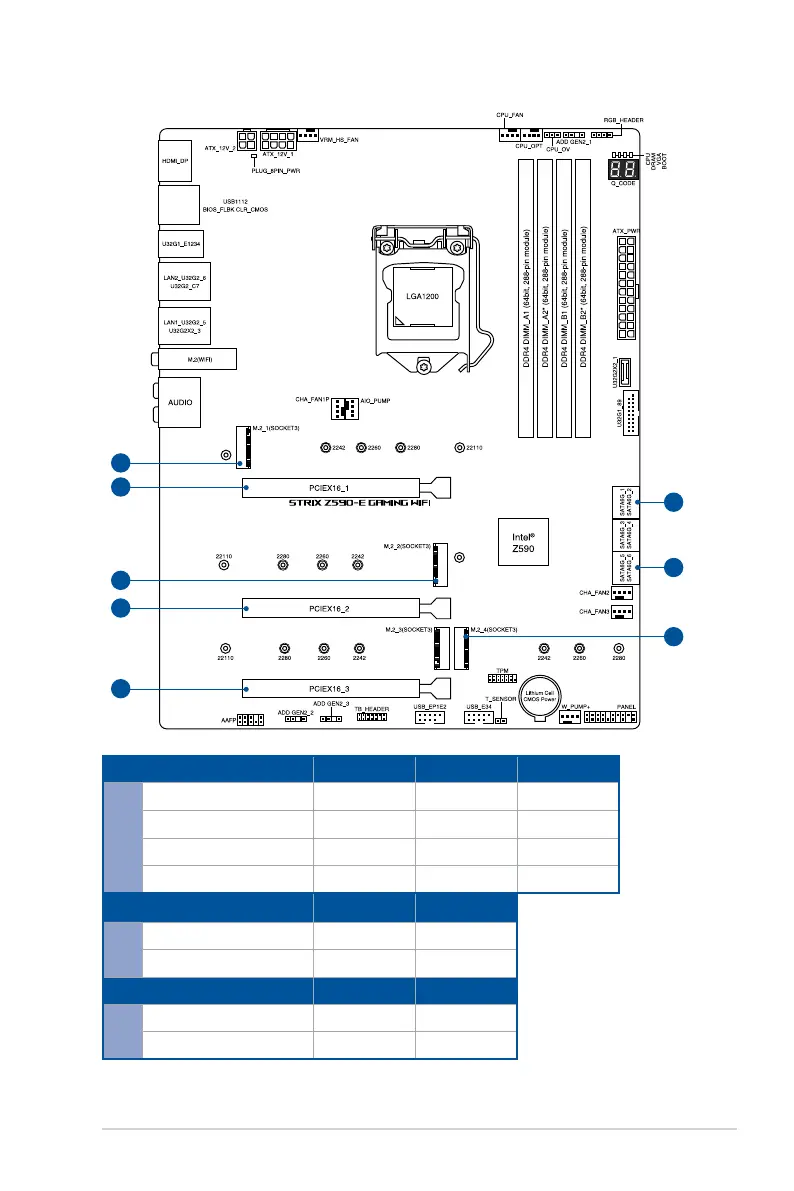

Connectors with shared bandwidth
A
B
A
A
A
B
C
C
Configuration 1 2 3
A
PCIEX16_1 x16 x8 x8
PCIEX16_2 - x8 x4
M.2_1 x4 x4 x4
M.2_2 - - x4
Configuration
1 2
B
PCIEX16_3 x4 x2
SATA6G_56 - V
Configuration 1 2
C
M.2_4 SATA mode PCIe mode
SATA6G_2 - V
