Asus RT-AX3000 User Manual

110
Internet is not accessible.
• CheckifyourroutercanconnecttoyourISP’sWANIPaddress.

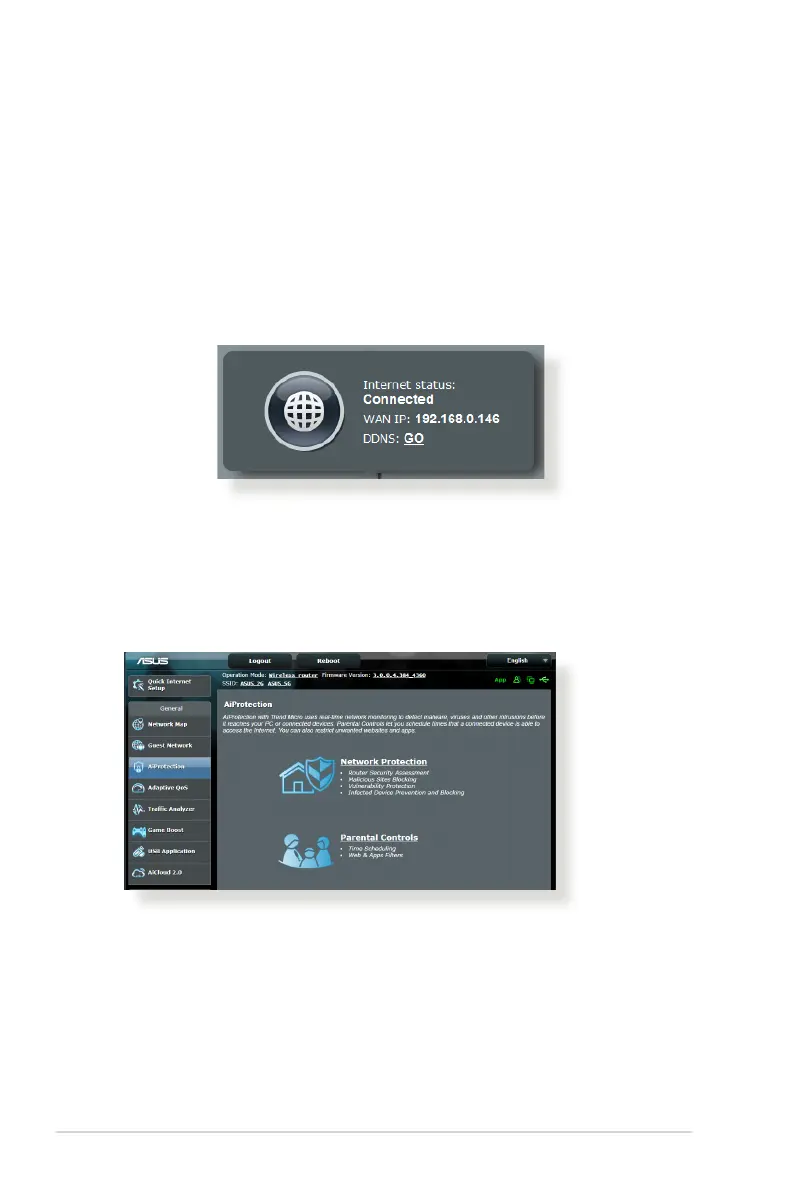

To do this, launch the web GUI and go to General> Network
Map, and check the Internet Status.
• IfyourroutercannotconnecttoyourISP’sWANIPaddress,
try restarting your network as described in the section
Restart your network in following sequence under Basic
Troubleshooting.
• ThedevicehasbeenblockedviatheParentalControlfunction.
Go to General > AiProtection >Parental Control and see
if the device is in the list. If the device is listed under Client
Name, remove the device using the Delete button or adjust
the Time Management Settings.

Asus RT-AX3000 Specifications

General

Product type	Tabletop router
LED indicators	LAN, Power, WAN, WLAN
Antennas quantity	4
Output current	2 A
Output voltage	19 V
AC input voltage	110 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Flash memory	256 MB
Internal memory	512 MB
Processor cores	3
Built-in processor	Yes
Processor frequency	1.5 MHz
DSL WAN	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
VPN support	VPN Client L2PT:Yes VPN Client OVPN:Yes VPN Client PPTP:Yes VPN Server IPSec:Yes VPN Server OVPN:Yes VPN Server PPTP:Yes VPN Fusion:No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Cables included	LAN (RJ-45)
MAC address table	64 entries
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS

Weight and Dimensions

Weight	538 g
