Asus RT-N10 LX User Manual

14
RT-N10 LX Chapter 2: Setting up the hardware
3. Internet connection setup is done.
Notes:
• If QIS does not detect your Internet connection type, click
Skip to manual setting
and
manually congure your connection settings.
• If QIS does not automatically launch, key in
http://192.168.1.1
in your web browser, and
manually launch QIS. For more details, refer to the next section
Using QIS without auto-
detection
.

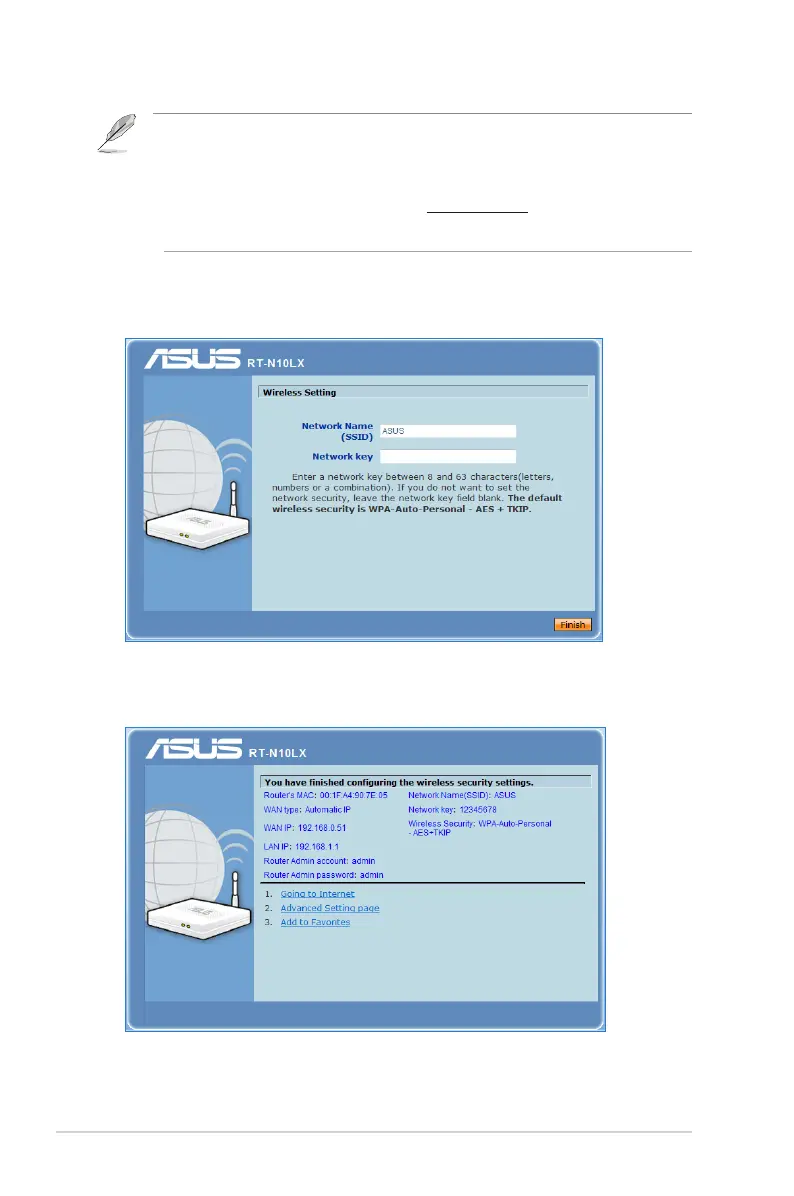

2. Assign the network name and network key for a secure wireless network.
Click Finish when done.

Asus RT-N10 LX Specifications

General

Wireless Standard	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Maximum Data Rate	150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Firewall	NAT and SPI
Security	WEP, WPA, WPA2
Storage Temperature	-20°C to 70°C
