Asus RT-N10 LX User Manual

21
Chapter 4: Conguring via the web GUI RT-N10 LX
4
Conguring the
advanced settings

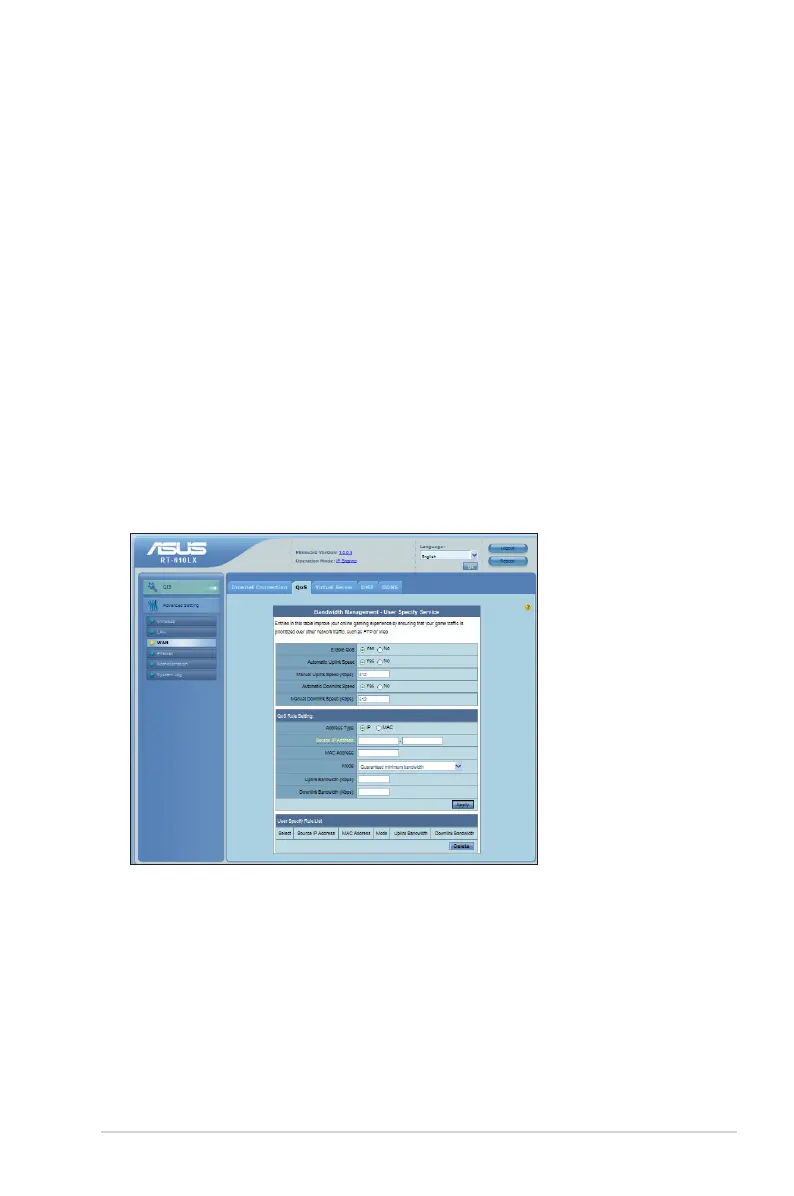

Managing bandwidth with QoS
QoS enables you to set the bandwidth priority and manage the network trafc.
To set up the bandwidth priority:
1. From the left navigation menu, click Advanced Setting > WAN > QoS tab.
2. Tick Yes in the Enable QoS eld.
3. To manage the network trafc, select IP or MAC in the Address Type eld.
4. Click Apply to save the settings.

Asus RT-N10 LX Specifications

General

Wireless Standard	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Maximum Data Rate	150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Firewall	NAT and SPI
Security	WEP, WPA, WPA2
Storage Temperature	-20°C to 70°C
