Asus RT-N10 LX User Manual

9
Chapter 1: Knowing your wireless router RT-N10 LX

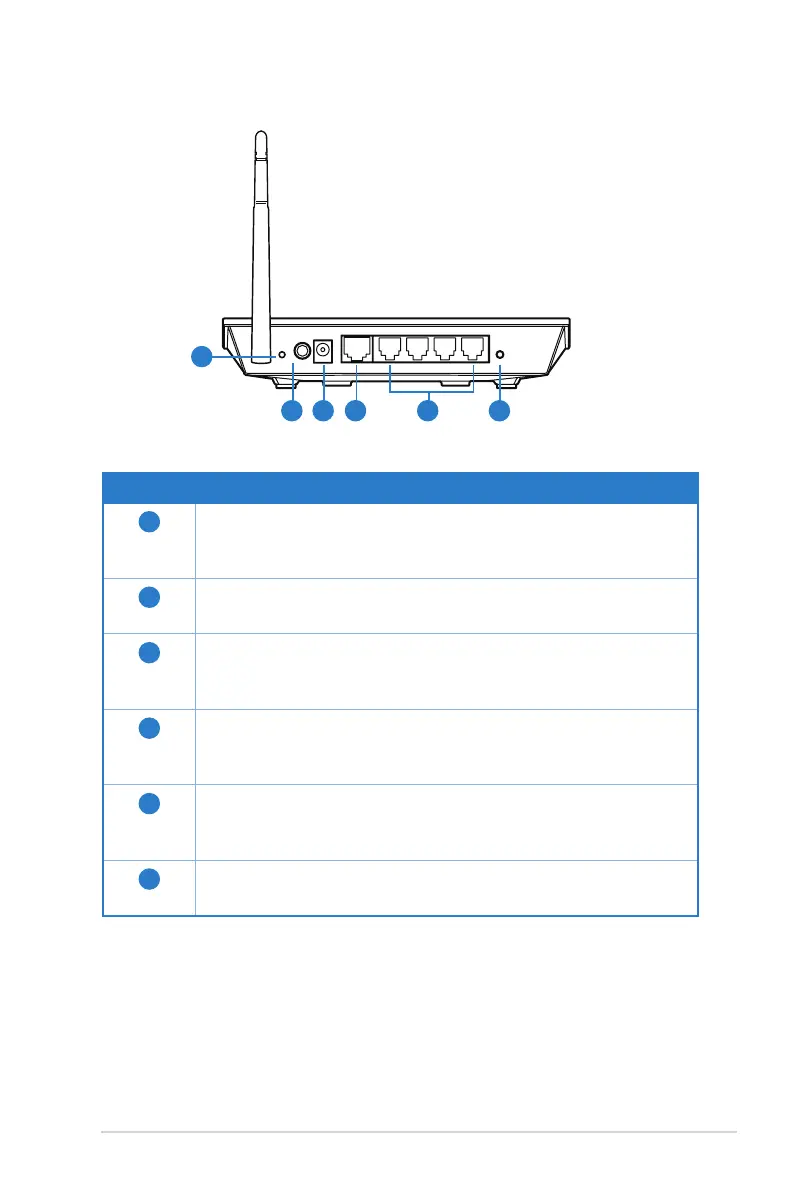

Rear panel
Item Description
1
Reset button
Press this button for more than ve seconds to reset the system to
its factory default settings.
2
Power switch
Press this button to turn the power on/off.
3
Power (DC-In) port
Insert the AC adapter into this port to connect your router to a
power source.
4
WAN port
Connect an RJ-45 Ethernet cable to this port to establish WAN
connection.
5
LAN 1 ~ 4 ports
Connect RJ-45 Ethernet cables to these ports to establish LAN
connection.
6
WPS button
Press this button to establish wireless connection.
Reset
Power
WAN
LAN4
LAN3 LAN2
LAN1 WPS
1
2 3 4 5
6

Asus RT-N10 LX Specifications

General

Wireless Standard	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Maximum Data Rate	150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Firewall	NAT and SPI
Security	WEP, WPA, WPA2
Storage Temperature	-20°C to 70°C
