Chapter 3
3.2.1 EZ Mode

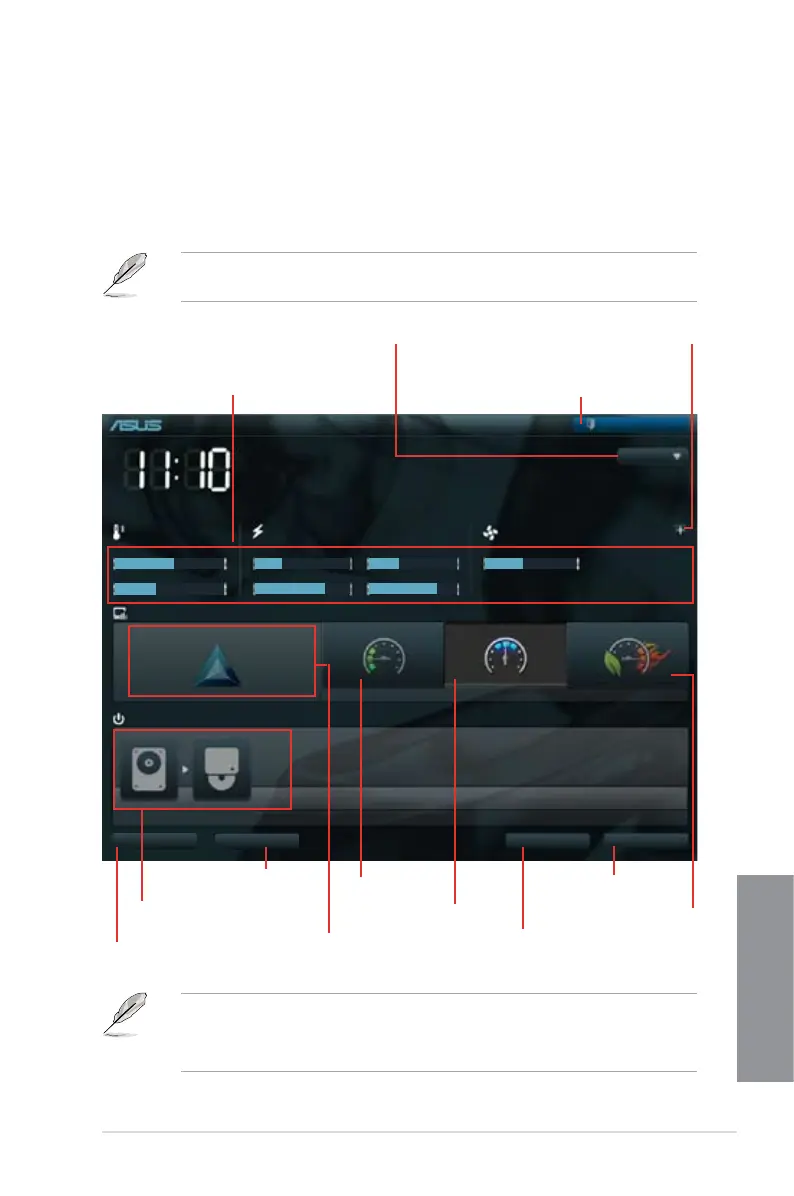

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press <F7> hot
key for the advanced BIOS settings.
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section 3.7 Boot menu for details.
• The boot device options vary depending on the devices you installed to the system.
• The
Boot Menu (F8) button is available only when the boot device is installed to the
system.
Selects the Advanced mode
functions
Exits the BIOS setup program without saving
the changes, saves the changes and resets the
system, or enters the Advanced Mode
Selects the display language of the
BIOS setup program
Displays the CPU/motherboard temperature,
CPU/5V/3.3V/12V voltage output, CPU/chassis/
power fan speed
Power Saving mode
Normal mode
ASUS Optimal mode
Loads optimized default
settings
Selects the boot device priority
Selects the boot device priority
Displays the system properties of the
selected mode on the right hand side
Click to display all fan
speeds if available
SABERTOOTH 990FX R2.0
BIOS Version : 0202 Build Date : 05/08/2012
CPU Type : AMD Phenom(tm) II X4 965 Processor Speed : 3400 MHz
Total Memory : 2048 MB (DDR3 1333MHz)
Exit/Advanced Mode
English
UEFI BIOS Utility - EZ Mode
Monday [03/25/2012]
Normal
Quiet
Performance Energy Saving
System Performance
Boot Menu (F8)
Default (F5)
Use the mouse to drag or keyboard to navigate to decide the boot priority.
Boot Priority
Shortcut (F3)
Advanced Mode (F7)
Displays the Advanced
mode menus
Temperature Voltage Fan Speed
CPU +113.0ºF/+45.0ºC CPU 1.248V 5V 5.160V CPU_FAN 3325RPM CPU_OPT_FAN N/A
MB +75.2ºF/+40.0ºC 3.3V 3.344V 12V 12.248V CHA_FAN1 N/A CHA_FAN2 N/A

Asus SABERTOOTH 990FX R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA III connectors	8
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD 990FX
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card	No
Parallel processing technology support	Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express slots version	2.0
PCI Express configurations	1x1, 1x4, 1x16, 2x8, 2x16
PCI Express slots quantity	5
Controller 2nd interface type	ASMedia PCIe SATA
Trial software	Antivirus
Cables included	CrossFire, SATA
Bundled software	ASUS Update\\r ASUS Utilities
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
