No. Item Description
1 Front Out port
Connects to the “left front” and “right front” input ports of the
analog amplifier with the mini-jack to RCA cable.
2 Side Surround Out port
Connects to the “left surround” and “right surround” input
ports of the analog amplifier with the mini-jack to RCA cable.
3
Center/Subwoofer Out
port
Connects to the “Center” and “subwoofer” input ports of the
analog amplifier with the mini-jack to RCA cable.

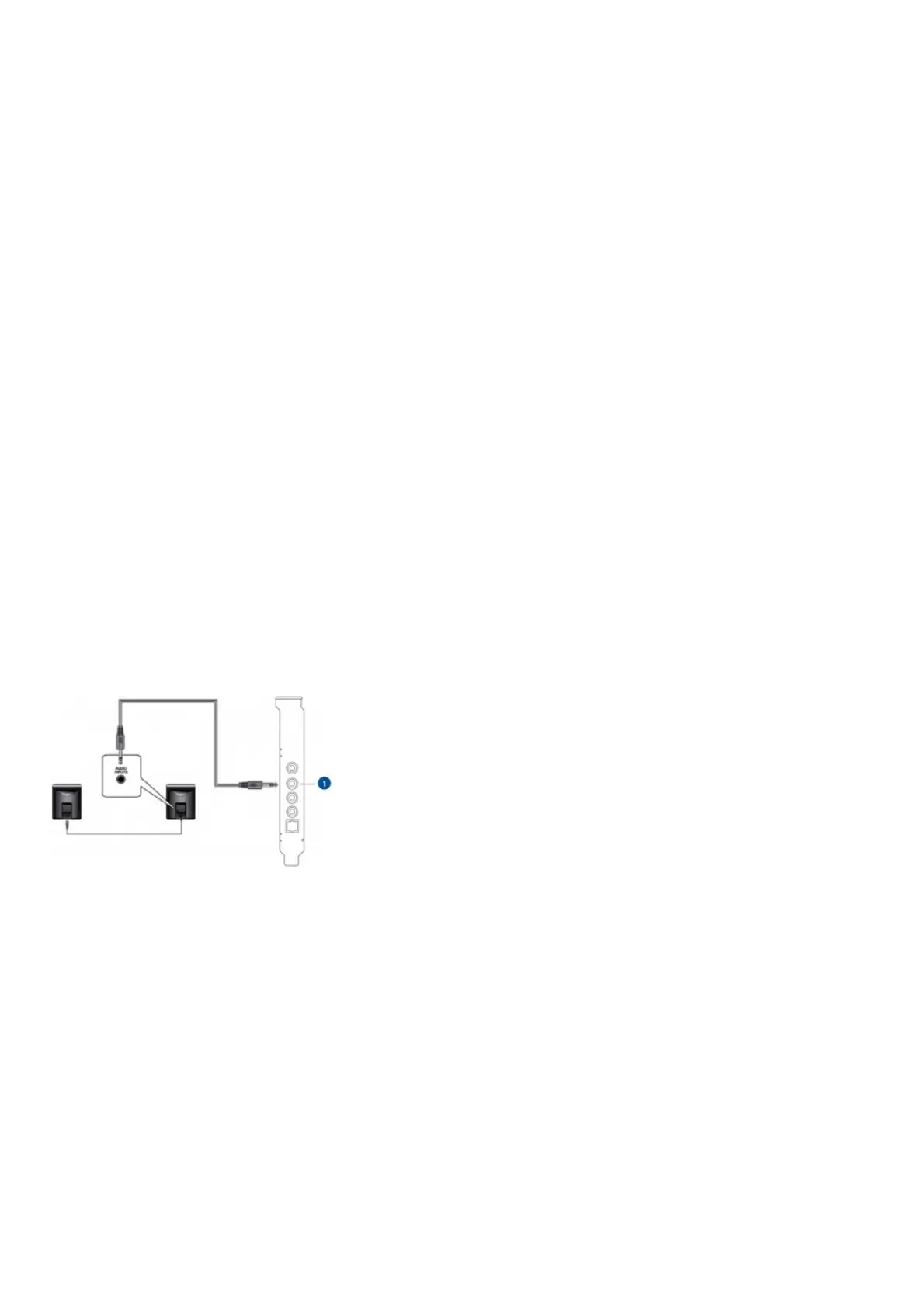

Connecting 2 channel speakers
2 Speakers
No. Item Description
1
Front Out/Headphone
Jack
Connect the 2 speaker set’s 3.5mm plug into this Front Out
jack.
Connecting 4 channel speakers
4 Speakers
