ASUS Z87-PLUS
2-13
Chapter 2
2.3 Motherboard rear and audio connections

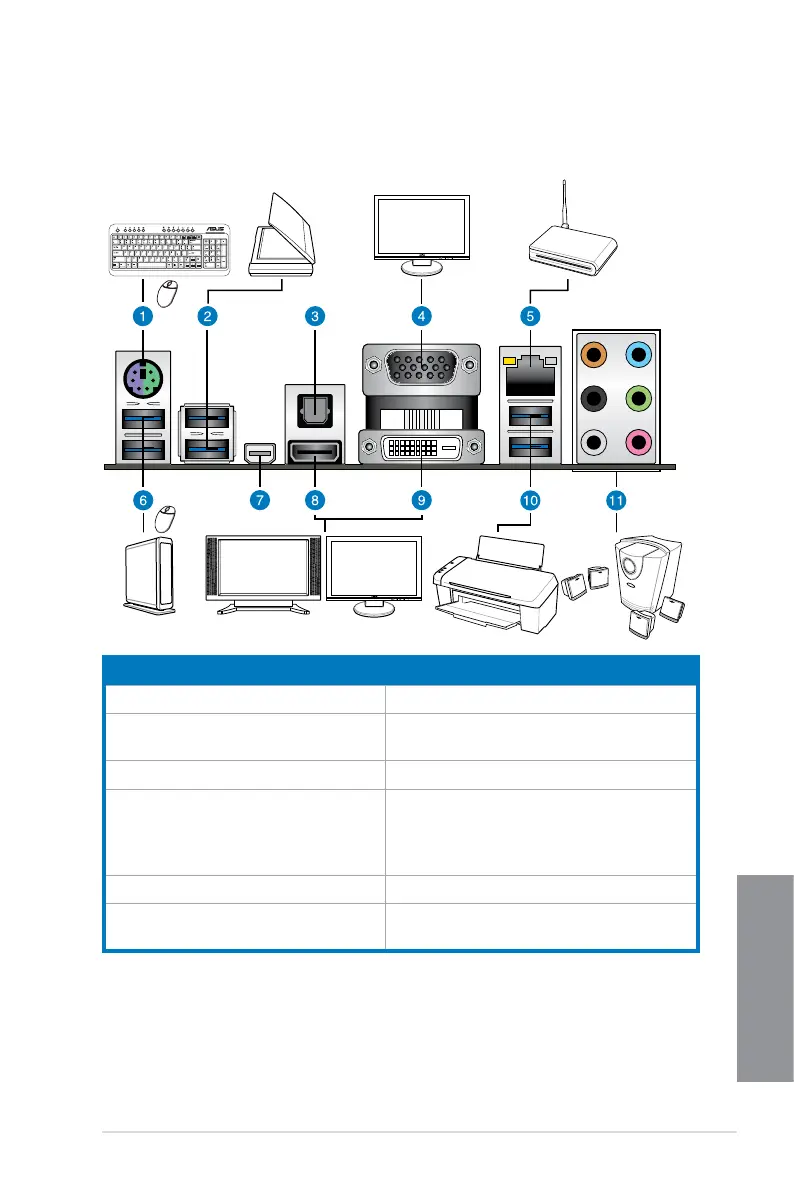

2.3.1 Rear I/O connection
* and **: Refer to the tables on the next page for LAN port LEDs, and audio port denitions.
Rear panel connectors
1. PS/2 keyboard/mouse combo port 7. Mini DisplayPort
2. ASMedia
®
USB 3.0 ports, support
ASUS USB 3.0 Boost.
8. HDMI port
3. Optical S/PDIF Out port 9. DVI port
4. VGA port 10. Intel
®
USB 3.0 ports, support ASUS
USB 3.0 Boost Turbo Mode. (Bottom
port supports USB BIOS Flashback and
USB Charger+)
5. Intel
®
LAN (RJ-45) port* 11. Audio I/O ports**
6. ASMedia
®
USB 3.0 ports support
ASUS USB 3.0 Boost
