3-1
Reproduction Prohibited
CECHC02, C03, C04, C08
Manufactured by ASUSTek
SECTION 3
EXPLODED VIEWS
SC
Ref. No. Part No. Description
Remark

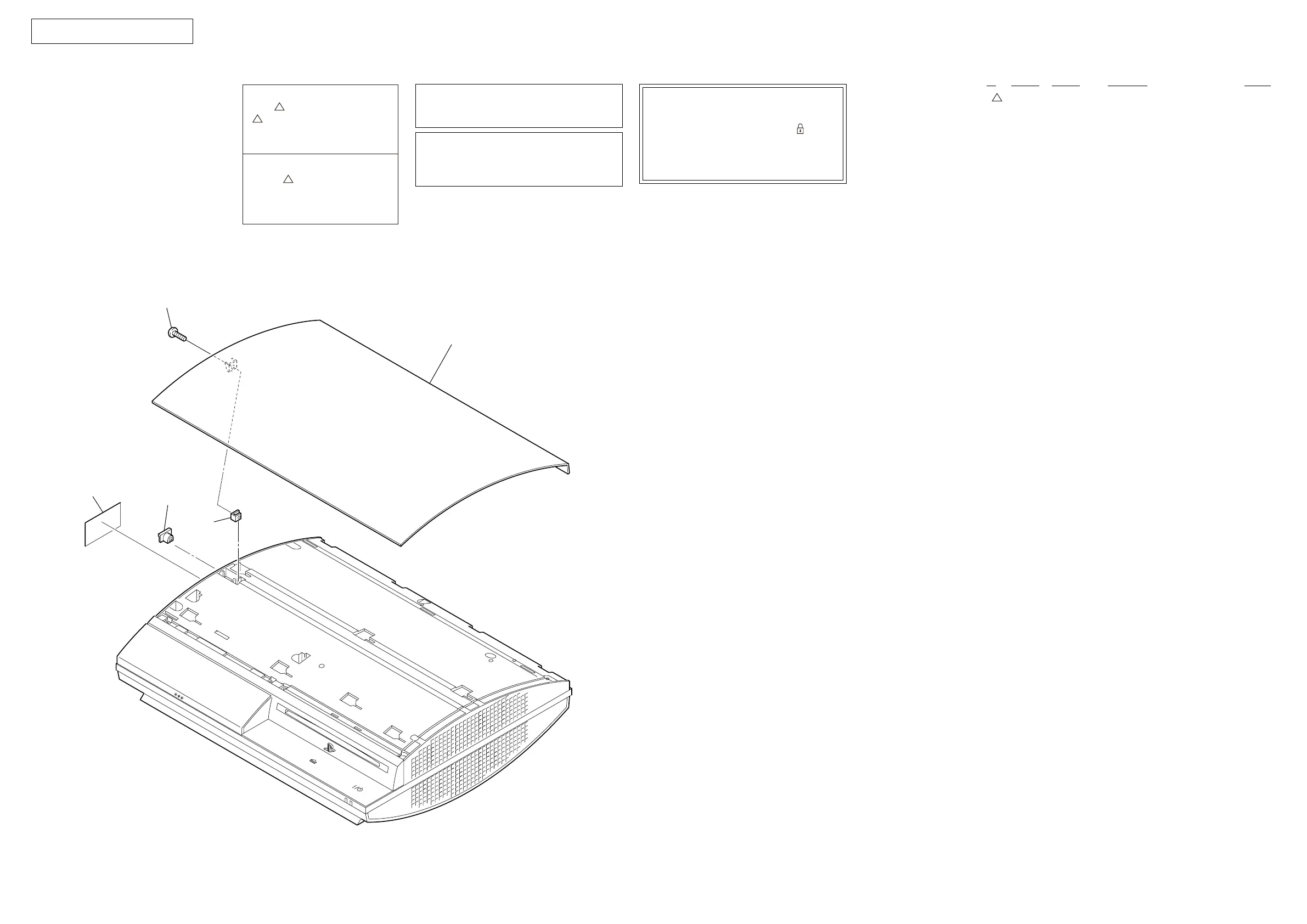

3-1. UPPER PANEL SECTION
NOTE:
•
The mechanical parts with no reference
n
umber in the exploded views are not supplied.
•
Accessories are given in the last of this
parts list.
NOTE:
•
SC Classification:
S :
Supplied parts U : Unsupplied parts
CAUTION
Use of controls or adjustments or performance
of procedures other than those specified herein
may result in hazardous rediation exposure.
S
1
9-910-001-00 PANEL ASSY, UPPER
S 2 2-888-854-01 NUT, PLATE
S 3 2-888-856-02 FOOT (UPPER), RUBBER
S 4
S 4
2-897-587-12 TAPE (MAIN), VOID (E01,E11)
S 4
2-897-587-21 TAPE (MAIN), VOID (C02,C03,C04)
S 4 2-897-587-51 TAPE (MAIN), VOID (C08)
S 5 2-319-748-01 SCREW, (3X7) OPEN PREVENTION
1
2
3
5
4
SPECIAL COMPONENT NOTICE
The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
2-897-587-31 TAPE (MAIN), VOID (E05)
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part number
specified.
Les composants identifies par une
marque sont critiques pour
la securite.
Ne les remplacer que par une piece
portant le numero specifie.
!
!
!
`
`
`
`
`
`
`
!
CECHE01, E05, E11
To Next Page
