ASUSTeK COMPUTER COK-002 - Base Frame Complete Assy Section

3-9
Reproduction Prohibited
SC
Ref. No. Part No. Description
Remark

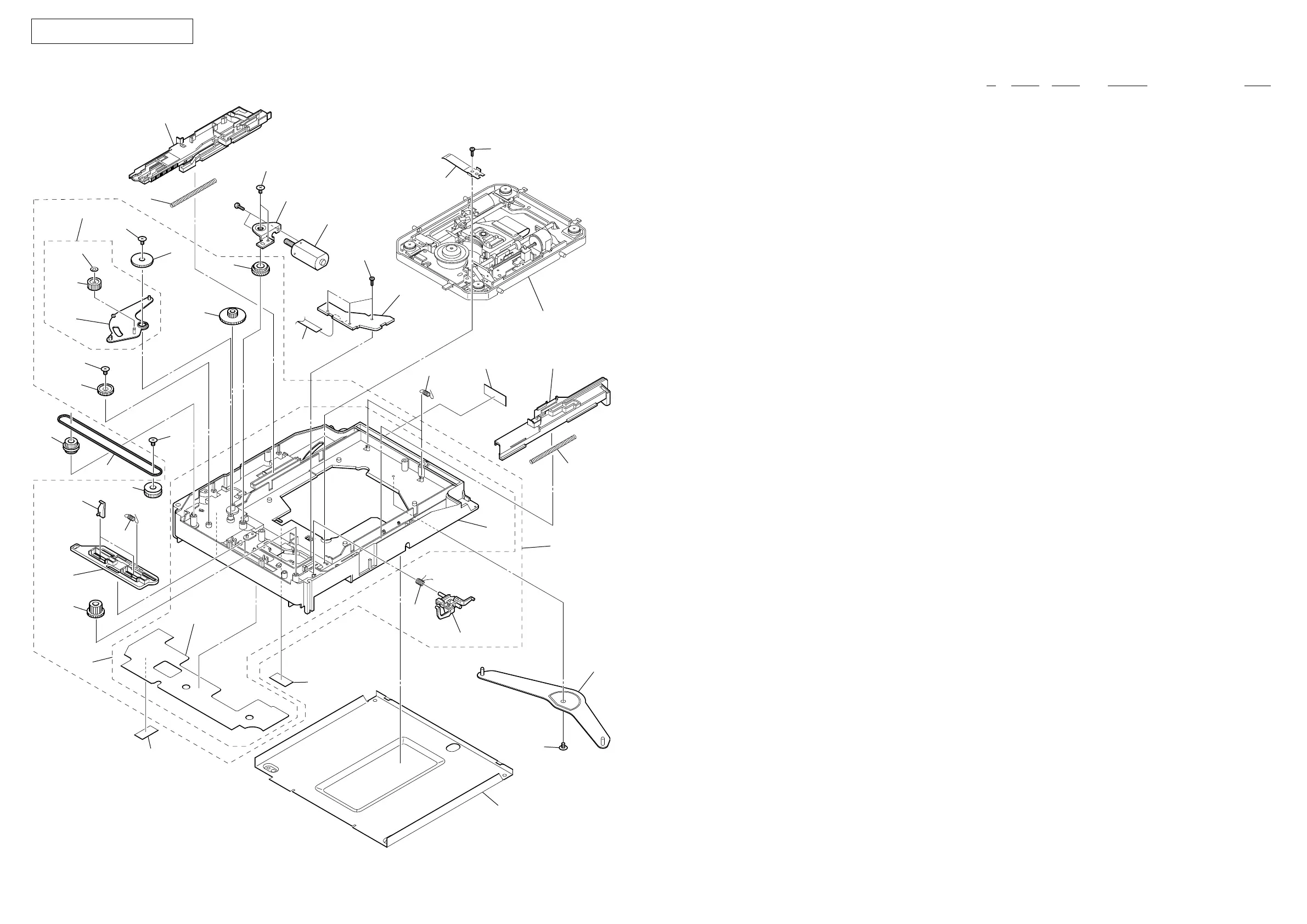

3-9. BASE FRAME COMPLETE ASSY SECTION
417
401
402
435
403
404
404
#3
404
404
404
405
406
407
407
436
408
409
410
411
412
413
412
419
423
414
415
416
418
OPTICAL PICK-UP SECTION
420
421
422
424
424
425
434
426
427
428
429
430
431
432
433
U
401 X-2149-112-1 ARM SUB ASSY, SWING
U 402 2-698-620-01 GEAR (SWING ARM)
U 403 2-698-633-01 WASHER (GEAR)
U
404 2-059-635-11 SCREW
U 405 2-698-466-01 GEAR (A)
U
406 2-698-467-01 GEAR (CAM DRIVING)
U 407 2-698-652-01 SPRING (SLIDE CAM), COMPRESSION
S 408 2-698-624-02 CAM (L), SLIDE
S
409 2-698-629-01 BRACKET, MOTOR
S 410 X-2149-103-1 MOTOR ASSY, LOADING
U
411 2-698-465-01 WHEEL, WORM
U 412 2-647-360-61 SCREW (B2), TAPPING
U 413 2-698-630-01 SPRING (BU HOLDER), LEAF
S
414 A-1267-250-A BL1-001 COMPL (SERVICE)
S 415 1-833-249-11 CABLE, FLEXIBLE FLAT (FFC-014)
U
416 2-698-653-01 SPRING (BU HOLDER), EXTENSION
S 417 2-890-570-01 LABEL, SERIAL NUMBER
S 418 2-698-625-02 CAM (R), SLIDE
U
419 2-698-626-01 FRAME, BASE
U 420 2-698-664-01 SPRING (SHUTTER ARM), TORSION
U
421 2-698-623-01 ARM, SHUTTER
S 422 2-698-628-01 ARM, LINK
S 423 A-1203-919-C BASE FRAME ASSY
S
424 3-069-212-01 TAPE, HARNESS STOPPER
U 425 2-698-631-01 SHEET (BASE FRAME)
U
426 2-698-617-01 GEAR (SHAFT R)
U 427 2-698-621-01 SLIDER (SHUTTER), LOCK
U 428 2-698-622-01 LEVER (SHUTTER), LOCK
U
429 2-698-654-02 SPRING (LOCK SLIDER), EXTENSION
U 430 2-698-618-01 GEAR (BELT)
S
431 2-698-651-01 BELT (FRONT ARM)
S 432 2-698-650-01 GEAR (SHAFT L)
U 433 2-698-619-01 GEAR (IDLER)
S
434 9-910-001-51 COVER, BOTTOM
U 435 A-1203-920-A ARM ASSY, SWING
U
436 A-1204-032-A FRAME SUB ASSY, BASE
S #3 7-627-554-38 SCREW, PRECISION +P 2X1.8 TYPE1
CECHC02, C03, C04, C08
Manufactured by ASUSTek
CECHE01, E05, E11
