Asyril Asycube 530 Integration Guidelines

Asycube mechanical integration guidelines
000.103.437
Version : A
10/14

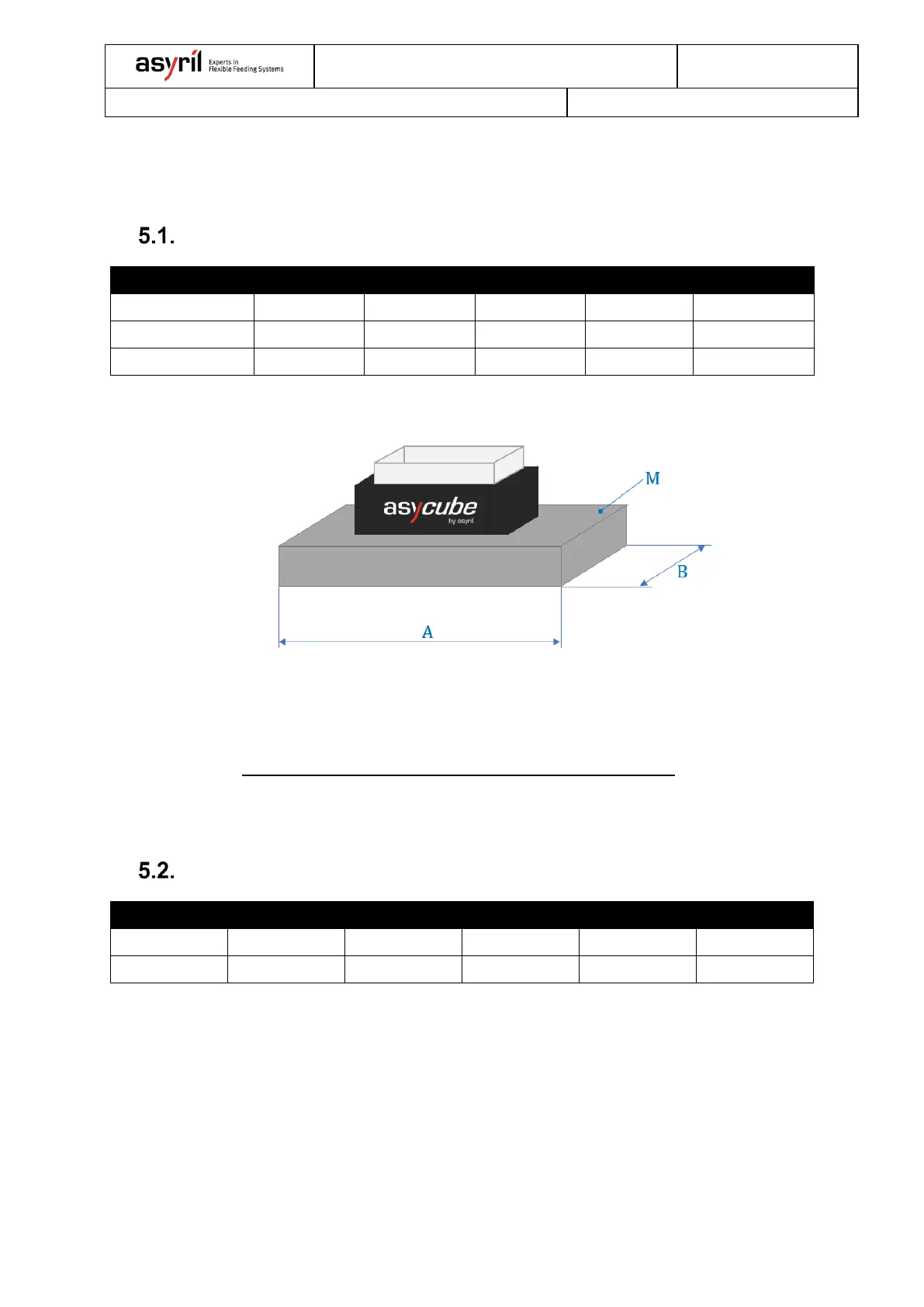

5. Technical data tables
This chapter contains the technical parameters necessary to correctly install Asycube products.
Support Characteristics
Asycube
50
80
240
380
530
M – [Kg]
≥ 10
≥ 10
≥ 40
≥ 200
≥ 250
A – [mm]
≤ 600
≤ 600
≤ 600
≤ 1000
≤ 1200
B – [mm]
≤ 150
≤ 150
≤ 350
≤ 500
≤ 750
Table 5-1 - Support characteristics
Note: The thickness of the support must be calculated basing on requirements resumed in
Table 5-1 - Support characteristics.
Make sure that the minimal mass [M] requirement is respected.
Screws detail
Asycube
50
80
240
380
530
Qty. of screws
2
4
4
4
4
Screw Ø
M5
M5
M6
M8
M8
Table 5-2 - Screws detail
