Asyril Asycube 530 Integration Guidelines

Asycube mechanical integration guidelines
000.103.437
Version : A
11/14

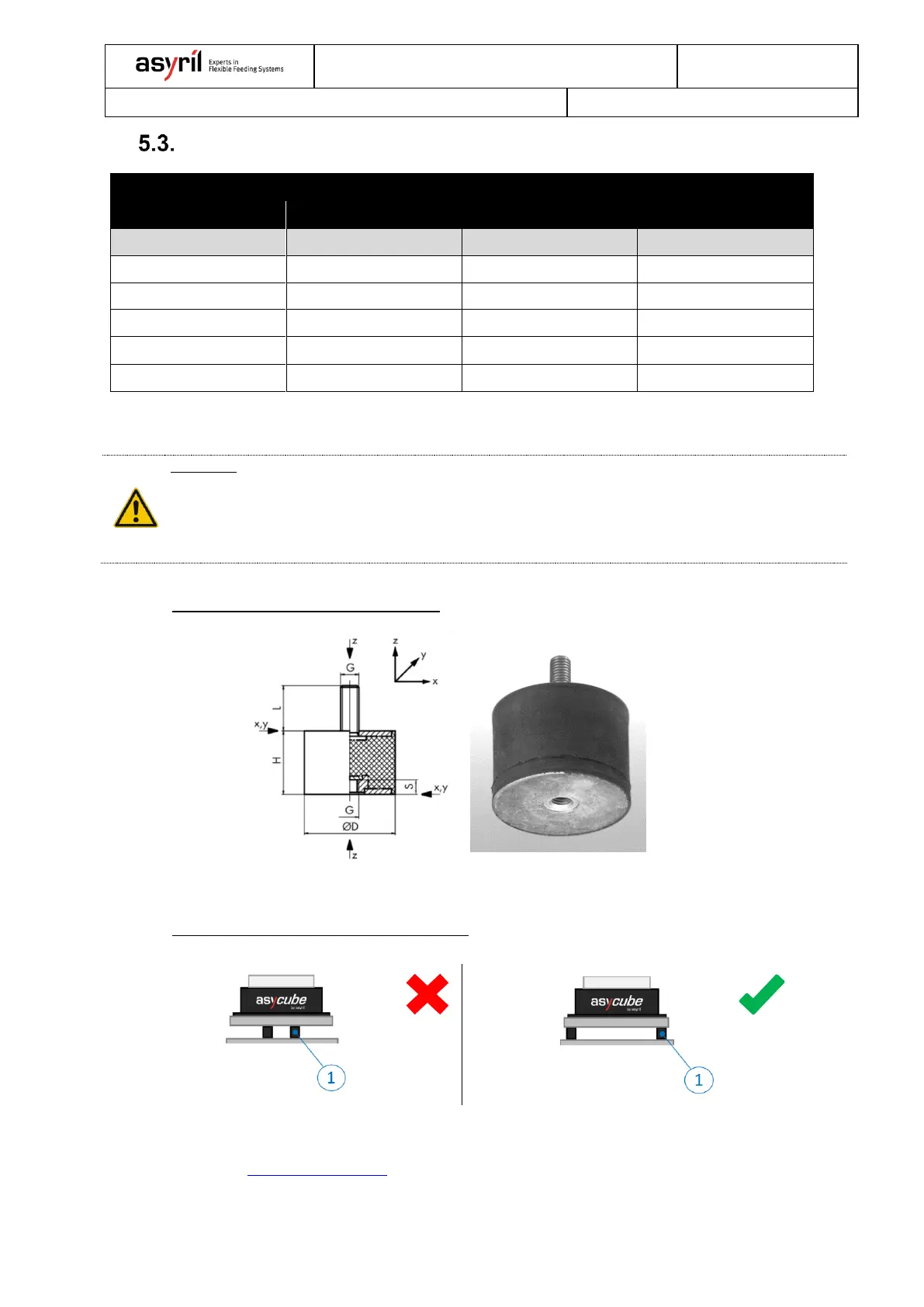

Vibration isolators details
① – Vibration isolator (round buffer; DIN 95363)
Asycube
240
380
530
APSO Ref. *
1
12.2034.0103
12.2034.0293
12.2034.0353
ØD – [mm]
16
40
50
H – [mm]
20
40
50
c
z
– [N/mm]
50
180
190
F
z
– [N]
120
690
1000
Qty. – [-]
4
4
4
Table 5-3 – Vibration isolators details
Attention:
Make sure that total mass of Asycube, support and components will not exceed the max. allowed
compressive force of the round buffers [F
z
]. If this scenario occurs new round buffers must be
selected.
Vibration isolator (round buffer) details:
Vibration isolator (round buffer) positioning:
----------------------------------------------------------------------------------------------------------------------------------------
*
1
Angst + Pfister - www.apsoparts.com – (section: Antivibration Technology; APSOvib)
