Asyril Asycube 530 Integration Guidelines

Asycube mechanical integration guidelines
000.103.437
Version : A
7/14

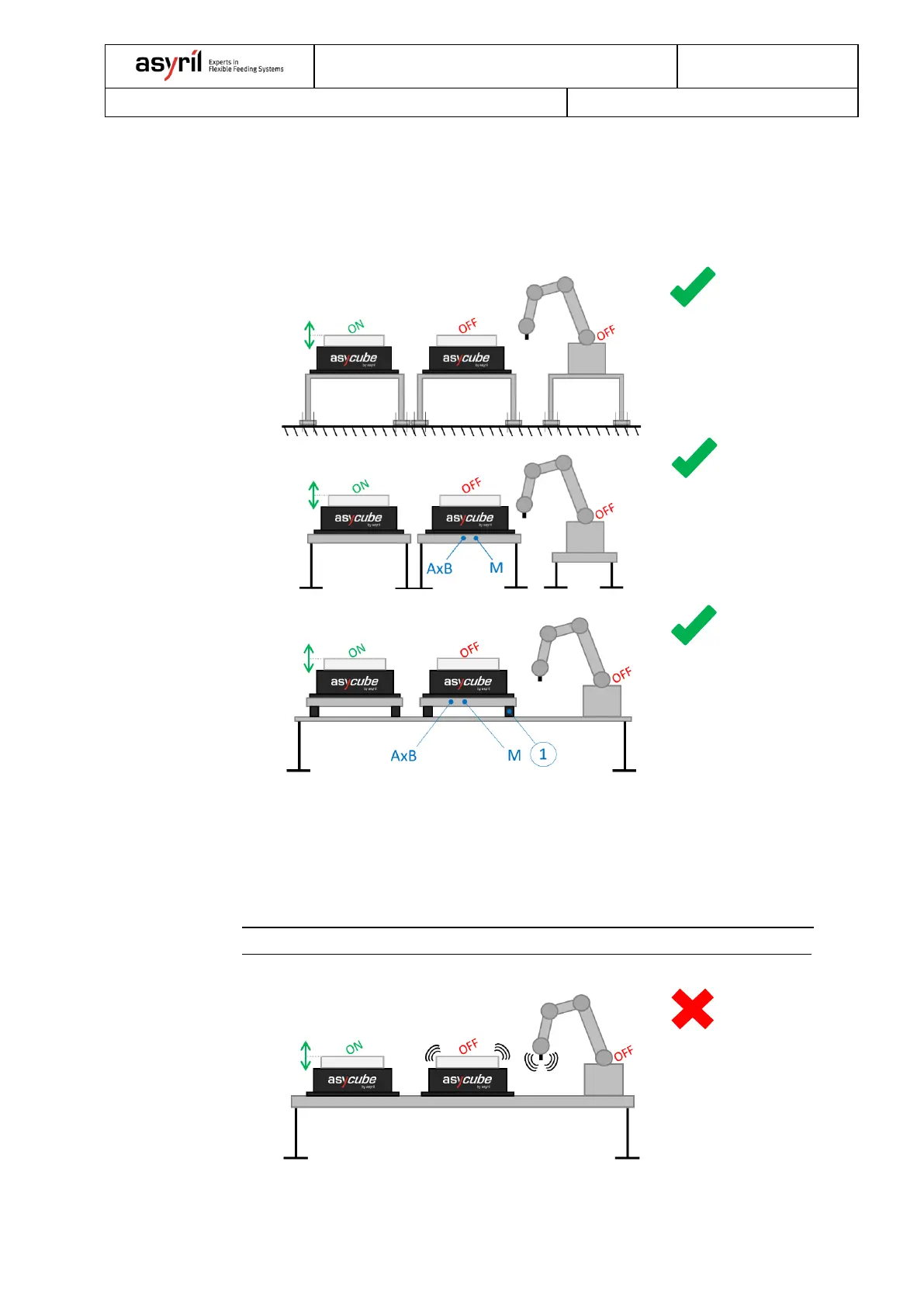

To avoid backfeeding of vibrations it is therefore recommended to provide specific support for
each device. When this solution is not applicable, vibration decoupling can be achieved through
anti-vibration technologies (e.g. vibration isolators [①]).
Note: vibration isolators solution is only applicable to Asycube(s) 240, 380 and 530.
The mass [M] and dimensions [AxB] of the support are summarized in: Table 5-1 - Support
characteristics.
The vibration isolator [①] details are summarized in: Table 5-3 – Vibration isolators details.
Note: Increase the mass of the base support to avoid the integration of the vibration
isolators does not ensure that the spread vibrations will be completely dampen-out.
