1.3 Additional options
1.3.1 Dosing system
The microprocessor-controlled dosing system is integrated into the unit.
This dosing facility for the application of diamond suspensions and lubricant is fitted with:
» programmable dosing interval,
» settable dosing time (pump time),
» 3 separate units 1 x lubricant, 4 x suspension and 1 x end-polishing suspension,
» exact droplet dosing (uncontrolled dripping is avoided through return suction of residual liquid)
The dosing system is programmed via the control and offers a uniform and automated working sequence of the
polishing process through the 6 ports for suspension vessels i.e. lubricant. (please note here the all-round product
pallet of diamond suspensions from ATM)
1.3.2 Sedimentation container
The movable Aluminium sedimentation container for the settling of grinding abrasion consists of a two-chamber
system with overflow. An inlet sieve is hooked into the first chamber to collect larger grinding residues.
1.3.3 Abrasion measurement
Abrasion measurement enables you to grind-away the workpiece sample by a preselected amount.
Upon reaching the desired dimension, the grinding sequence is ended automatically.
Here we differentiate between grinding acc. to time and grinding acc. to abrasion.
1.4 Reference path
After switching on the machine, it first runs through a reference path. This involves taking the head all the way to the
top position. If there is no successful reference path, then the machine cannot be used.

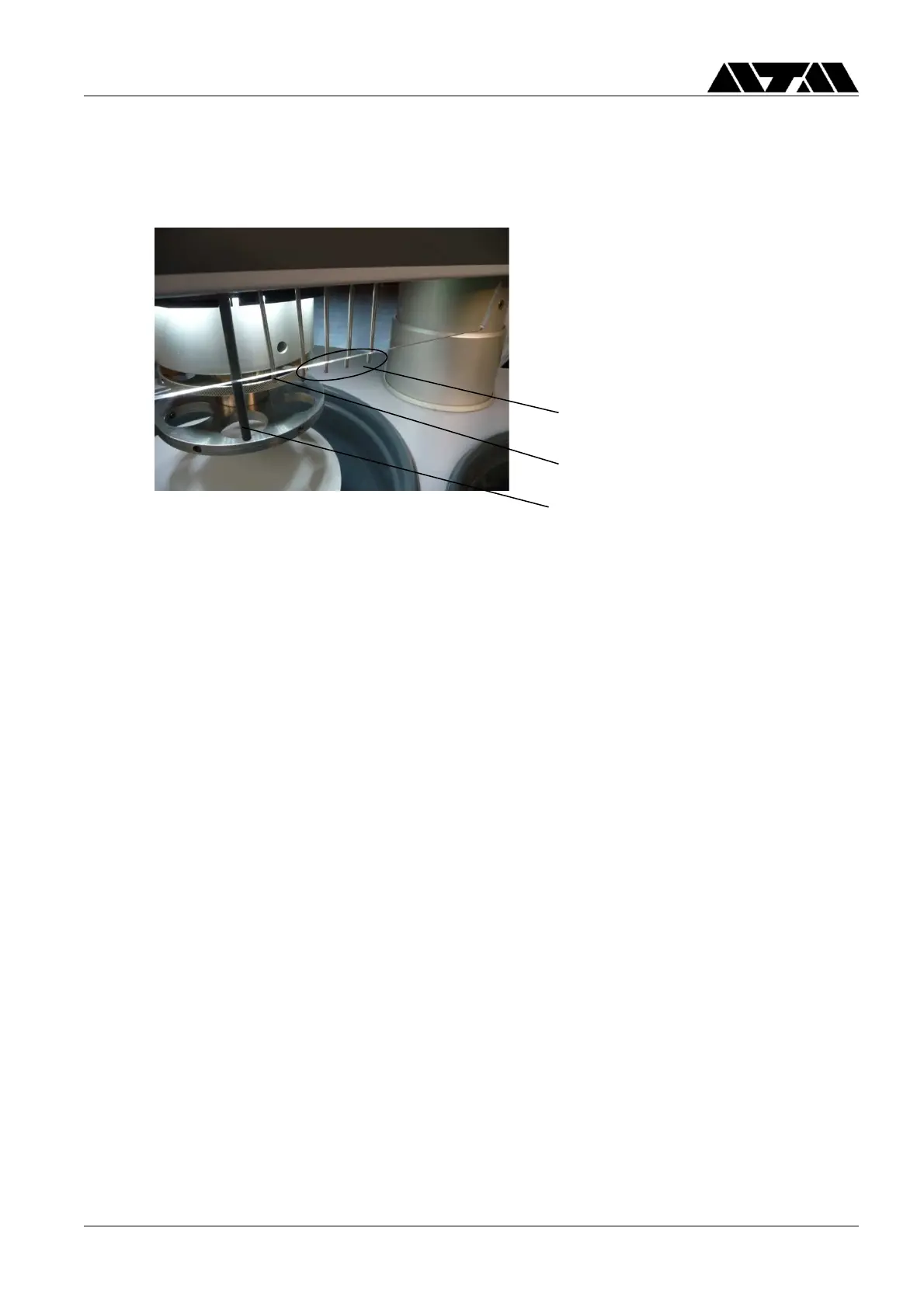

4 x suspension
End-polishing suspension
