GB 13
assembly (continued)

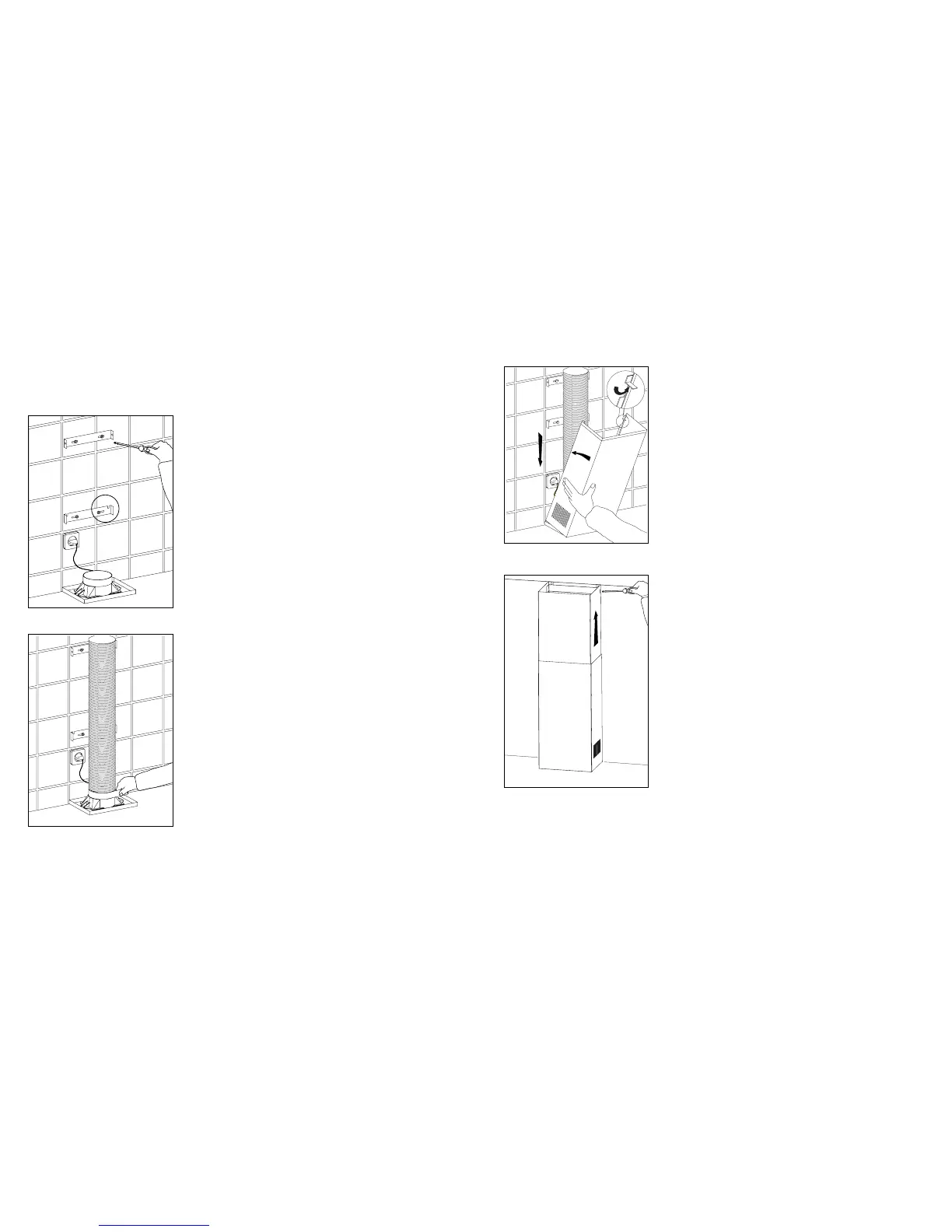

mount the telescopic duct
Fold the telescopic duct onto the underside of the bracket.
Make sure that the angle piece fits into the recess in the
bracket (see diagram).
Slide the upper telescopic duct upwards and screw it to the
side of the top bracket (see diagram).
GB 12GB 12
assembly (continued)
place extraction pipe
First put the plug for the extractor hood into the wall socket.
Screw the 2 brackets for the extraction pipe to the wall (see
diagram).
Please note: Make sure you place the right bracket in the
right place.
Slide the extraction pipe onto the pipe connection of the
extractor hood. Make sure the connection is airtight. Affix
tape around the connection of the extraction pipe to the
extractor hood (see diagram).
