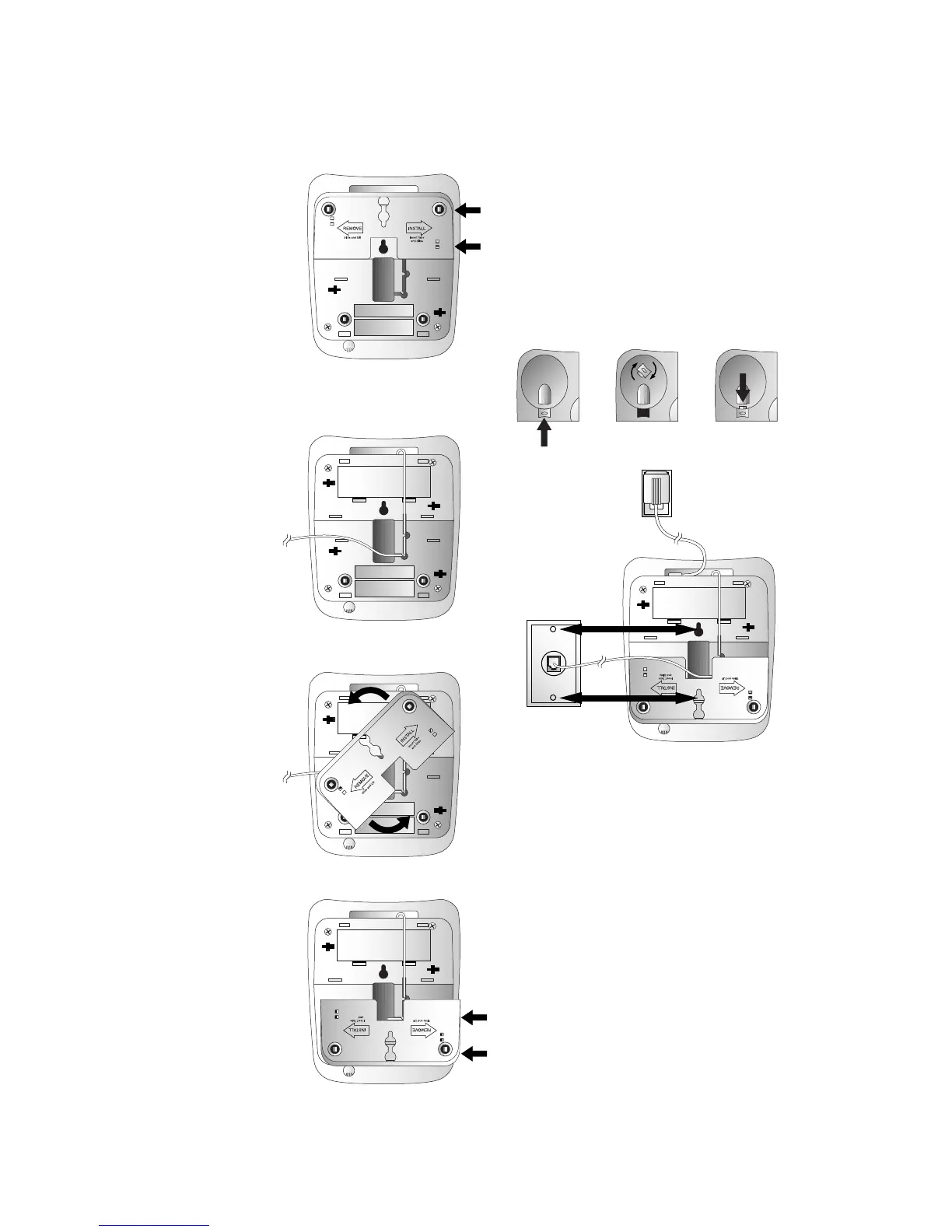

Wall Installation
1 Remove
the base.
Slide the base
sideways as
shown by
the REMOVE
arrow.
2 Install the batteries as shown
in Step 2 under Table/Desk
Installation.
3 Connect the
short line
cord to the
telephone.
Plug the short
line cord
into the
LINE jack
on the back
of the set. Feed
the cord through
the channel on the bottom of the set.
4 Reinstall
the base.
Turn the base
so that the
larger end
is toward
the bottom
of the
telephone.
Insert the base
tabs into the
slots. Then
slide sideways
in the
direction
of the
INSTALL
arrow to lock
the base onto
the phone.
INSTALLATION
2
figure 1 figure 2 figure 3
5 Reverse the handset tab.
To mount the telephone on a wall, you
must reverse the handset tab. This tab
holds the handset when you hang up.
Hold down the switchhook, and slide
the tab up and out of its slot (figure 1).
Turn the tab so that the end with the
“hook” is up (figure 2). Then insert
the tab back into its slot (figure 3).
6 Connect the
line cord to
the modular
jack and
mount the
phone onto
the wall jack.
Plug the free end of the line cord into
a modular wall jack. Make sure the
cord snaps firmly into place. Place the
phone on the wall jack mounting studs
and pull down until it is held securely.
7 Follow Steps 6–8 under Table/
Desk Installation.
To Next Page
