Atari 1010 Service Manual

-33 ms
Speed
Adjustment
1010S 560 mv min
1010C 660 mv min
Head Alignment

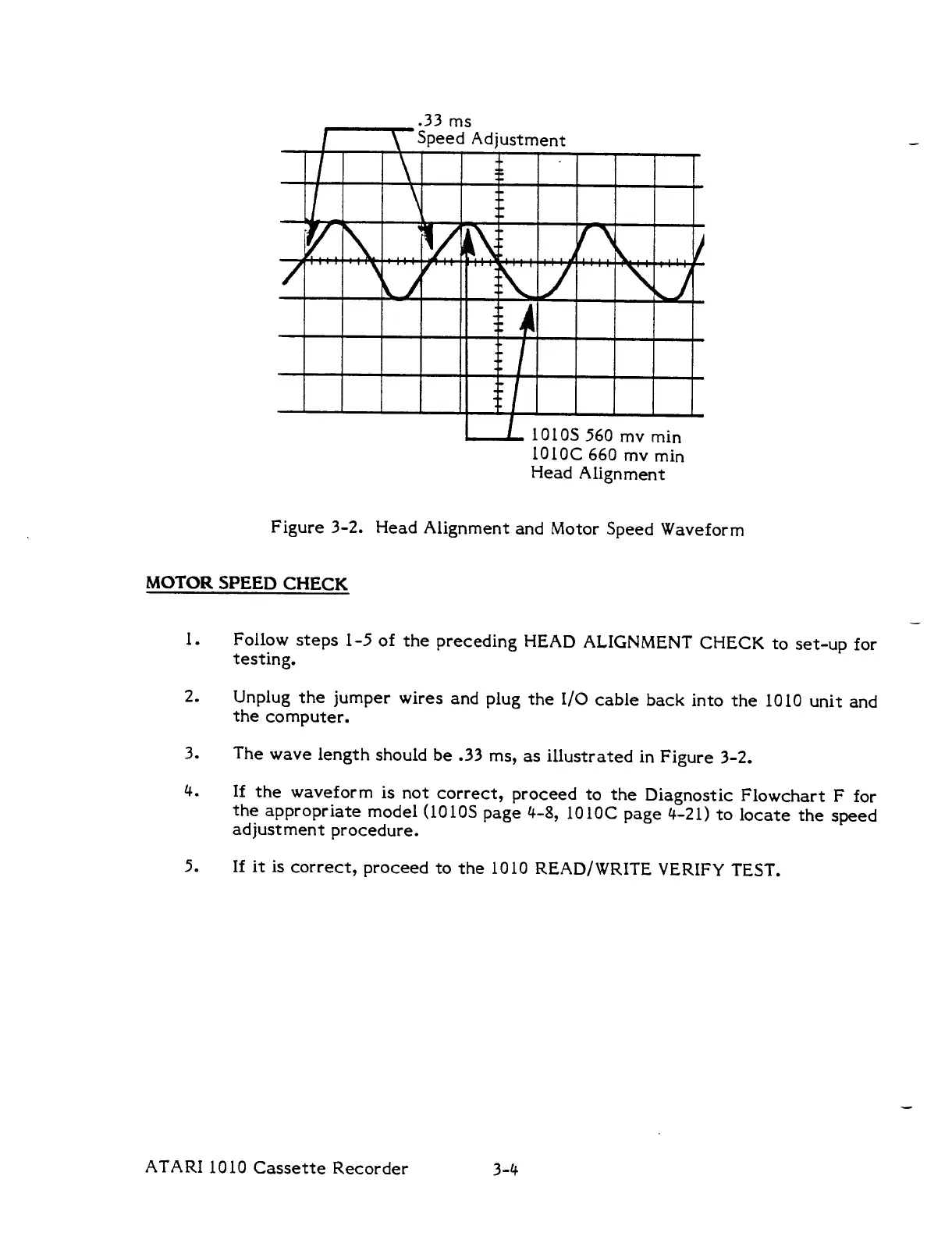

Figure
3-2.
Head
Alignment
and
Motor
Speed
Waveform
MOTOR SPEED CHECK
l.
Follow
steps
1-5
of
the
preceding
HEAD
ALIGNMENT
CHECK
to
set-up
for
testing.
2s
Unplug
the
jumper
wires
and
plug
the
I/O
cable
back
into
the
1010
unit
and
the
computer.
3.
The
wave
length
should
be
.33
ms,
as
illustrated
in
Figure
3-2.
4,
If
the
waveform
is
not
correct,
proceed
to
the
Diagnostic
Flowchart
F
for
the
appropriate
model
(1010S
page
4-8,
1010C
page
4-21)
to
locate
the
speed
adjustment procedure.
5.
If
it
is
correct,
proceed
to
the
1010
READ/WRITE
VERIFY
TEST.
ATARI 1010 Cassette Recorder 3-4
