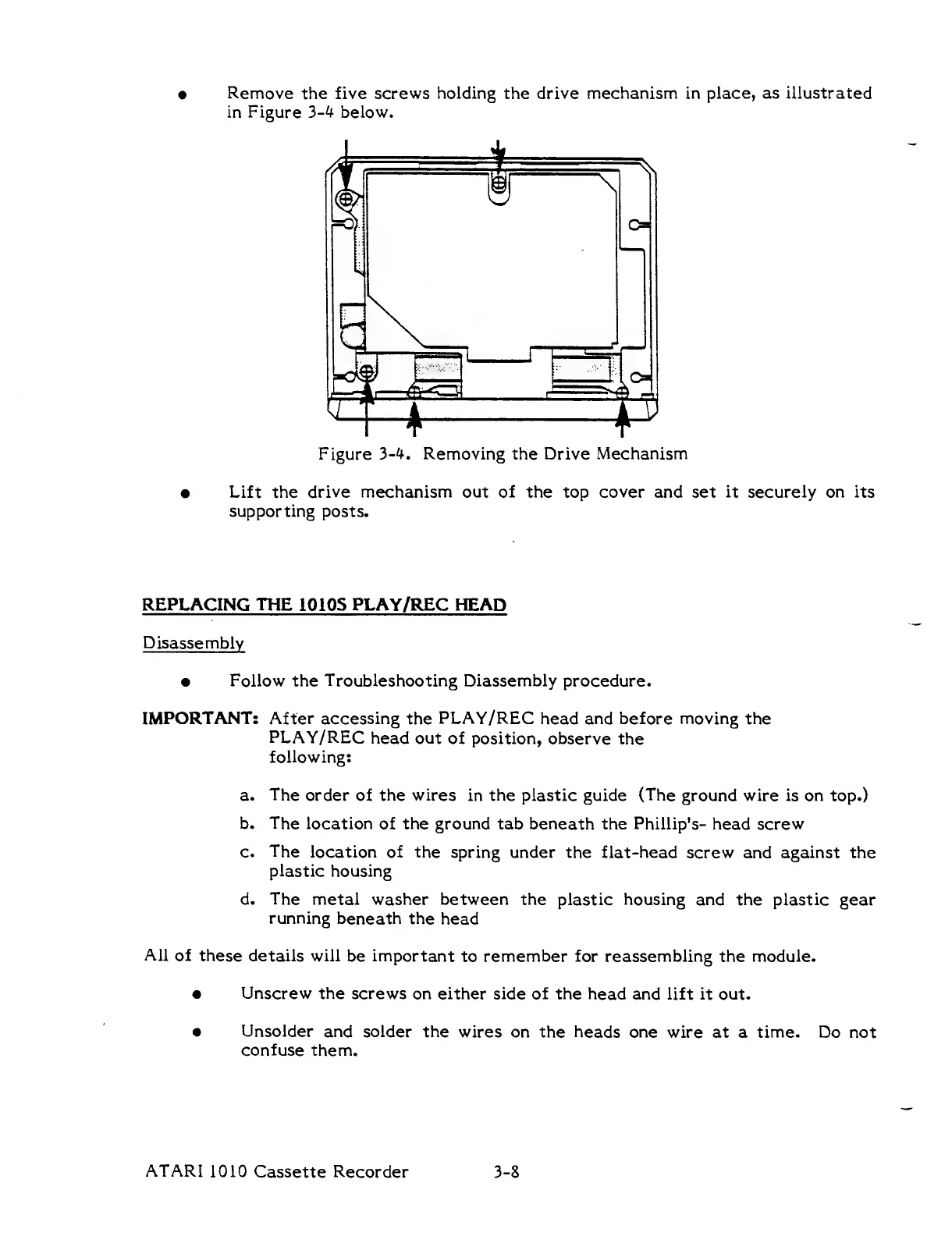

e

Remove

the

five

screws

holding

the

drive

mechanism

in

place,

as

illustrated

in

Figure

3-4

below.

Figure

3-4.

Removing

the

Drive

Mechanism

e

Lift

the

drive

mechanism

out

of

the

top

cover

and

set

it

securely

on

its

supporting

posts.

REPLACING

THE

1010S

PLAY/REC

HEAD

Disassembly

e

Follow

the

Troubleshooting

Diassembly

procedure.

IMPORTANT:

After

accessing

the

PLAY/REC

head

and

before

moving

the

PLAY/REC

head

out

of

position,

observe

the

following:

a.

The

order

of

the

wires

in

the

plastic

guide

(The

ground

wire

is

on

top.)

b.

The

location

of

the

ground

tab

beneath

the

Phillip's-

head

screw

c.

The

location

of

the

spring

under

the

flat-head

screw

and

against

the

plastic

housing

d.

The

metal

washer

between

the

plastic

housing

and

the

plastic

gear

running

beneath

the

head

All

of

these

details

will

be

important

to

remember

for

reassembling

the

module.

e

Unscrew

the

screws

on

either

side

of

the

head

and

lift

it

out.

e

Unsolder

and

solder

the

wires

on

the

heads

one

wire

at

a

time.

Do

not

confuse

them.

ATARI

1010

Cassette

Recorder

3-8
