1010S DISASSEMBLY/ASSEMBLY
1010S TROUBLESHOOTING DISASSEMBLY
e
Turn
the
unit
upside-down
and
remove
the
four
screws
holding
the
bottom
cover in
place.
e Remove the bottom cover.
e Remove the shield screw and the shield (see Figure 3-3).
e Remove the two screws holding the PCB in place (see Figure 3-3). Do not
lift
the
PCB
off
yet.
Notes
The
longer
screw
with
the
larger
thread
bit
must
be
returned
to
the
plastic
posthole.
PCB Screws
Shield
- Shield Screw

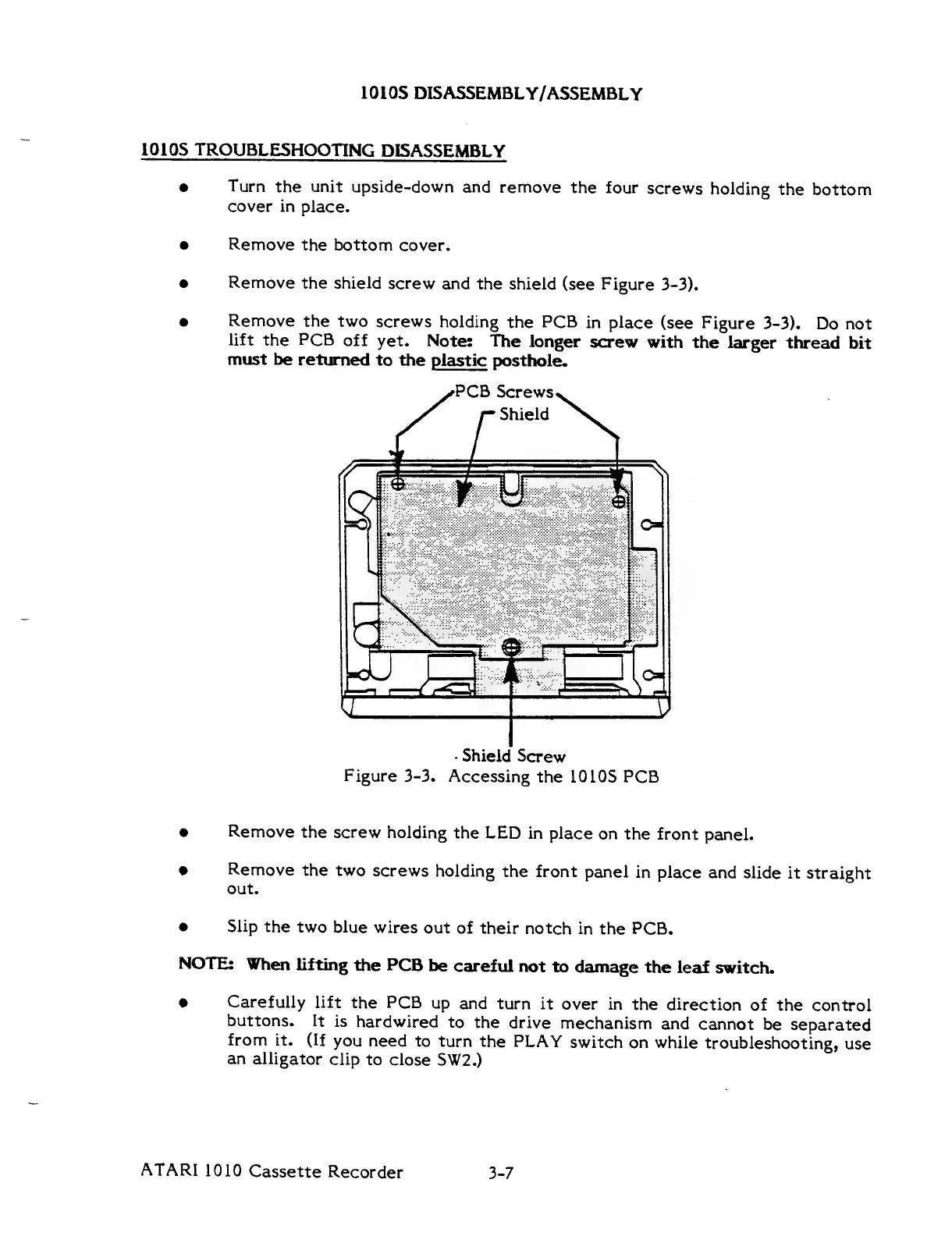

Figure 3-3. Accessing the 1010S PCB
e Remove the screw holding the LED in place on the front panel.
e
Remove
the
two
screws
holding
the
front
panel
in
place
and
slide
it
straight
out.
e Slip the two blue wires out of their notch in the PCB.
NOTE:
When
lifting
the
PCB
be
careful
not
to
damage
the
leaf
switch.
e
Carefully
lift
the
PCB
up
and
turn
it
over
in
the
direction
of
the
contro!
buttons.
It
is
hardwired
to
the
drive
mechanism
and
cannot
be
separated
from
it.
(If
you
need
to
turn
the
PLAY
switch
on
while
troubleshooting,
use
an
alligator
clip
to
close
SW2.)
ATARI
1010
Cassette
Recorder
3-7
