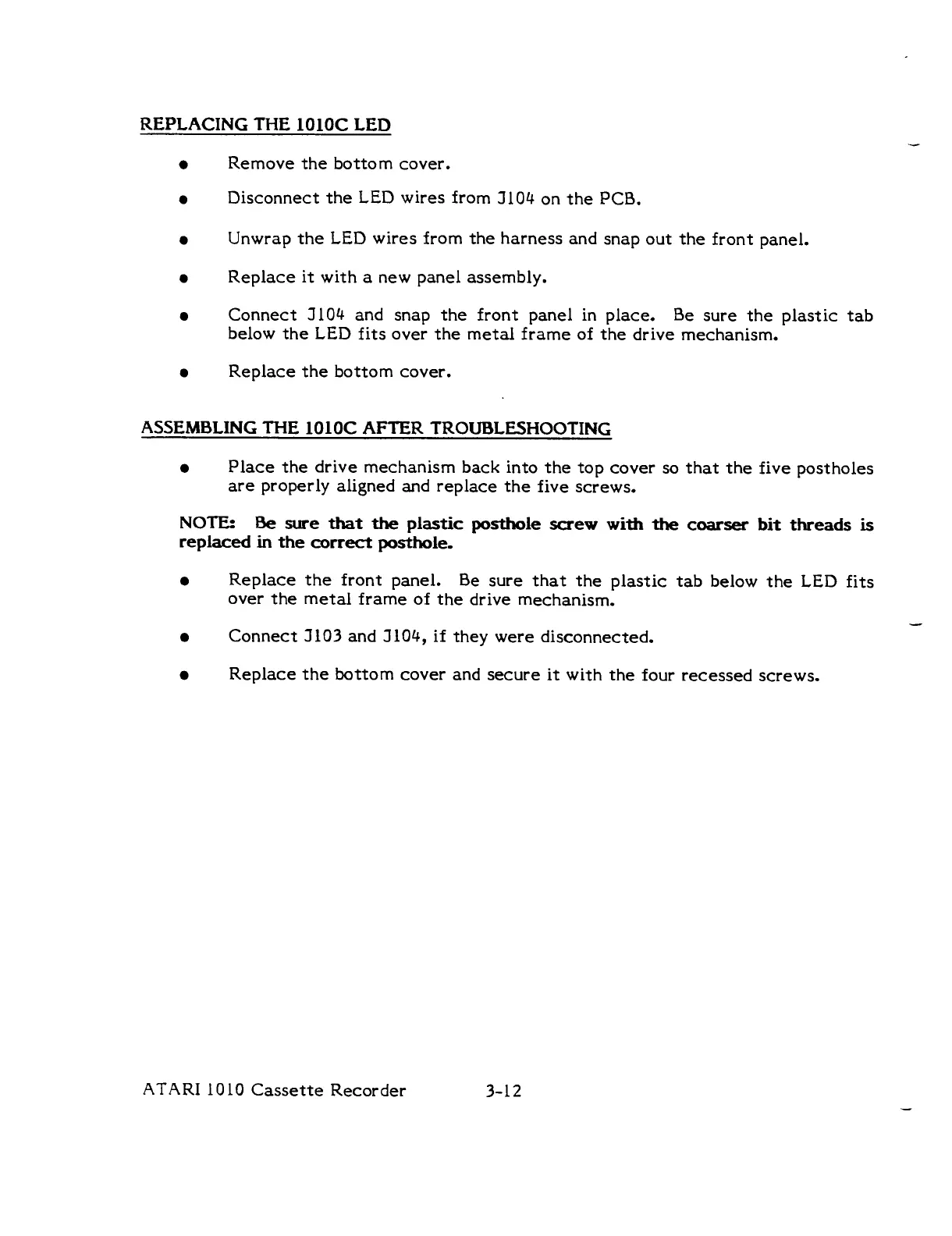

REPLACING THE 1010C LED
r Remove the bottom cover.
r) Disconnect the LED wires from J104 on the PCB.
e Unwrap the LED wires from the harness and snap out the front panel.
@ Replace it with a new panel assembly.
e Connect J104 and snap the front panel in place. Be sure the plastic tab
below the LED fits over the metal frame of the drive mechanism.
e Replace the bottom cover.
ASSEMBLING THE 1010C AFTER TROUBLESHOOTING
e Place the drive mechanism back into the top cover so that the five postholes
are properly aligned and replace the five screws.
NOTE: Be sure that the plastic posthole screw with the coarser bit threads is
replaced in the correct posthole.
e Replace the front panel. Be sure that the plastic tab below the LED fits
over the metal frame of the drive mechanism.
e Connect J103 and J104, if they were disconnected.
e Replace the bottom cover and secure it with the four recessed screws.
ATARI 1010 Cassette Recorder 3-12
