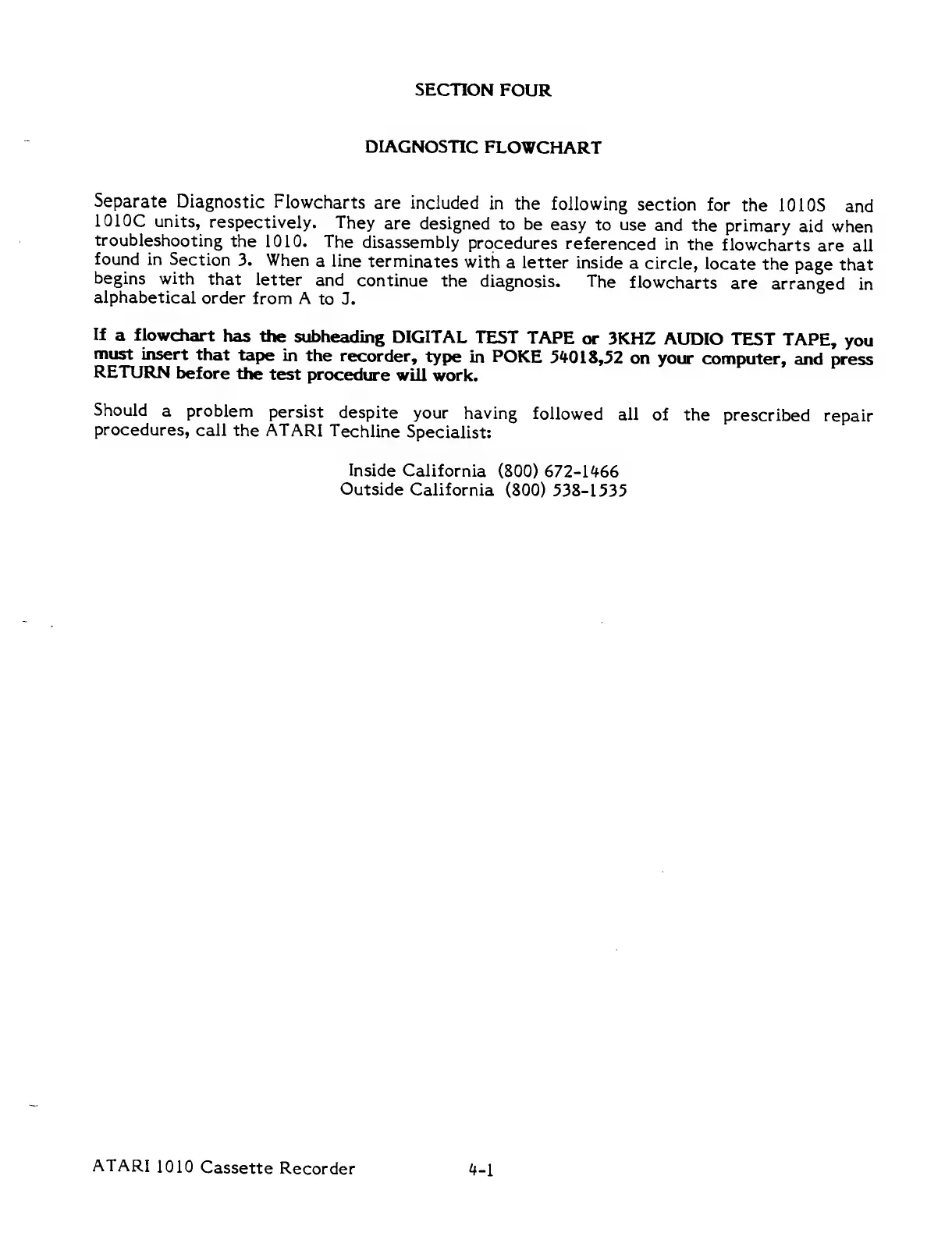

Atari 1010

SECTION FOUR
DIAGNOSTIC FLOWCHART
Separate
Diagnostic
Flowcharts
are
included
in
the
following
section
for
the
1010S
and
1010C
units,
respectively.
They
are
designed
to
be
easy
to
use
and
the
primary
aid
when
troubleshooting
the
1010.
The
disassembly
procedures
referenced
in
the
flowcharts
are
all
found
in
Section
3.
When
a
line
terminates
with
a
letter inside
a
circle,
locate
the
page
that
begins
with
that
letter
and
continue
the
diagnosis.
The
flowcharts
are
arranged
in
alphabetical
order
from
A
to
J.
If
a
flowchart
has
the
subheading
DIGITAL
TEST
TAPE
or
3KHZ
AUDIO
TEST
TAPE,
you
must
insert
that
tape
in
the
recorder,
type
in
POKE
54018,52
on
your
computer,
and
press
RETURN
before
the
test
procedure
will
work.
Should
a
problem
persist
despite
your
having
followed
all
of
the
prescribed
repair
procedures,
call
the
ATARI
Techline
Specialist:
Inside California (800) 672-1466
Outside California (800) 538-1535
ATARI
1010
Cassette
Recorder
4]
