Atari 1010

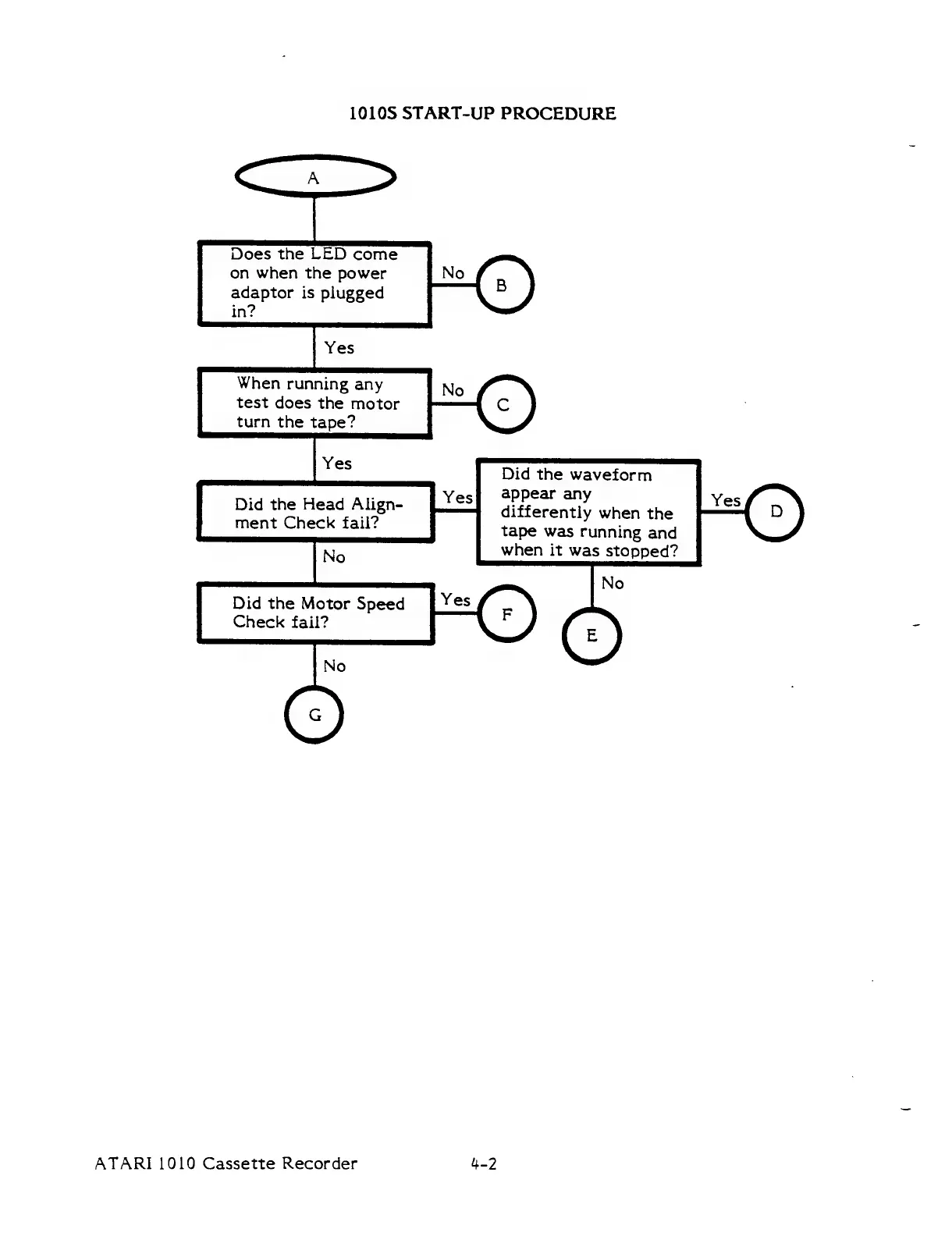

1010S START-UP PROCEDURE
Does the LED come
on when the power
adaptor is plugged
in?
Yes
When running any No
test does the motor
“©
turn the tape?
Did the waveform
appear any
differently when the
tape was running and
when it was stopped?
Yes
Did the Head Align- [LY@S
ment Check fail?
No
No
Did the Motor Speed Yes
Check fail? &
No
Yes &
ATARI 1010 Cassette Recorder 4-2
