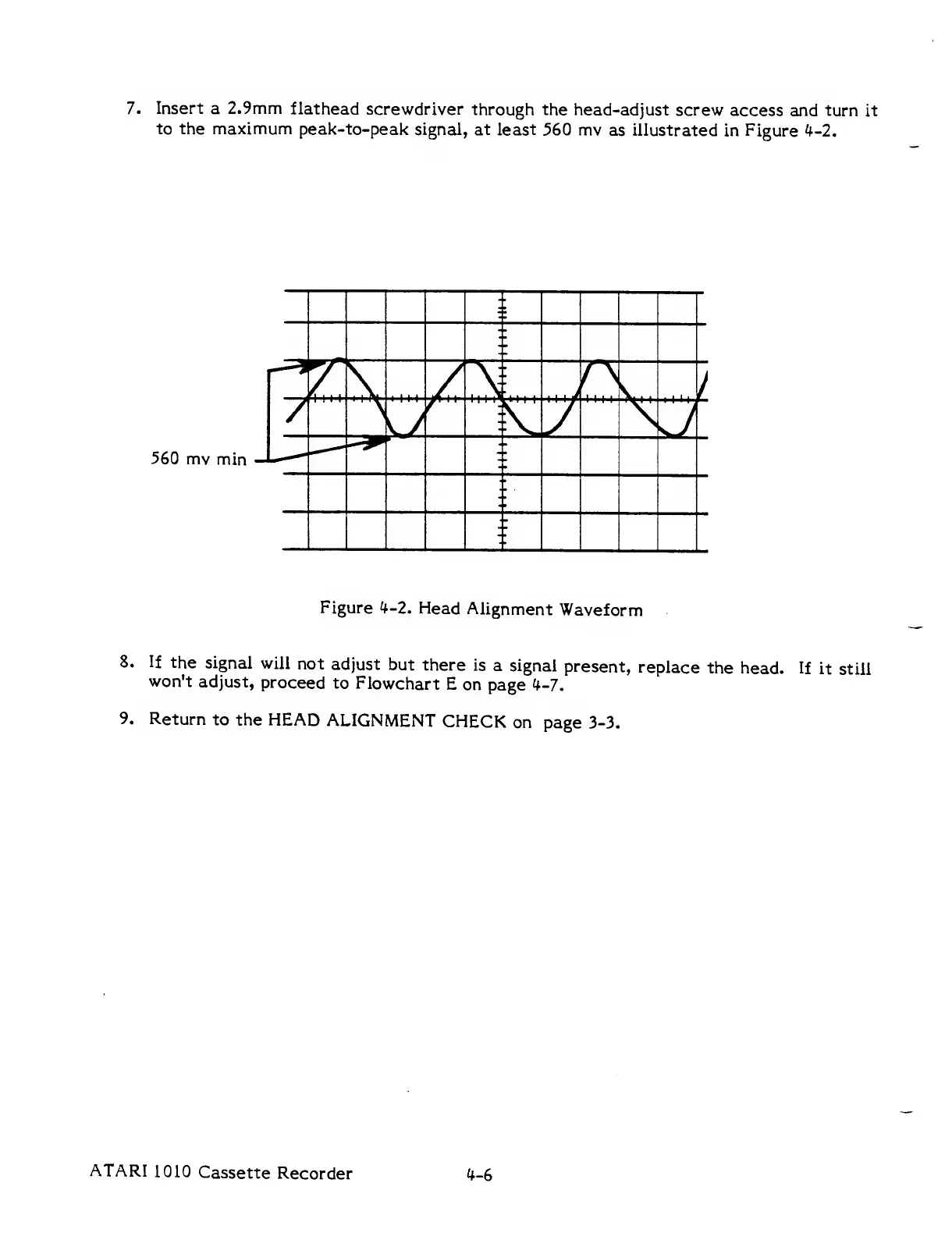

7. Insert a 2.9mm flathead screwdriver through the head-adjust screw access and turn it
to the maximum peak-to-peak signal, at least 560 mv as illustrated in Figure 4-2.
Peas the Seedy cea)
ie Se ee
ANRVAN SI AGM
PEAT RIT ING
Si OS
560 mv min
Figure 4-2. Head Alignment Waveform
8.
If
the
signal
will
not
adjust
but
there
is
a
signal
present,
replace
the
head.
If it
still
won't
adjust,
proceed
to
Flowchart
E
on
page
4-7.
9.
Return
to
the
HEAD
ALIGNMENT
CHECK
on
page
3-3.
ATARI
1010
Cassette
Recorder
4-6
