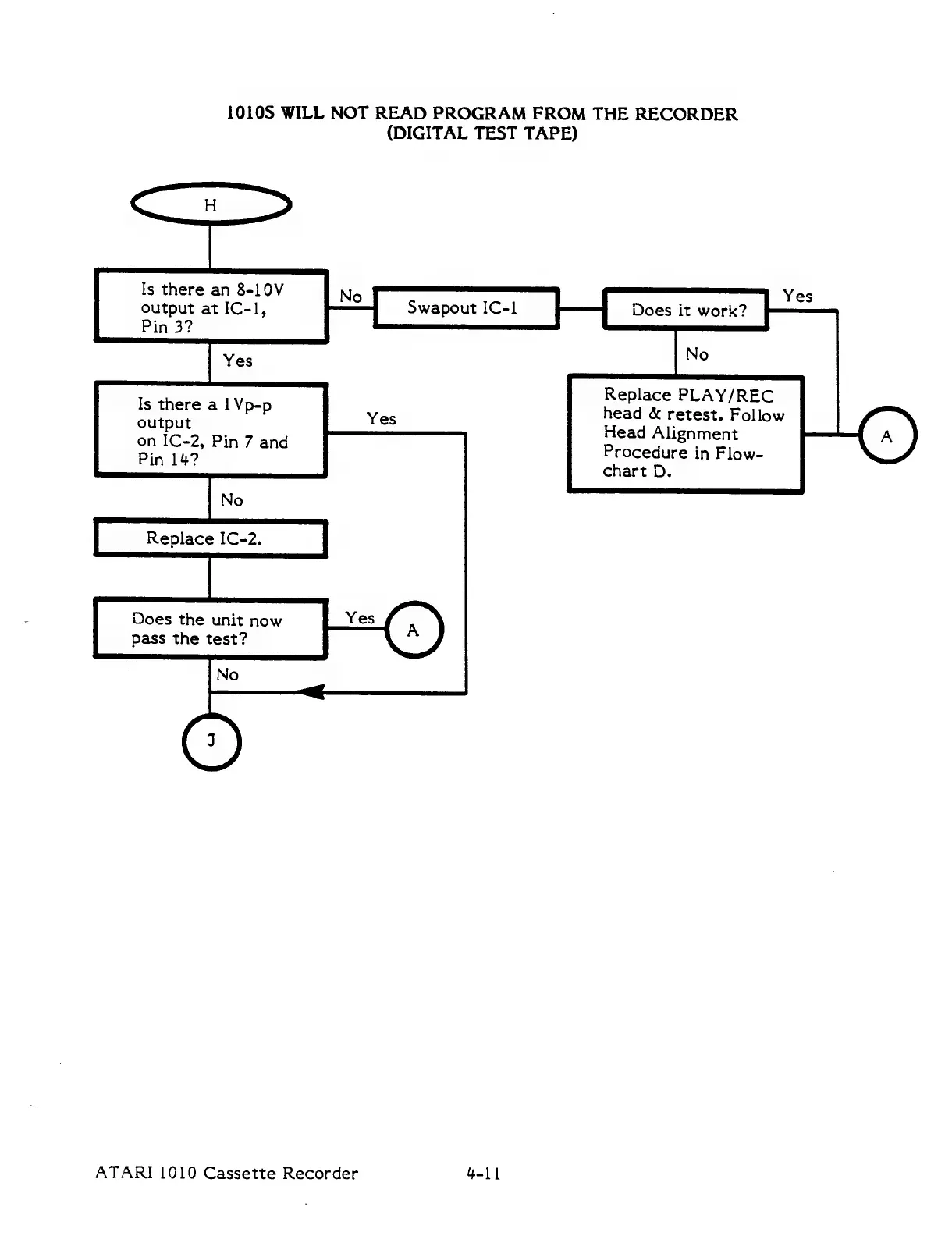

Atari 1010

1010S WILL NOT READ PROGRAM FROM THE RECORDER
(DIGITAL TEST TAPE)
Is there an 8-LOV
output at IC-1,
Pin 3?
Yes
Replace PLAY/REC
head
&
retest.
Follow
Head Alignment
Procedure
in
Flow-
chart D.
Is there a 1 Vp-p
output
on IC-2, Pin 7 and
Pin 14?
Replace IC-2.
Does the unit now
Pass the test?
ATARI 1010 Cassette Recorder 4-11
