Atari 1010

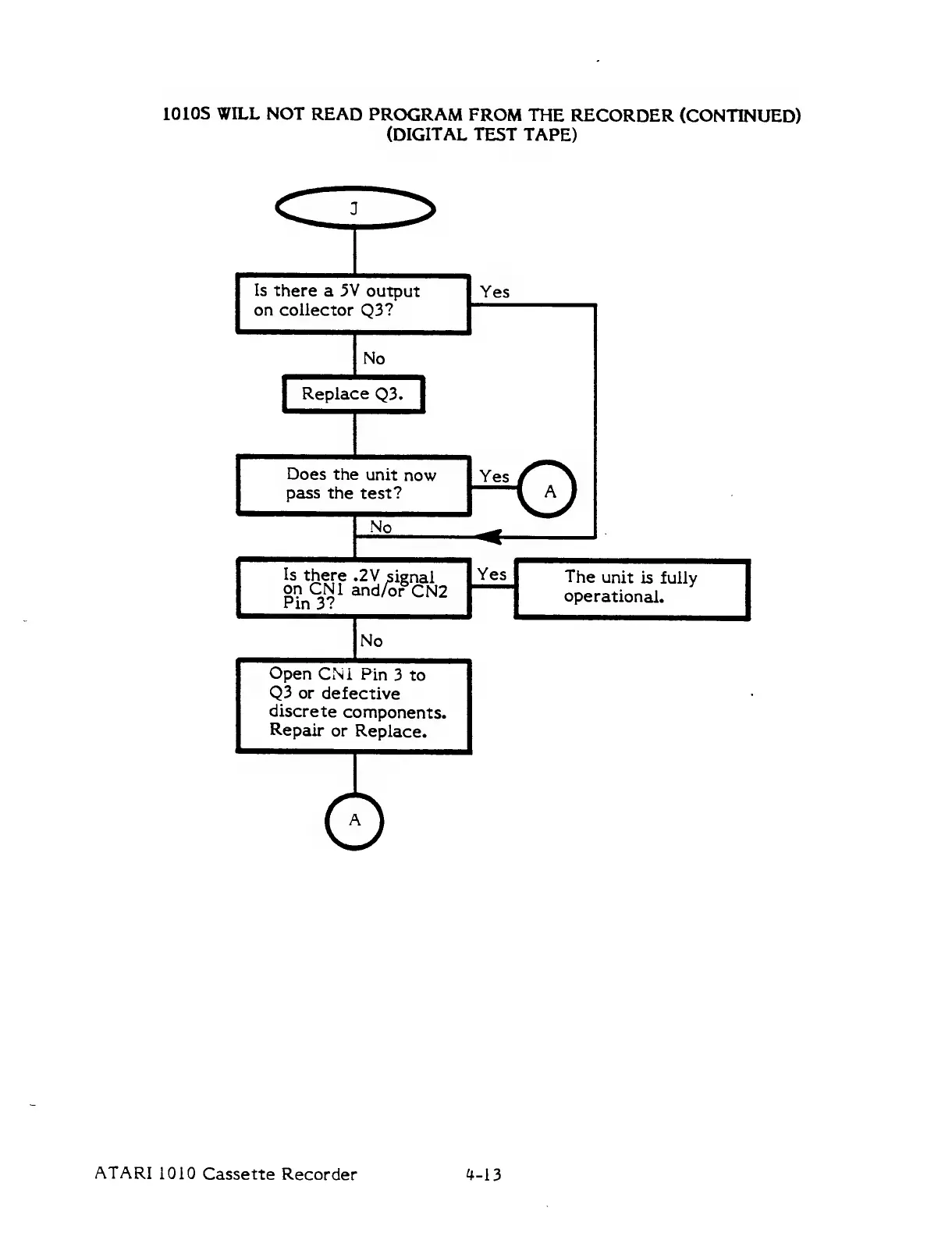

1010S
WILL
NOT
READ
PROGRAM
FROM
THE
RECORDER
(CONTINUED)
(DIGITAL
TEST
TAPE)
Is there a 5V output
on collector Q3?
Replace Q3.
Is there .2V signal
on
CNI
and/or
CN2
Pin 3?
The unit is fully
operational.
Open CNi Pin 3 to
Q3 or defective
discrete components.
Repair or Replace.
ATARI 1010 Cassette Recorder 4-13
