Atari 1010

Head-Adjust Screw
\- Speed-Adjust Screw
Access

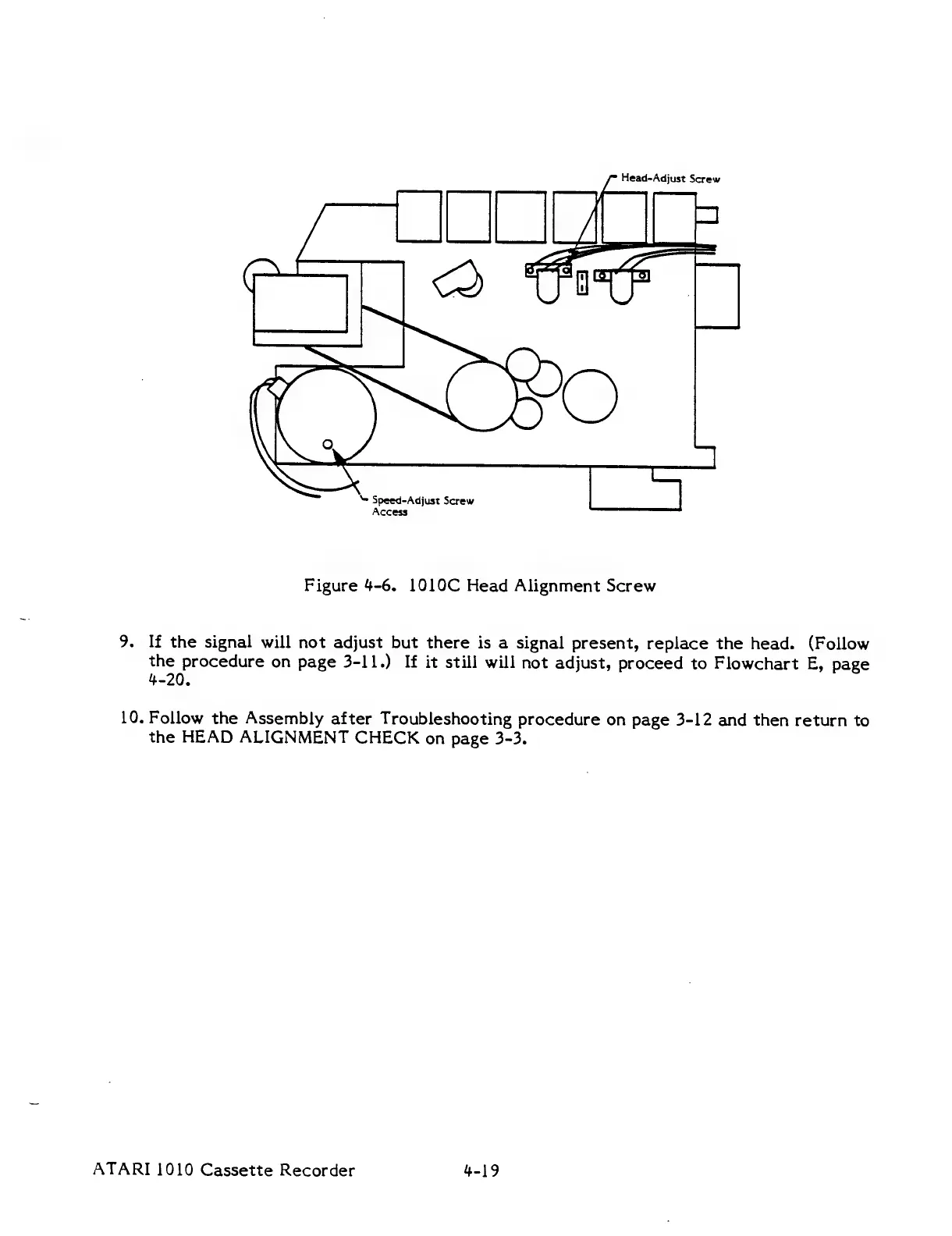

Figure 4-6. 1010C Head Alignment Screw
9. If the signal will not adjust but there is a signal present, replace the head. (Follow
the procedure on page 3-11.) If it still will not adjust, proceed to Flowchart E, page
4-20.
10.
Follow
the
Assembly
after
Troubleshooting
procedure
on
page
3-12
and
then
return
to
the HEAD
ALIGNMENT
CHECK
on
page
3-3.
ATARI 1010 Cassette Recorder 4-19
