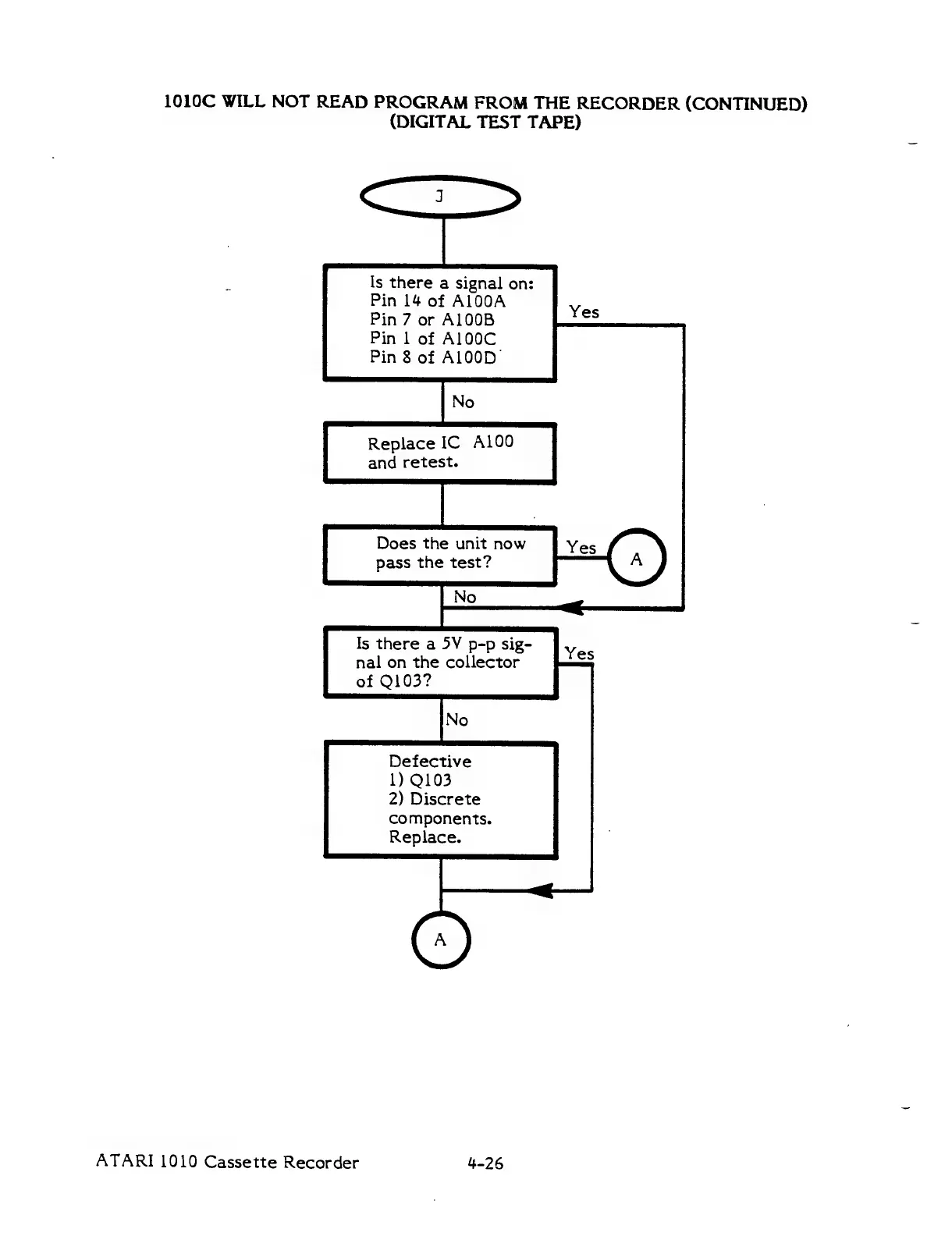

1010C

WILL

NOT

READ

PROGRAM

FROM

THE

RECORDER

(CONTINUED)

(DIGITAL

TEST

TAPE)

Is

there

a

signal

on:

Pin

14

of

ALOOA

Pin

7

or

Al100B

Pin

1

of

Al00C

Pin

8

of

A100D_

Yes

Replace

IC

A100

and

retest.

Does

the

unit

now

pass

the

test?

Is

there

a

5V

p-p

sig-

nal

on

the

collector

of

O103?

Defective

1)

Q103

2)

Discrete

components.

Replace.

ATARI

1010

Cassette

Recorder
