Atari 1010

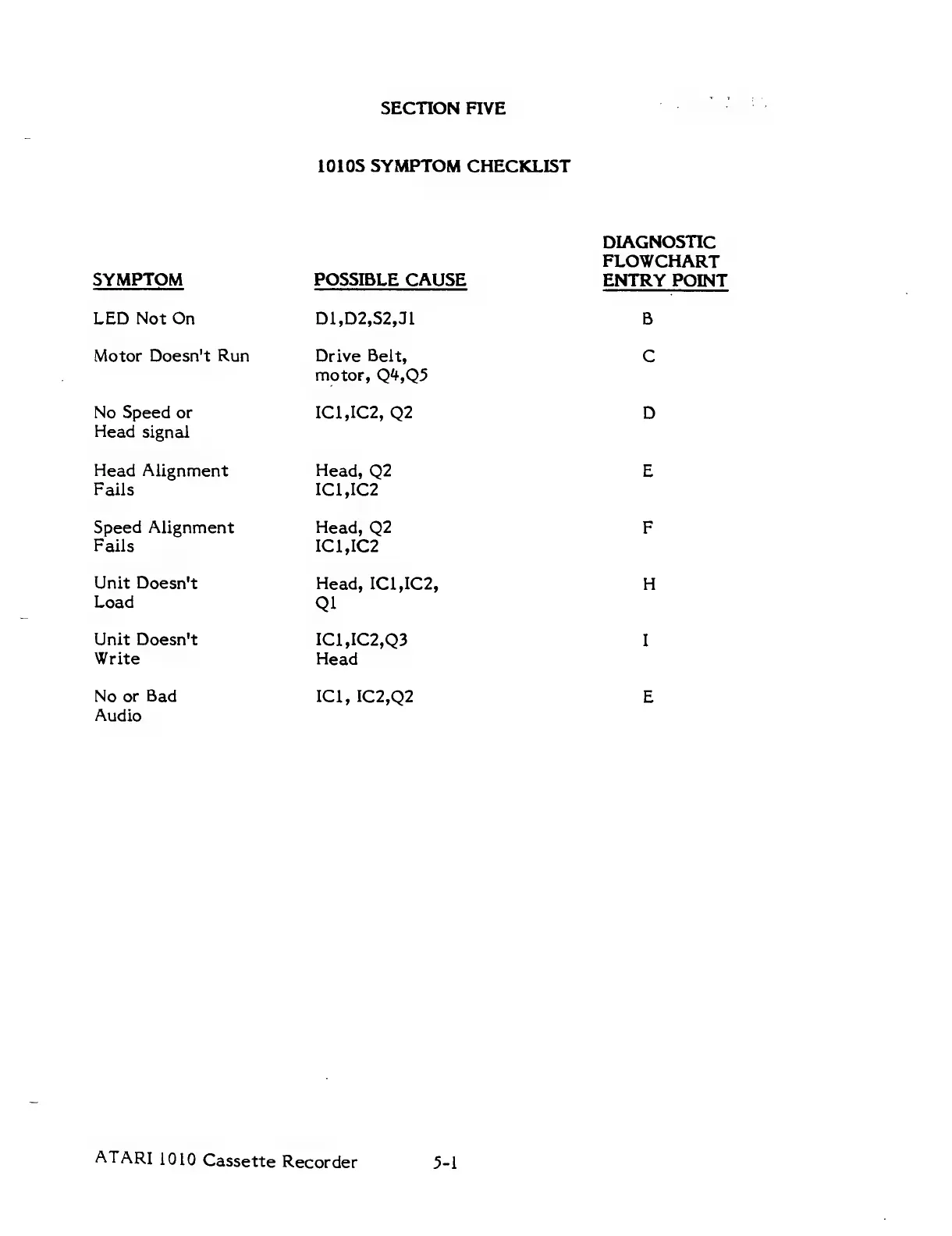

SECTION FIVE
1010S SYMPTOM CHECKLIST
DIAGNOSTIC
FLOWCHART
SYMPTOM POSSIBLE CAUSE ENTRY POINT
LED Not On D1,D2,82,J1 B
Motor Doesn't Run Drive Belt, Cc
motor, Q4,Q5
No Speed or IC1,1IC2, Q2 D
Head signal
Head Alignment Head, Q2 E
Fails IC1,IC2
Speed Alignment Head, Q2 F
Fails IC1,IC2
Unit Doesn't Head, ICI,IC2, H
Load Ql
Unit Doesn't IC1,1IC2,Q3 I
Write Head
No or Bad ICI, 1C2,Q2 E
Audio
ATARI
1010
Cassette
Recorder
5-1
