SYMPTOM
LED Not On
Motor Doesn't
Run
No Speed or
Head Signal
Head Alignment
Fails
Speed Alignment
Fails
Unit Doesn't
Load
Unit Doesn't
Write
No or
Bad Audio

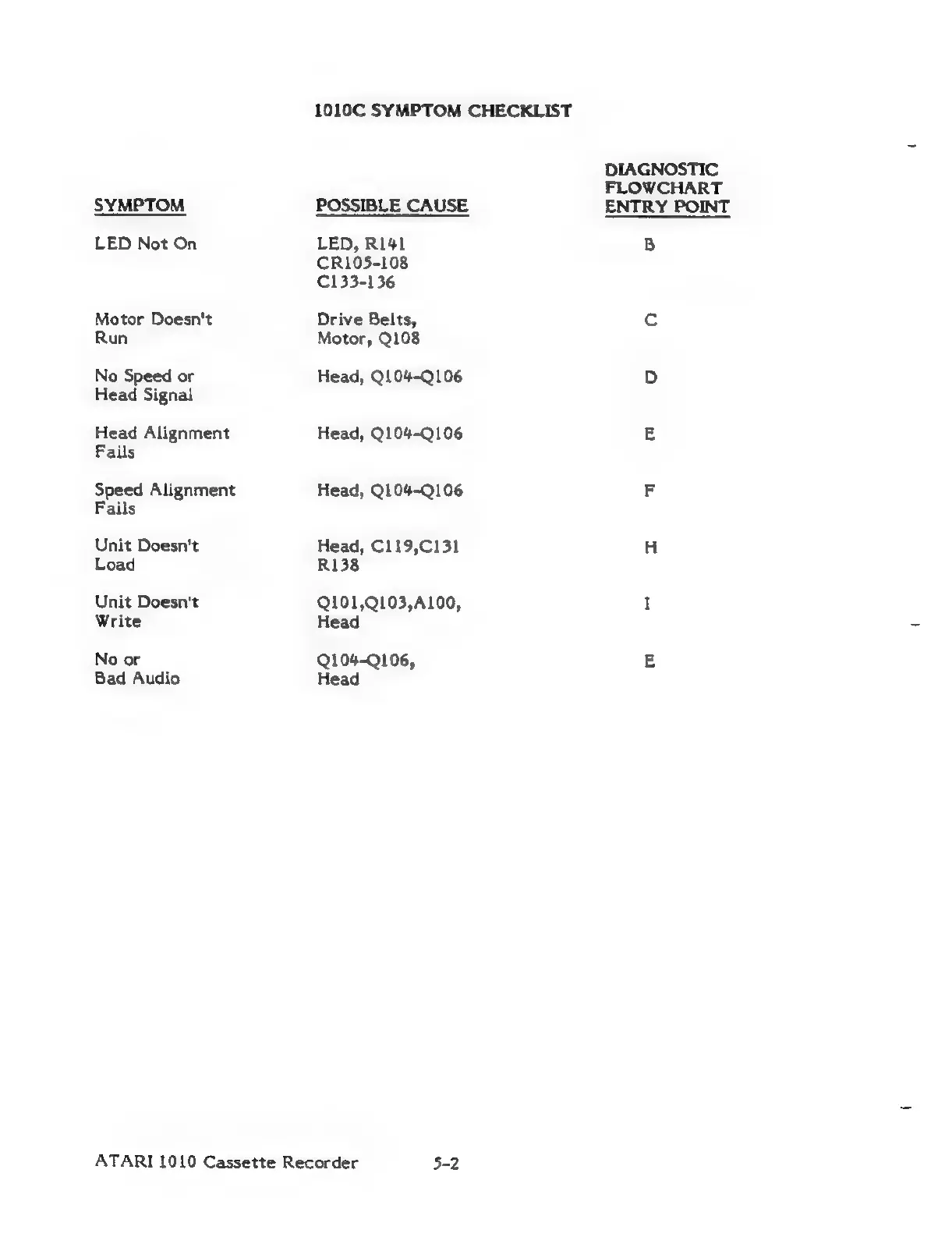

1010C SYMPTOM CHECKLIST
DIAGNOSTIC
FLOWCHART
POSSIBLE CAUSE ENTRY POINT
LED, R141 B
CR105-108
C133-136
Drive Belts, Cc
Motor, Q1L08
Head, QL04-Q106 D
Head, Q104-Q106 E
Head, Q104-Q106 F
Head, C119,C131 H
R138
Q101,Q103,A100, I
Head
Q104-Q106, E
Head
