4.4 Machine Installation
Before processing with assembly assure you have the following tools.
Component Weight:
When installing the machine, be very careful and pay attention to ensure that the player
can enjoy the game safely.
Inappropriate handling running counter to the cautionary matters can cause personal injury
or damage to the machine.
Step 1 Guide the Monitor assembly cables to the bottom cable hole of Support post.
Tighten 5 screws and washers on each side to secure the Support posts to Monitor
assembly.
Guide the Speaker cable through the hole indicated by triangle to the Monitor assembly
and connect on each side.
Note: Tighten the screw in the middle of the hole to ensure that it is secured well.

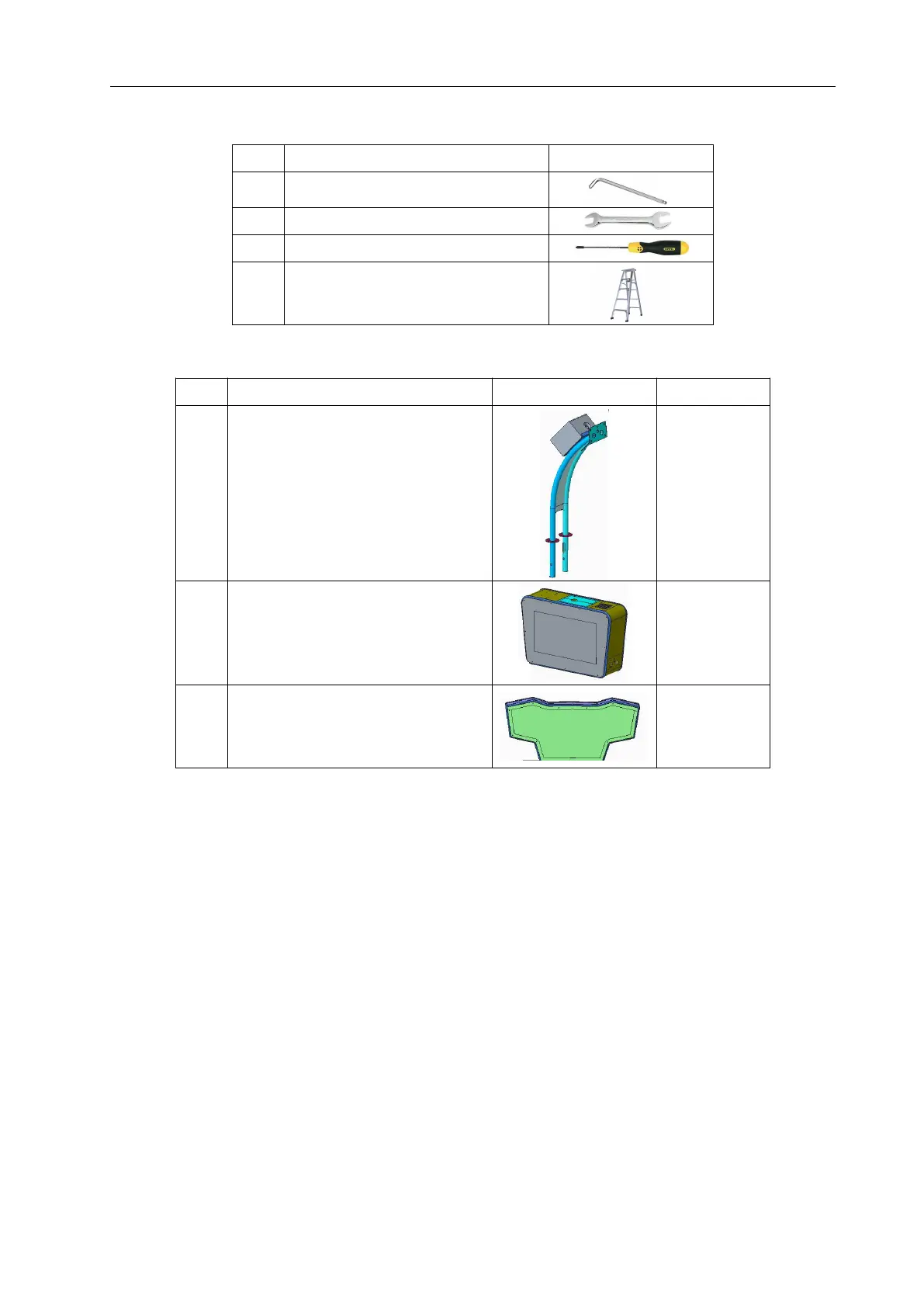

No.
Name
1
Allen wrench
2
Spanner
3
Phillips screwdriver
4
Ladder
No.
Name
Weight
1
Support post
(with a Speaker)
22lb
(10kg)
2
Monitor assembly
135lb
(61kg)
3
Rotational marquee
40lb
(18kg)
