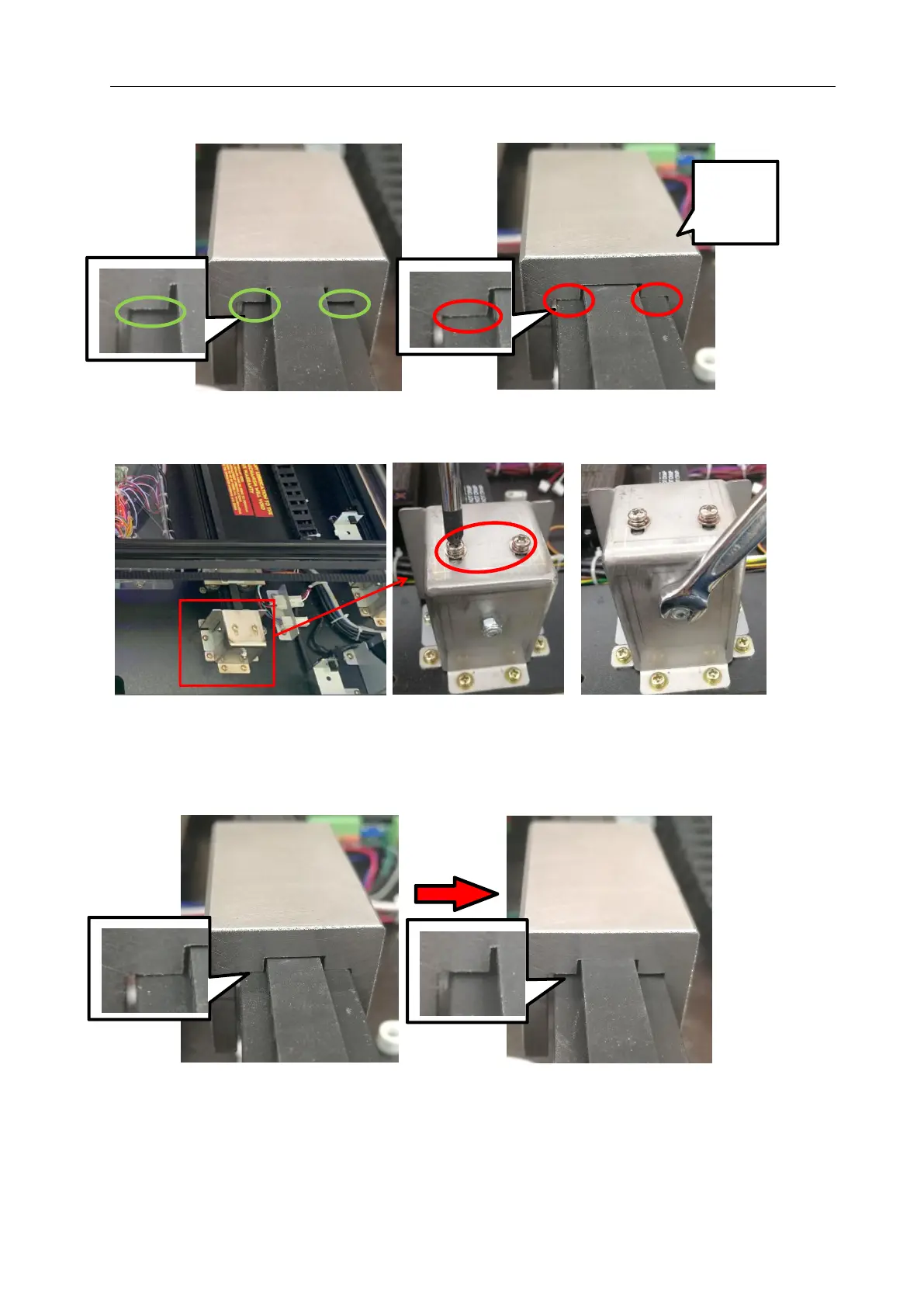

Step 3 Check if the Adjustment weight is slightly above the axle (within 0.04inch). If it is,
don’t adjust the belt; if it touches the axle, adjust the belt.
Step 4 To adjust: Utilize Phillips screwdriver to loosen the screws a bit. Utilize the wrench to
adjust the nut on the side.
Step 5 To adjust: Pay attention to the Adjustment weight when turning the wrench
clockwise. Stop turning the wrench when the Adjustment weight is slightly raised (within
0.04 inch above the axle). If the Adjustment weight is raised too much, the belt will be too
tight.
Step 6 To adjust: Remove the Adjustment weight and tighten the screws in Step 4.
The adjustment method for the 2 X axles and Paddle axles is the same.
