Atari PONG 4P User Manual

PONG 4P D&B Manual
11/18/2019
44

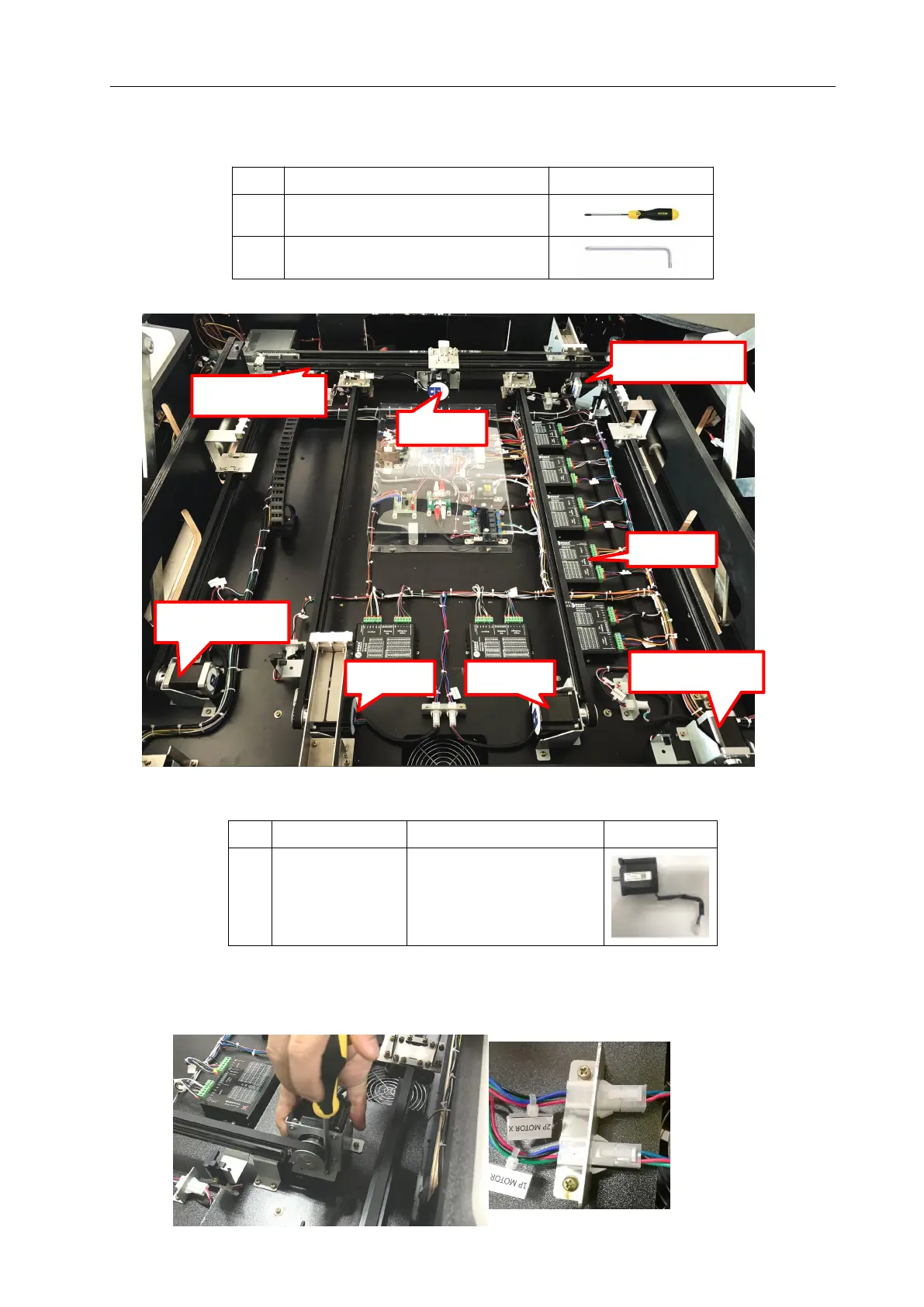

8.9 Motor & Driver Replacement
Before processing assure you have the following tools.
Step 1 Follow the 8.6 steps to access Movement Mechanism.
8.9.1 X Motor Replacement
Kit List:
Step 1 Locate one X motor. Utilize Phillips screwdriver to loosen 4 screws and unplug the
connector to remove the Motor assembly.
Note: It’s the same method on the 2 X motors.
No.
Name
1
Phillips screwdriver
2
Allen wrench
No.
Part No.
Name
1
P163-463-000
57MM Stepping motor
X motor
X motor
Y motor
Paddle motor
Paddle motor
Paddle motor
Paddle motor
Driver
