8.9.5 Lifting Motor Replacement
Before processing assure you have the following tools.
No.
Name
Pictures
1
Phillips screwdriver
2
Allen wrench
3
Spanner
4
Socket wrench
Note: To illustrate conveniently, pictures below have omitted the marquee part, no effect to
actual operation.

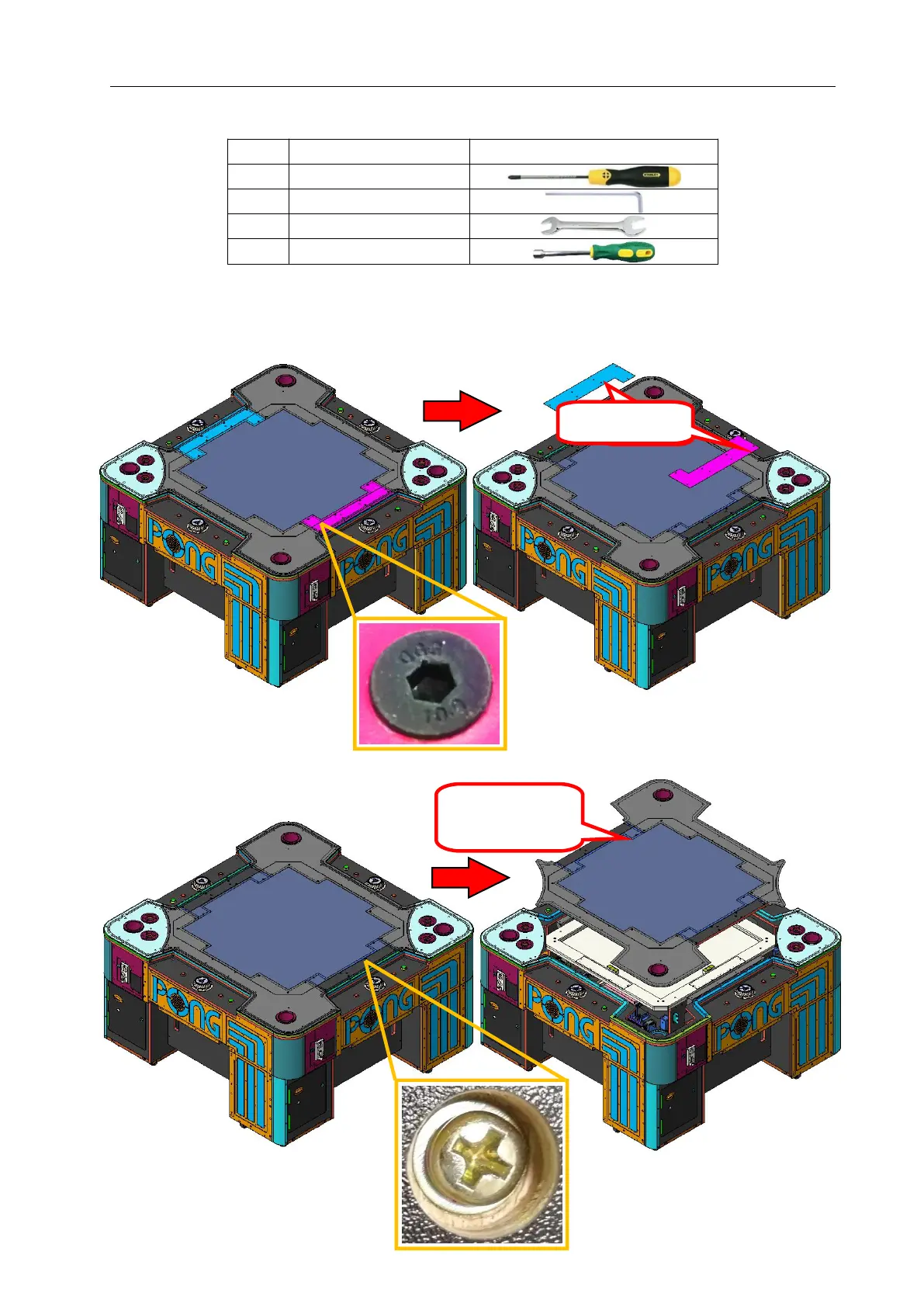

Step 1 Utilize Allen wrench to loosen screws on the Cover plate B, each plate has 8 screws,
and take out the plate. It is the same operation on both Red Player & Blue Player position.
Step 2 Utilize Phillips screwdriver to loosen 4 screws on the Platform assembly.
上盖板 B
Cover plate B
Platform
assembly
