Atari PONG 4P User Manual

PONG 4P D&B Manual
11/18/2019
78
7
6
8
2
4
5
10
11
12
13
14
9
3
15
16
1

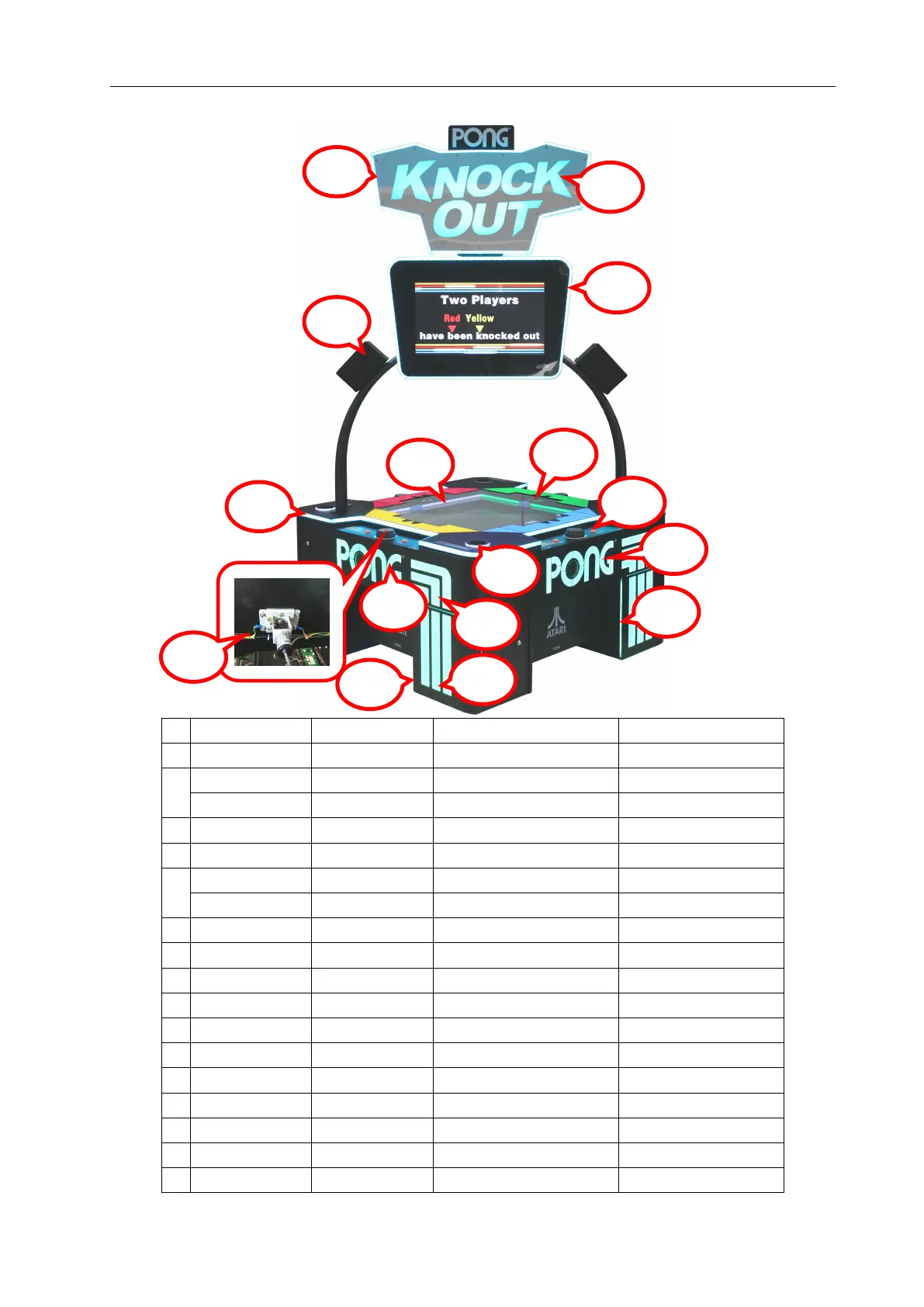

9.9 Electrical Components
No.
Part No.
Code No.
Name
Qty
1
P163-429-000
21504000002
Encoder
4
2
P163-403-000
22604000006
Micro switch
8
P163-404-000
22401170004
Orange button
8
3
P163-439-000
22806000032
Marquee speaker
2
4
P163-445-000
29711707017
Display
4
5
P163-438-000
22201010003
Light slot
4
P163-440-000
22002020003
BSK6812 light strip
1
6
P163-430-000
22002020002
BSK9822-32 light strip
122.0inx2(3.1mx2)
7
P163-430-000
22002020002
BSK9822-32 light strip
118.1inx2(3mx2)
8
P163-430-000
22002020002
BSK9822-32 light strip
117.3inx2(2.98mx2)
9
P163-411-000
22002018002
RX3535RGB light strip
59.1inX4(1.5mx4)
10
P163-411-000
22002018002
RX3535RGB light strip
79.5inX4(2.02mx4)
11
P163-411-000
22002018002
RX3535RGB light strip
40.9inX4(1.04mx4)
12
P163-430-000
22002020002
BSK9822-32 light strip
268.5in(6.82m)
13
P163-411-000
22002018002
RX3535RGB light strip
51.2inX4(1.3mx4)
14
P163-411-000
22002018002
RX3535RGB light strip
16.9inX4(0.43mx4)
15
P163-435-000
29711707015
Cup holder LED ring
4
16
P163-425-000
22801000085
Speaker
4
