Atari PONG 4P User Manual

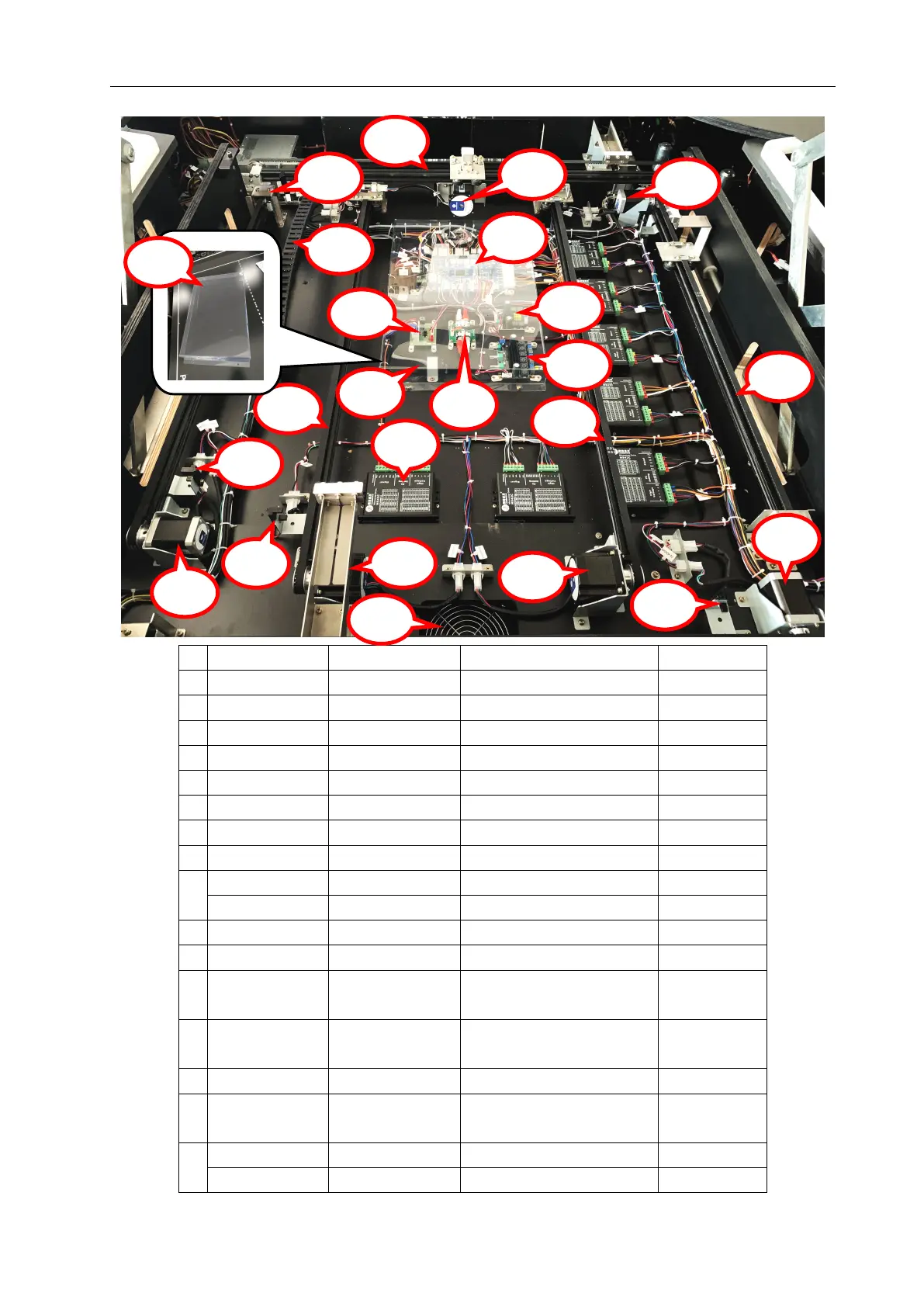

PONG 4P D&B Manual
11/18/2019
79
No.
Part No.
Code No.
Name
Qty
1
P163-477-000
23429000009
Motor driver
7
2
P163-431-000
26503020027
Chain
1
3
P163-420-000
29711707009B
Mainboard
1
4
P163-181-000
20611707R018
Dust-free cover
1
5
P163-428-000
22803010011
Amplifier 2.0
1
6
P163-424-000
22803010010
Amplifier 2.1
1
7
P163-452-000
29711707014
Driver
1
8
P163-443-000
22807000003
Audio isolator
1
9
P163-415-000
21702000022
Audio board
1
P163-416-000
23305000022
Audio cable
2
10
P163-462-000
23406000032
42MM Stepping motor
4
11
P163-463-000
23406000033
57MM Stepping motor
3
12
P163-482-000
26504010002
Y axle Toothed belt
(XL type)
75.9inx1
(1928mmx1)
13
P163-483-000
26504010002
X axle Toothed belt
(XL type)
74.92inx2
(1903mmx2)
14
P163-408-000
21503000055
Sensor SW
6
15
P163-484-000
26504010002
Paddle axle Toothed belt
(XL type)
65.63inx4
(1667mmx4)
16
P163-406-000
22702010025
Fan
1
P163-410-000
22702000010
Fan net
2
1
2
14
3
5
6
7
8
9
10
10
11
11
15
13
14
11
14
10
10
12
16
4
13
