Atari XL User Manual

CHAPTER 2
SETTING UP YOUR Xl

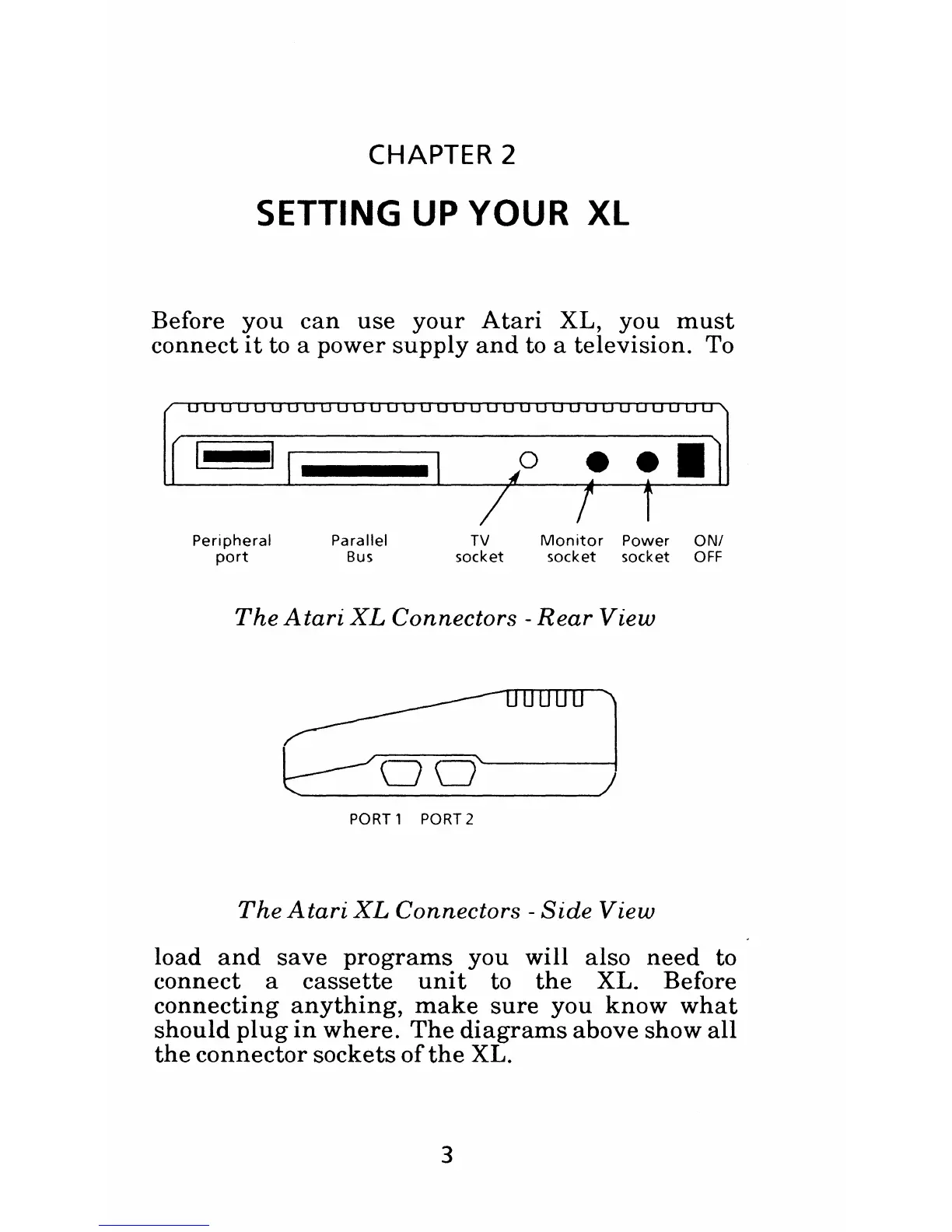

Before you can use your Atari XL, you must
connect it to a power supply and to a television. To
Peripheral
port
Parallel
Bus
TV Monitor Power aNI
socket socket socket OFF
The Atari XL Connectors - Rear View
00
PORT 1 PORT 2
The Atari XL Connectors - Side View
load and save programs you will also need to
connect a cassette unit to the XL. Before
connecting anything, make sure you know what
should plug in where. The diagrams above show all
the connector sockets of the XL.
3
