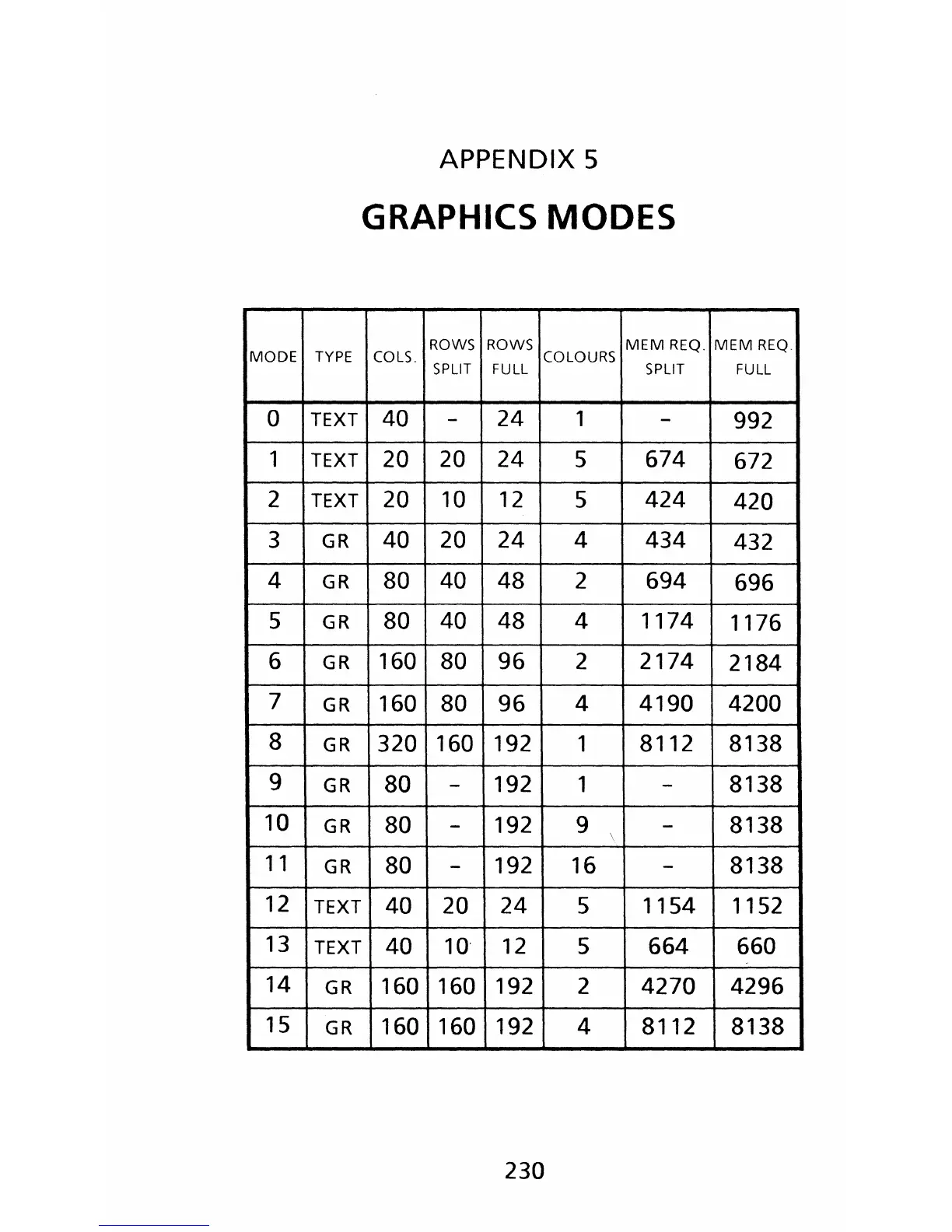

APPENDIX 5
GRAPHICS MODES
ROWS ROWS
MEM REO.
MEM REQ.
MODE
TYPE
COlS.
COLOURS
SPLIT FUll SPLIT
FUll
0
TEXT
40
-
24 1
-
992
1
TEXT
20
20
24 5
674
672
2
TEXT
20
10 12
5
424
420
3
GR 40 20 24 4 434
432
4
GR 80
40 48
2
694
696
5
GR
80
40 48
4
1174
1176
6
GR 160 80 96
2
2174
2184
7
GR
160
80
96 4 4190
4200
8
GR 320
160
192 1
8112
8138
9
GR 80 -
192
1
-
8138
10
GR
80
-
192 9
-
8138
\
11
GR
80
-
192 16
-
8138
12
TEXT
40 20
24
5 1154 1152
13
TEXT
40
10'
12
5 664 660
14
GR 160 160 192 2 4270 4296
15
GR
160
160 192
4 8112
8138
