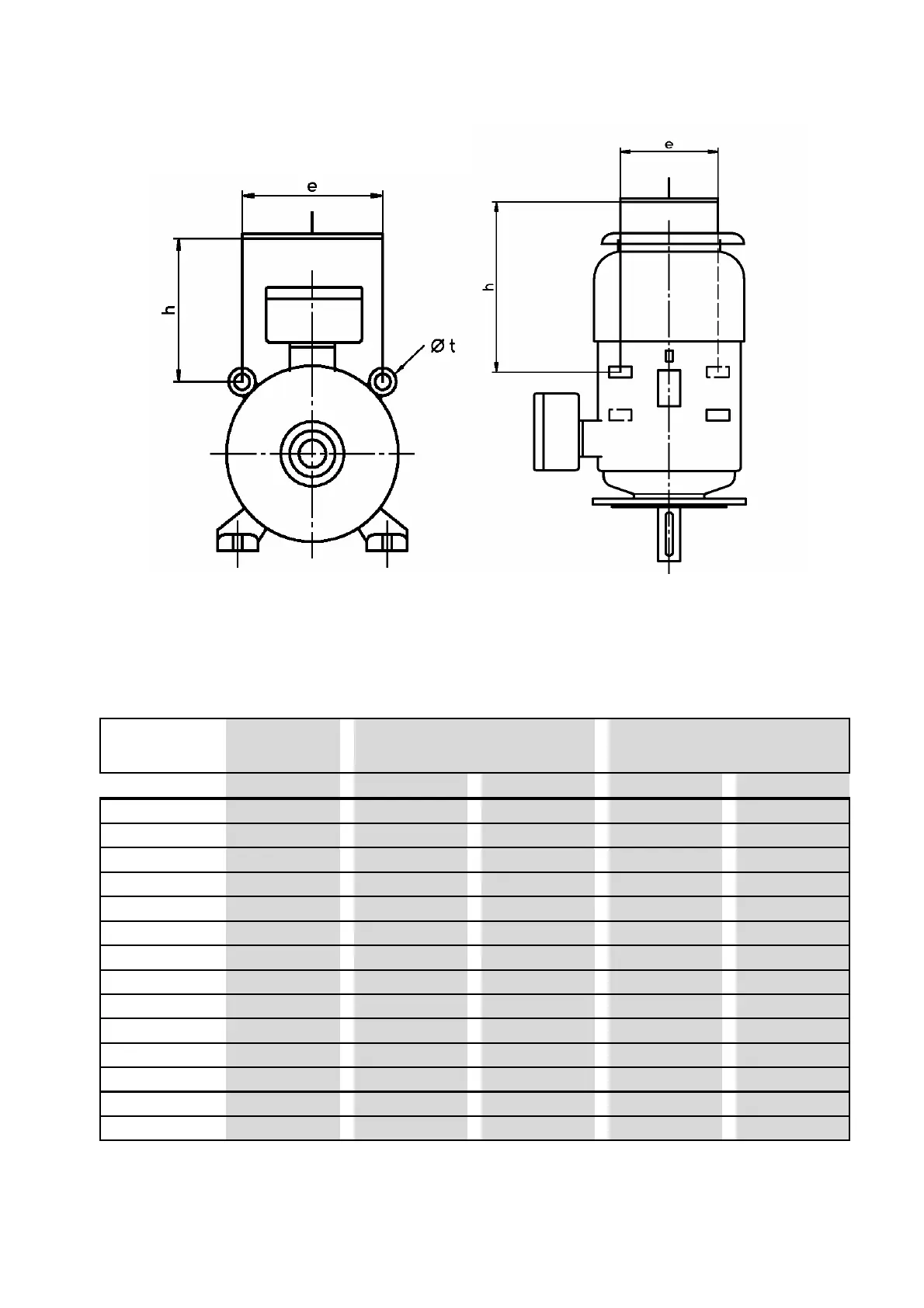

Figure 1: Eyebolt dimensions
Table 1: Minimum dimensions for lifting eyebolts and crossbeams
Frame size
Ø t
horizontal vertical
e h e h
90 20 167 100 220 187
100 20 185 112 242 201
112 20 202 103 262 236
132 25 243 170 307 247
160 30 262 206 314 293
180 30 294 223 402 372
200 35 390 219 451 399
225 40 366 230 510 490
250 40 435 282 546 548
280 40 498 301 600 574
315 50 640 337 700 595
355 60 629 397 816 893
400 60 790 312 890 771
450 60 833 317 980 660
