ADJUSTMENT
1. Fine-tune the gun to your desired working settings of spray
pattern, fluid output and degree of paint atomization using the 3
controls illustrated in Figure 5.

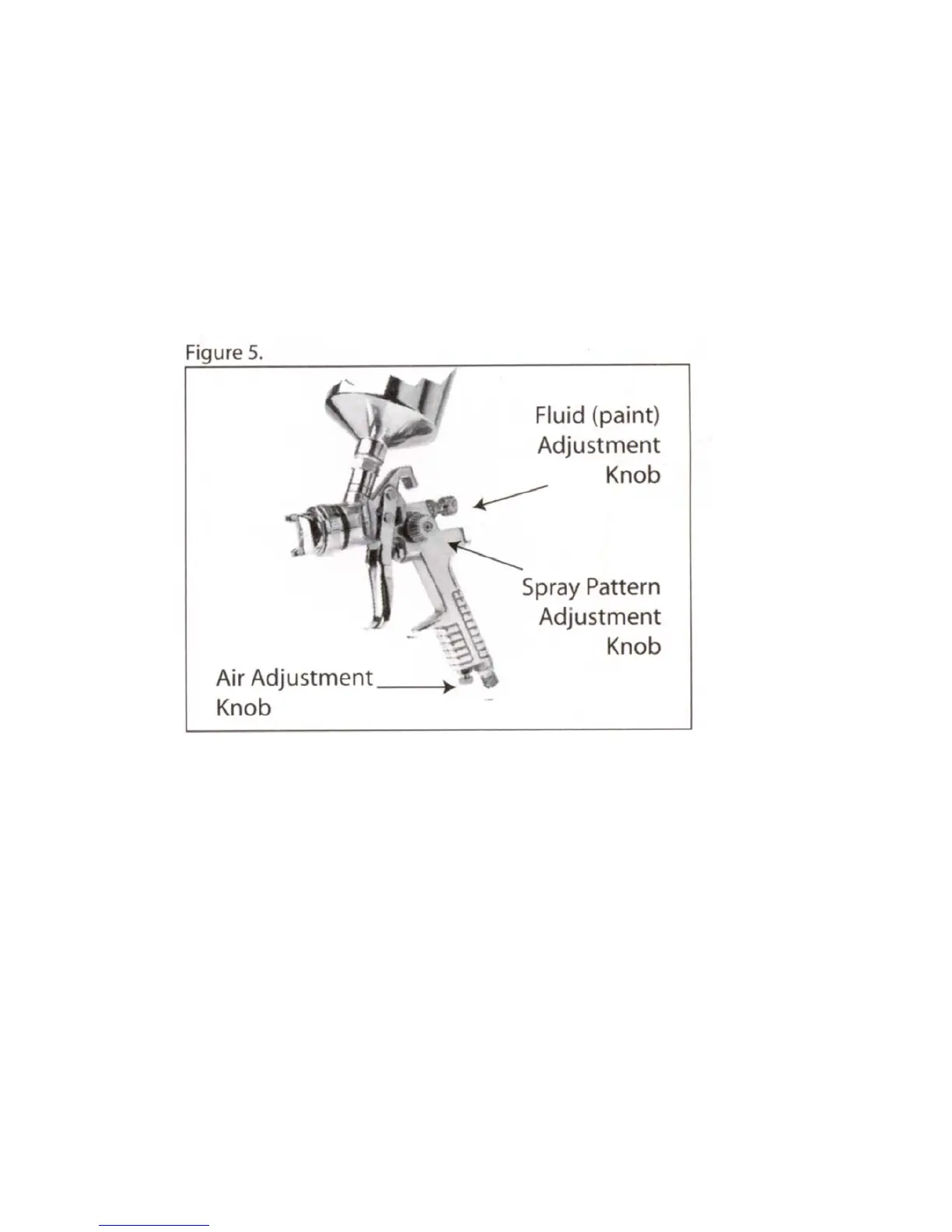

Figure 5:
Maintenance
To clean the gun, pour any leftover paint back into its container.
Using thinner, clean out the paint cup and cap. Spray some thinner
through the gun to clean the spray head, needle and nozzle. Spray
until thinner comes out clean. Clean all paint passages as any paint
left in the gun and allowed to dry could clog the spray head. Wipe
the exterior of the gun with the cleaning brush included and a soft
