ATECH BCV 700 - Description & Functions

Automatic Bottom Blowdown Control Valve
2. DESCRIPTION & FUNCTIONS
The Bottom Blowdown Valve BCV 700 opens in response to a signal from the Smart Bottom Blowdown Controller BC 700
according to determined frequency and duration of the blowdown.
The bottom blowdown valve enables a fast opening which is necessary for the blowing down. This fast opening causes
a suction in the boiler whereby deposits solids are flushed out of the boiler.
Please refer to "BC 700 Installation and Operation Manual for Automatic Bottom Blowdown Controller" for detailed
information before assembly.
: Aliminyum

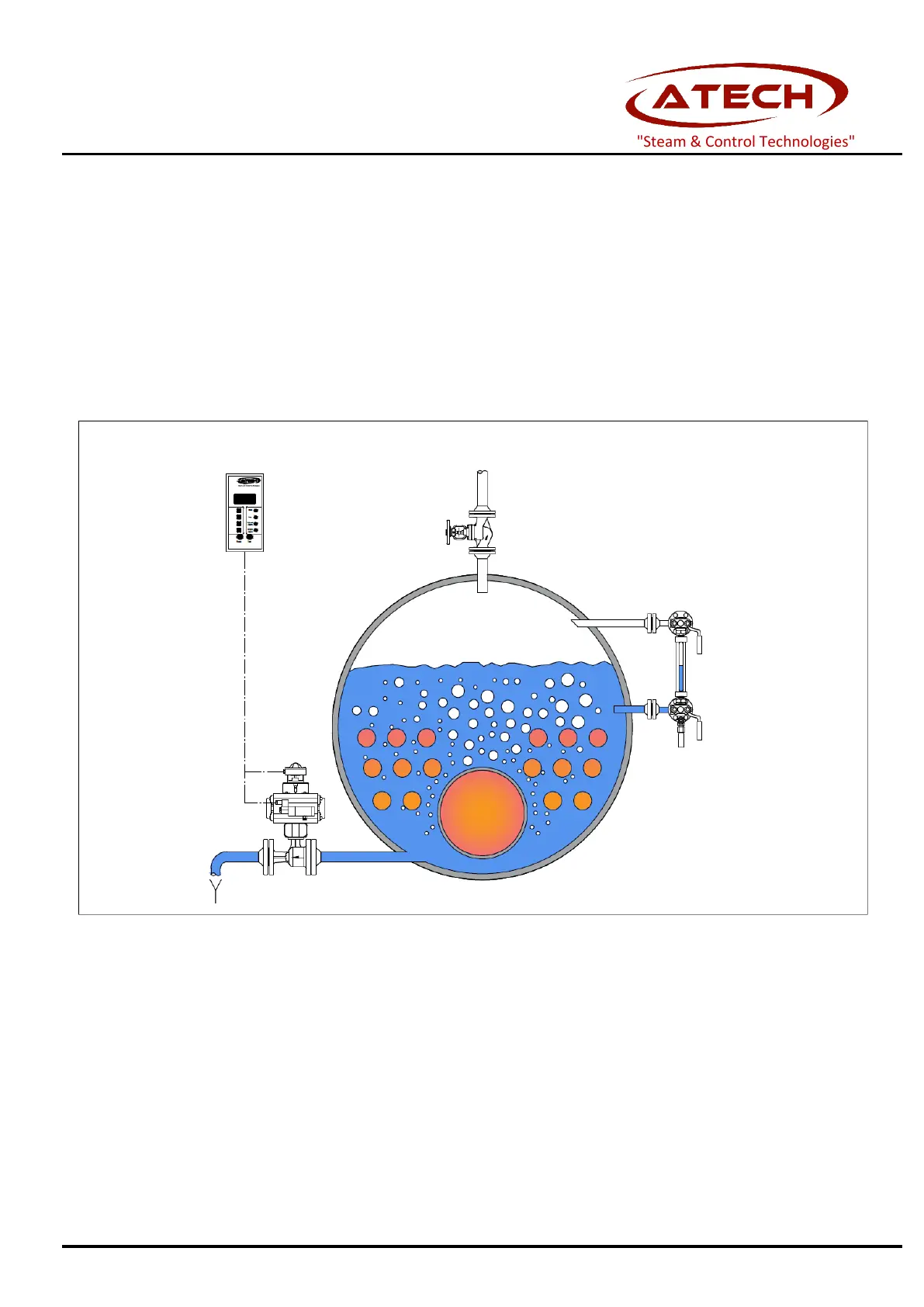

Figure 1 Automatic Bottom Blowdown System installation.
IM-BCV70022K Page 3
BCV 700
"Steam & Control Technologies"
www.atec h-ltd.com
Steam Boiler
BCV 700
Bottom Blowdown
Control Valve
BC 700
Bottom
Blowdown
Controller
