ATECH BCV 700 - Wiring; Compressed Air Supply

Automatic Bottom Blowdown Control Valve
4.2 Wiring
Wiring between Smart Bottom Blowdown Controller BC 700 and namur solenoid valve, 3x1 mm
2
cable can
be used. Wiring between controller and limit switch, 2x1 mm
2
normal cable can be used.
Limit Switch Wiring
Namur Wiring Compressed air supply
Ø 8mm pipe

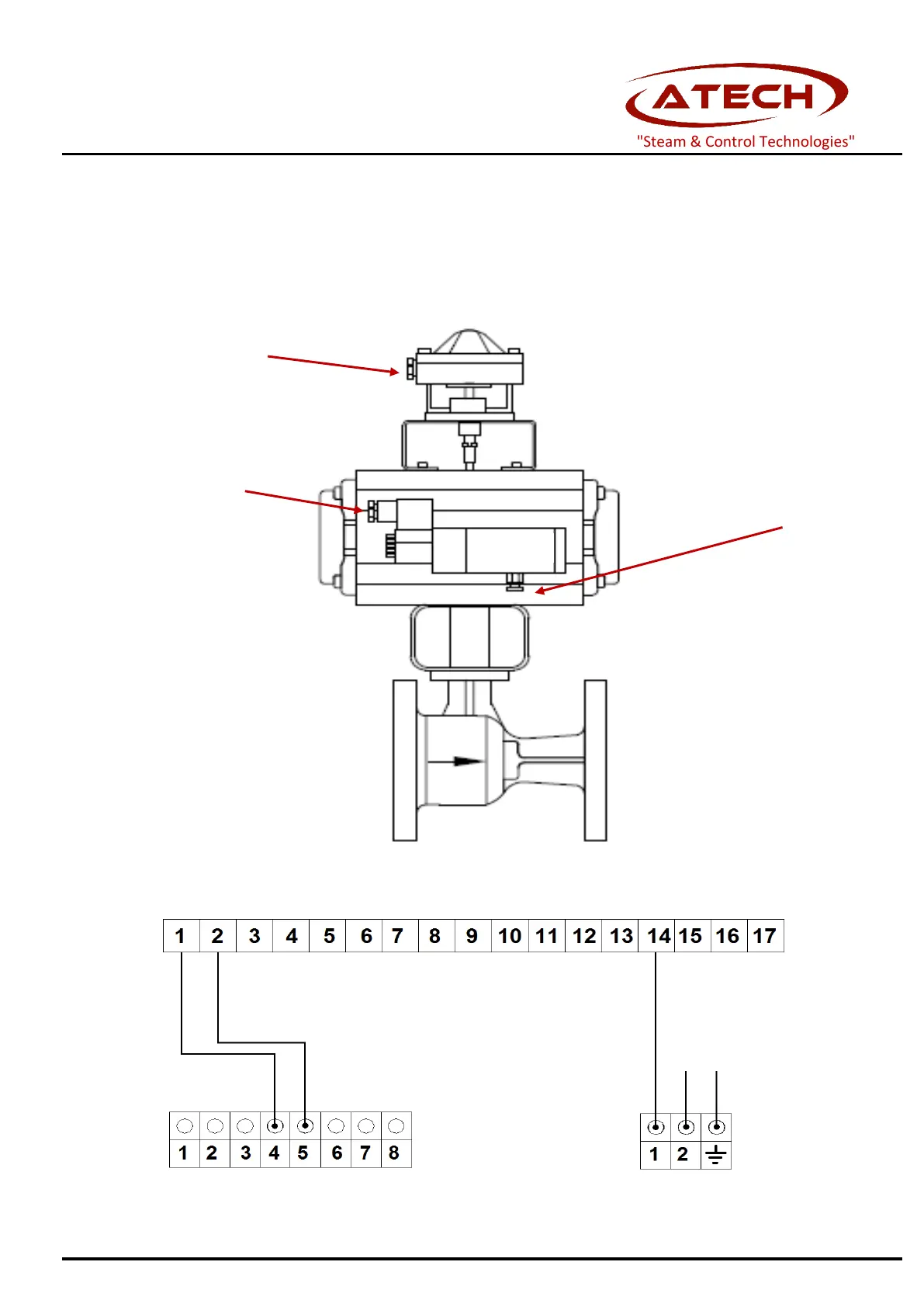

Figure 3 Bottom Blowdown Valve wiring and compressed air supply.
Figure 4 Bottom Blowdown Valve wiring.
IM-BCV70022K Page 5
BCV 700
"Steam & Control Technologies"
www.atec h-ltd.com
Limit Switch
Namur
Pneumatic Actuator
Bottom
Blowdown
Valve
Limit Switch
Namur
ATECH BC 700
Smart Bottom Blowdow
Controller
