PE6108AV / PE6208AV / PE8208AV User Manual
14

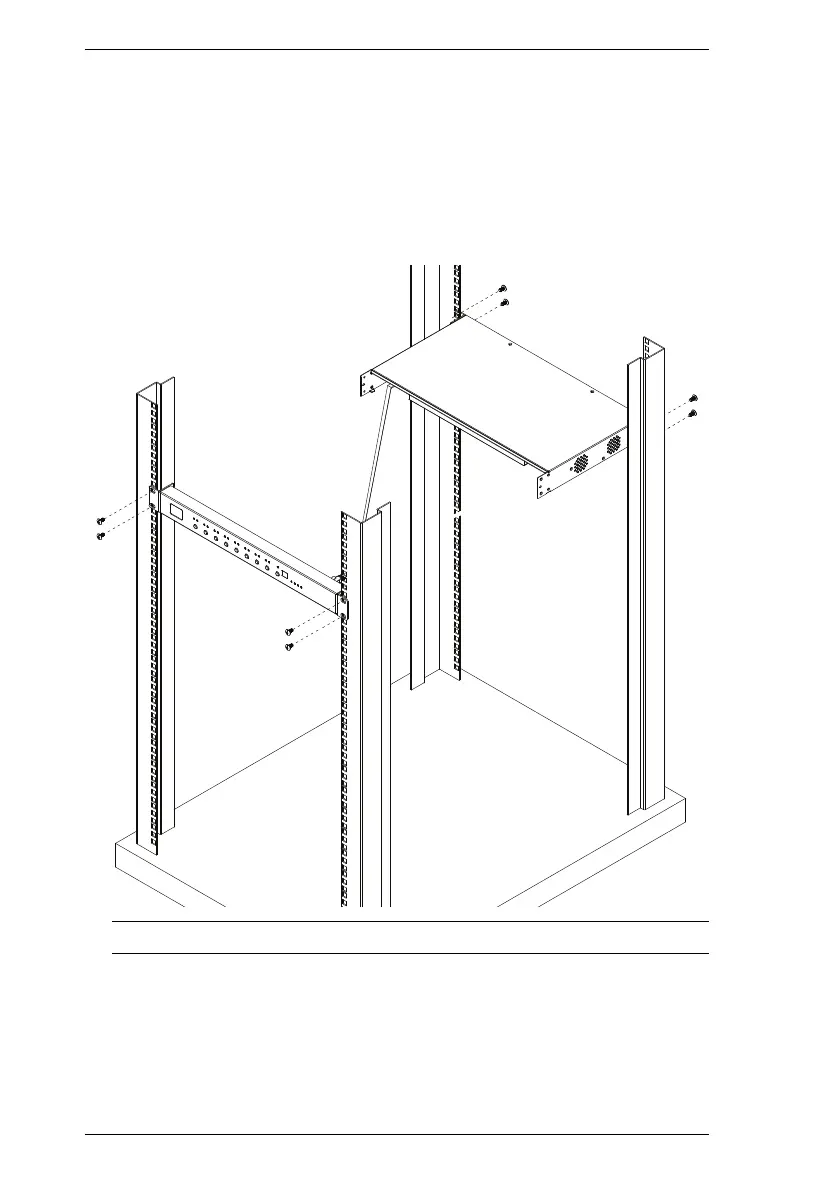

3. There is an RJ-45 port on the front panel and rear module used to connect
the two units. A standard Ethernet cable can be used to extend the front
panel and rear module farther apart.
4. Position the device in the rack and align the holes in the mounting brackets
with the hole in the rack.
5. Screw the mounting brackets to the rack.
Note: Cage nuts are provided for racks that are not prethreaded.
