Chapter 5. RS-232 / Telnet Commands
69

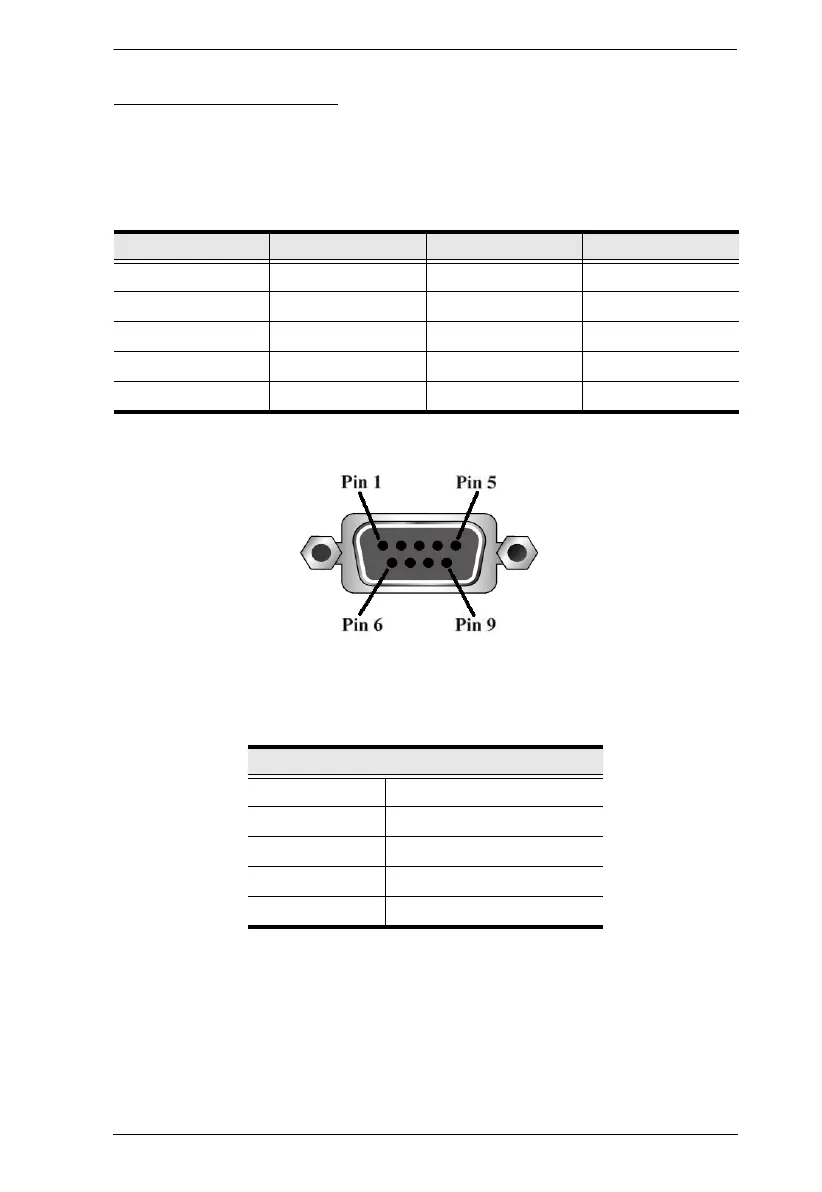

RS-232 Serial Control
This section provides the serial control settings and PIN assignments used to
configure the RS-232 Serial Port.
RS232 Pin Assignment
Configuring the Serial Port
The controller’s serial port should be configured as follows:
Pin Description Pin Description
1 Not connected 6 Not connected
2 RXD 7 Not connected
3 TXD 8 Not connected
4 Not connected 9 Not connected
5GND
RS-232 Serial Control Protocol Settings
Baud Rate 115200 (Default)
Data Bit 8 bits
Parity None
Stop Bit 1 Bit
Flow Control None
To Next Page
