PE6108AV / PE6208AV / PE8208AV User Manual
16
Installation
These instructions must be performed by a licensed electrician.

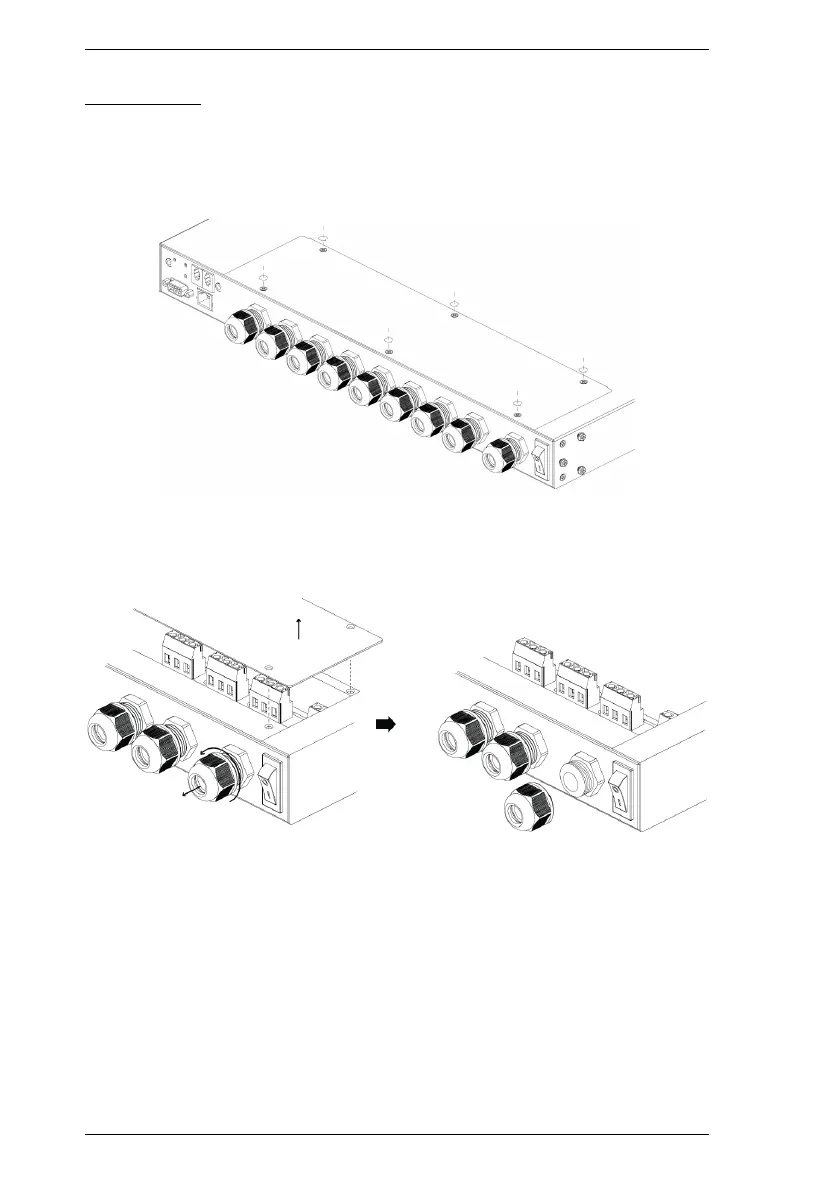

1. Remove the six screws from the cover covering the terminal block
compartment.
2. Remove the cover from the compartment and loosen the cable gland by
turning the gland nut counter-clockwise (use a dedicated spanner if
required).
3. Strip off the outer jacket of the power cord using a wire stripper. Use the
slot appropriate for the cord’s size (refer to Cord Selection) on the wire
stripper.
Make sure there is a length of 45-60mm exposed for the 3 inner wires and
remove any jute, paper or other fillers.
4. There should be 3 inner wires. Strip the wires using the appropriate slot
(refer to Cord Selection) with the wire stripper.
Make sure there is a length of 6-7mm wire exposed for inserting into the
terminal block.
