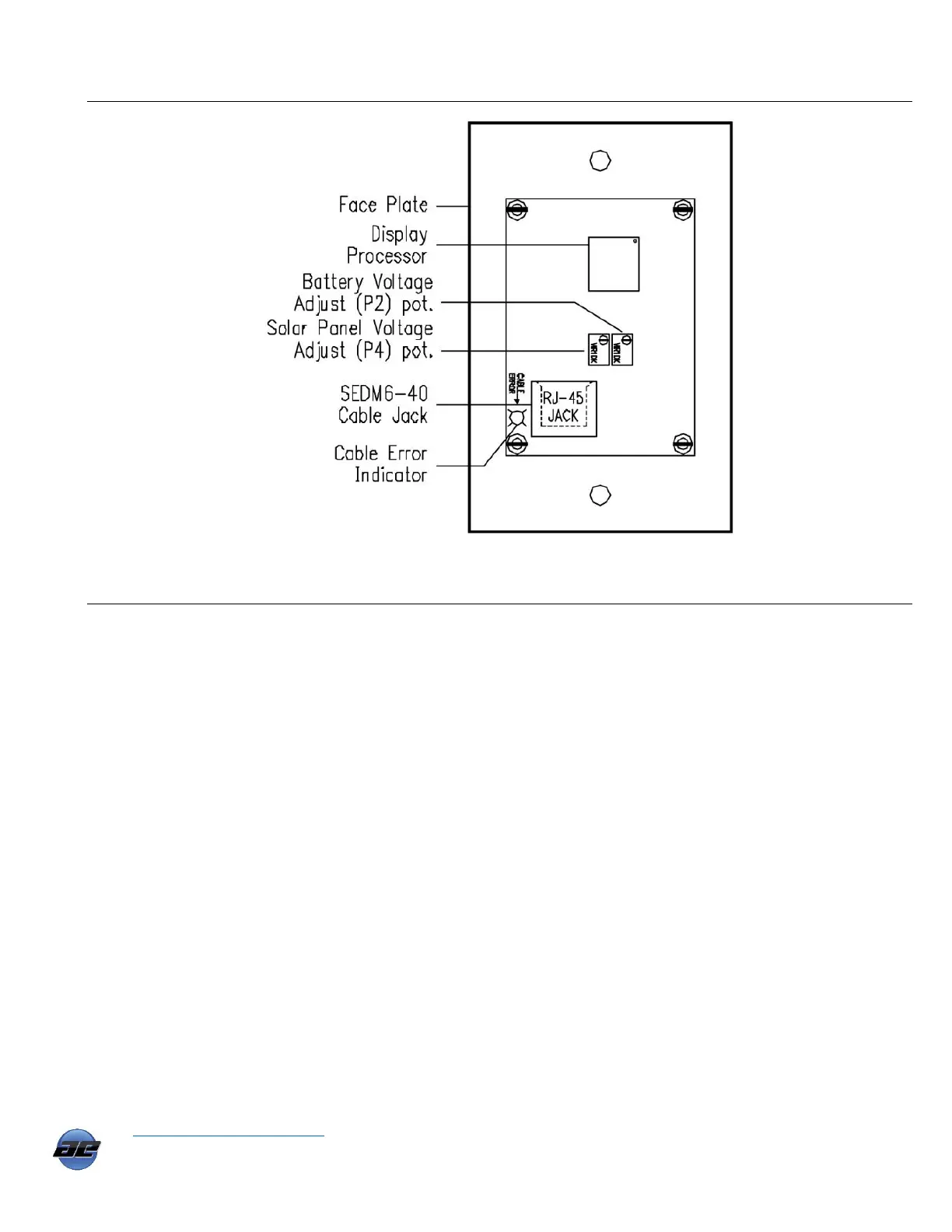

Battery Adjust Pot & Jack Locations
Installation Tips for SEDM6-40
1. When a network cable (up to 50 feet long), is used to connect the SEDM6-40 to the PVDCM25D-
MPT charge controller, it must be the straight through type or the display will not read properly. A
cable error LED will light up brightly on the back of the meter if the wrong type of cable such as the
crossover type is used.
2. The minimum solar charge current the SEDM6-40 will indicate is about 0.30 Amps. Below this
value the SEDM6-40 will display “chr” if the PVCM40D-MPT is passing solar charge current to the
battery. The current display reading will indicate “0" if the controller is not in any of the charging
stages.
3. The solar current shunt used in the PVCM40D-MPT is rated for a maximum of 25 Amps. There are
other displays and charge controllers in the SUNEXPLORER product line for higher Amperage
systems.
The SEDM6-40 display module serves as a remote digital readout for the
PVCM40D-MPT charge controller. The display units and controllers ARE NOT
interchangeable with other parts from other kits.
14
