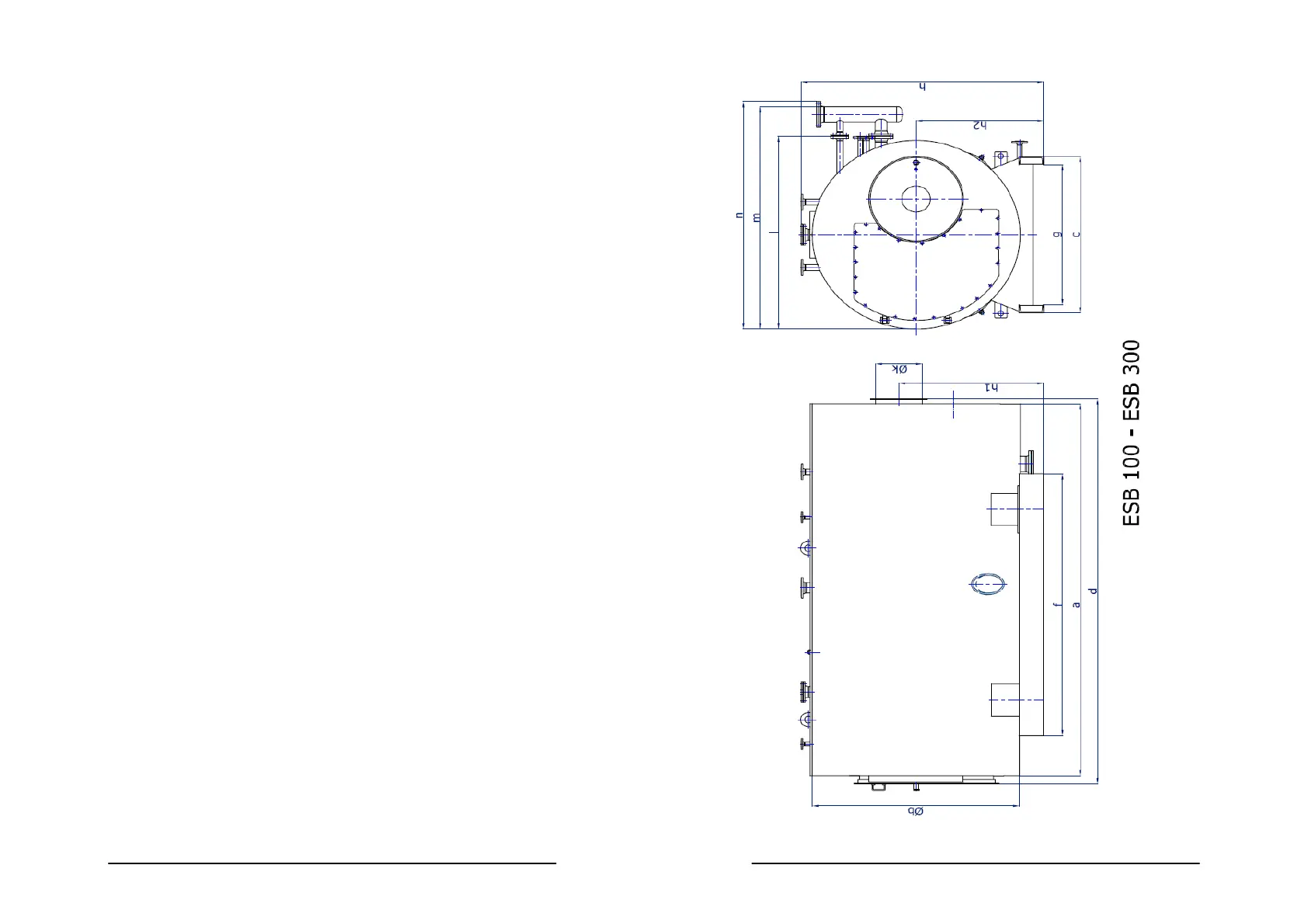

1 Flame inspection system
2 Front door
3 Water level electrode nozzle
4 Safety valve nozzle
5 Indicator nozzle
6 Manhole
7 Steam outlet nozzle
8 Air pipe
9 Eyebolt
10 Excess pressure lid
11 Chimney outlet
12 Water level bottle
13 Foot group
14 Bottom blowdown nozzle
15 Burner connection flange
16 Bottom mud blowdown nozzle
17 Water level upper connection nozzle
18 Water level lower connection nozzle
19 Surface conductivity electrode and surface
blowdown nozzle
20 Water feed inlet nozzle
21 Boiler supporters
22 Smoke chest
