5
○○○○○○○○○○○○○○○○○○○○○○○○○○
Model 272 PBM THX
Atlantic Technology ®

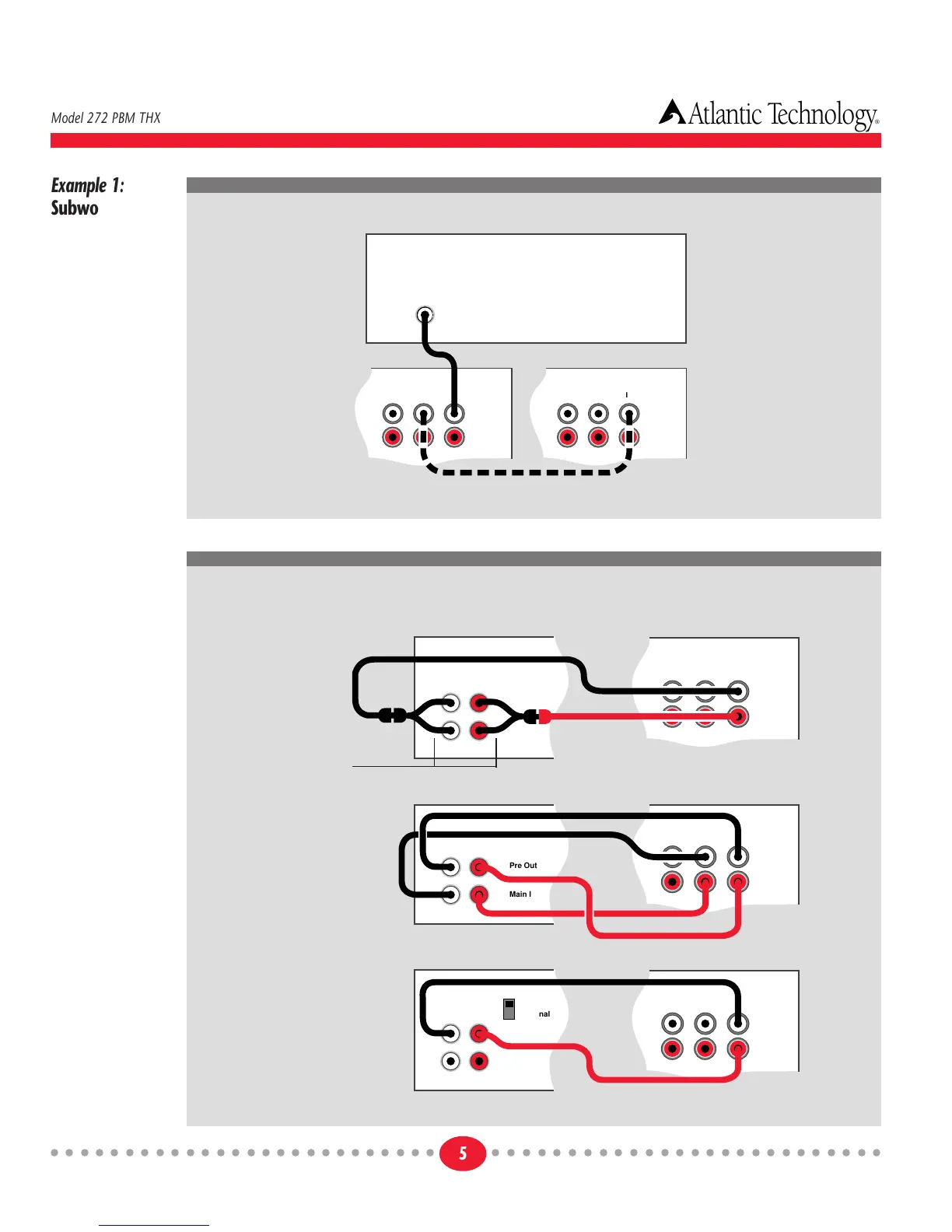

Example 1:
Subwoofer
Line Out/
Low Level In
Before using this
connection
method, please
see the Note on
page 3.
Example 2:
Preamp Line
Out/Low
Level In for
1 Subwoofer
This arrangement
is for owners of
stereo receivers/
amplifiers with
Preamp outputs.
If your receiver/
amplifier uses
jumper links be-
tween the Pre-out
and Main In, then
you must remove
them and use
option 1 or 2. If
your receiver/
amplifier uses a
switch instead of
connectors, then
use option 3.
Option 1
Option 3
Option 2
L/MONO
RIGHT
LOW LEVELHI PASS
THRU
OUT IN
L/MONO
RIGHT
LOW LEVELHI PASS
THRU
OUT IN
L/MONO
RIGHT
LOW LEVELHI PASS
THRU
OUT IN
Single Sub Woofer
Pre Out
Main In
LR
Receiver/Amplifier/Processor
Pre Out
Main In
LR
Pre Out
Main In
LR
Internal
Pre Amp
External
Pre Out
Main In
LR
Y-adapters
Sub Woofer Out
Single Sub Woofer Optional Second Sub Woofer
Receiver/Amplifier/Processor
L/MONO
RIGHT
LOW LEVELHI PASS
THRU
OUT IN
L/MONO
RIGHT
LOW LEVELHI PASS
THRU
OUT IN
