Atlantic Technology 272 PBM THX User Manual

○○○○○○○○○○○○○○○○○○○○○○○○○○
7
○○○○○○○○○○○○○○○○○○○○○○○○○○
Model 272 PBM THX
Atlantic Technology ®

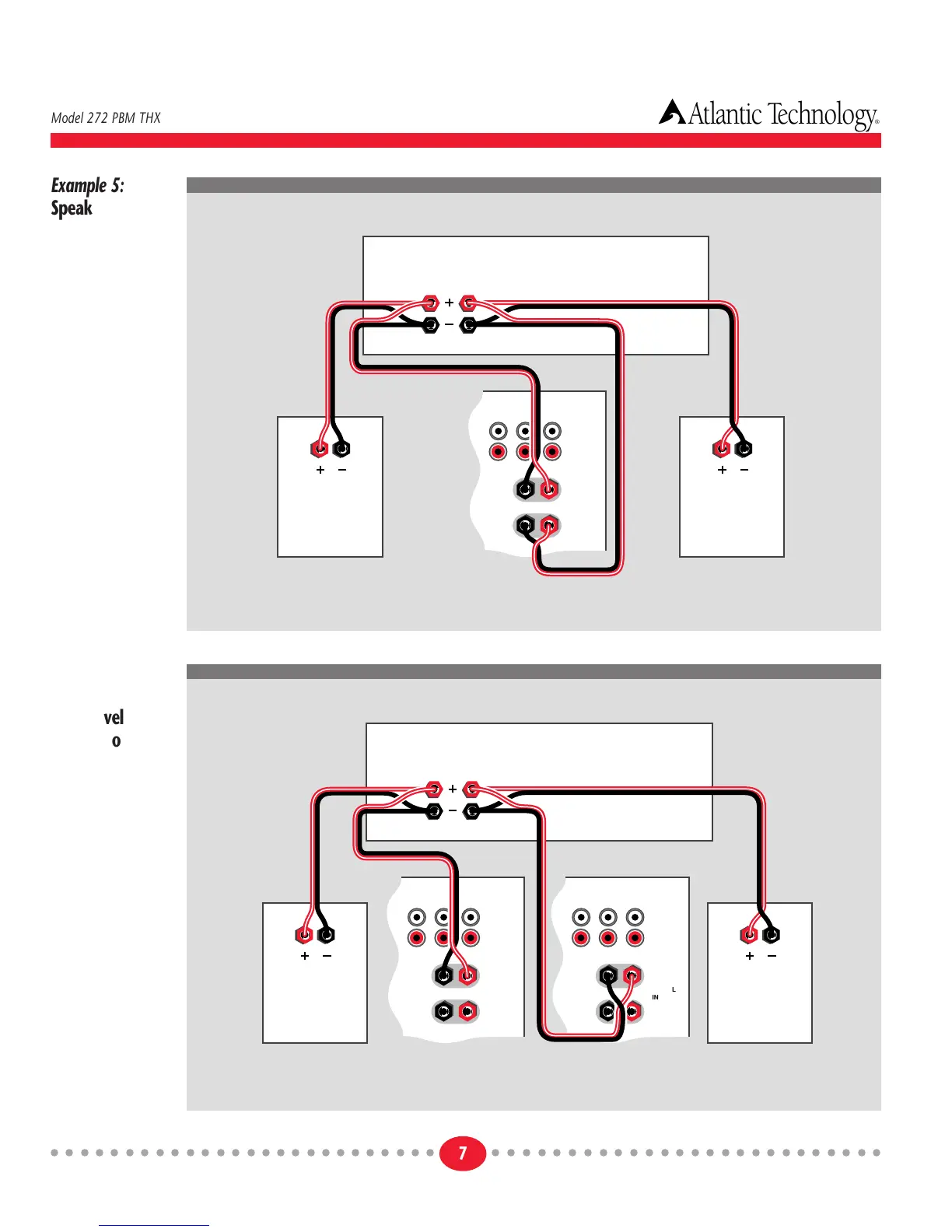

Example 5:
Speaker Out/
High Level In for
1 Subwoofer
This is the
recommended
method for
connecting the
272 PBM THX to
a discrete 5.1
channel. Please
the Note on
page 3.
Left Right
Main Speakers
Sub WooferLeft Front Speaker Right Front Speaker
Receiver/Amplifier
L/MONO
L/MONO
RIGHT
RIGHT
HI LEVEL
INPUT
LOW LEVELHI PASS
THRU
OUT IN
Example 6:
Speaker Out/
High Level In for
2 Subwoofers
This is the recom-
mended method
for connecting the
272 PBM THX to
a discrete 5.1
channel receiver
or amplifier.
Please see the
Important Note
on page 3. You
can also use the
speaker level
THRU outputs.
Note that the
L/MONO High
Level input is used
on both left and
right subwoofers.
Left Right
Main Speakers
Left Sub Woofer Right Sub WooferLeft Front Speaker Right Front Speaker
Receiver/Amplifier
L/MONO
L/MONO
RIGHT
RIGHT
HI LEVEL
INPUT
LOW LEVELHI PASS
THRU
OUT IN
L/MONO
L/MONO
RIGHT
RIGHT
HI LEVEL
INPUT
LOW LEVELHI PASS
THRU
OUT IN
