7
○○○○○○○○○○○○○○○○○○○○○○○○○○
Model 372 PBM THX
Atlantic Technology ®

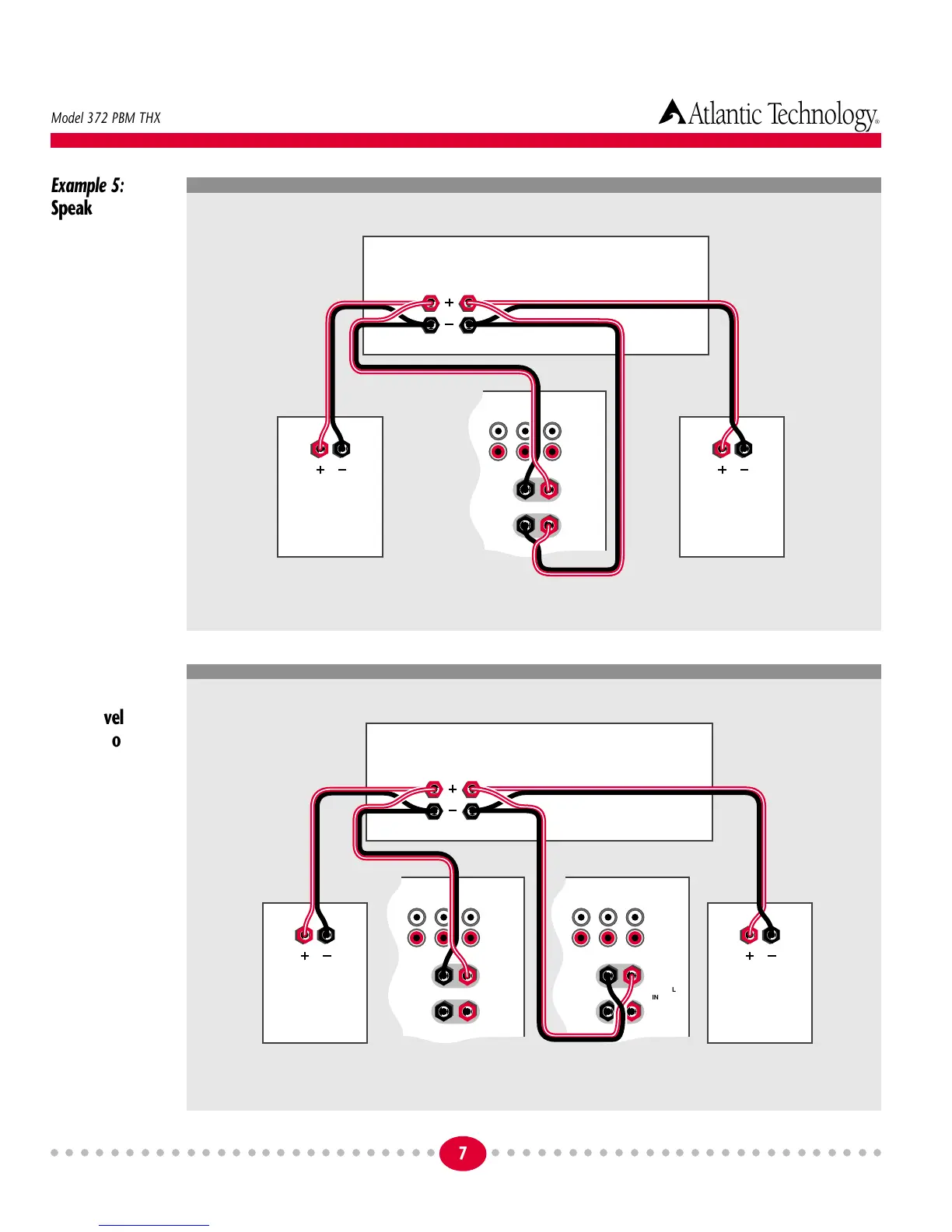

Example 5:
Speaker Out/
High Level In for
1 Subwoofer
This is the most
common method
for connecting a
subwoofer to a
system without a
dedicated sub-
woofer line out or
Preamp outputs.
Left Right
Main Speakers
Sub WooferLeft Front Speaker Right Front Speaker
Receiver/Amplifier
L/MONO
L/MONO
RIGHT
RIGHT
HI LEVEL
INPUT
LOW LEVELHI PASS
THRU
OUT IN
Example 6:
Speaker Out/
High Level In for
2 Subwoofers
This is the most
common method
for connecting 2
subwoofers to a
system without a
dedicated sub-
woofer line out or
Preamp outputs.
Note that the
L/MONO High
Level input is used
on both left and
right subwoofers.
Left Right
Main Speakers
Left Sub Woofer Right Sub WooferLeft Front Speaker Right Front Speaker
Receiver/Amplifier
L/MONO
L/MONO
RIGHT
RIGHT
HI LEVEL
INPUT
LOW LEVELHI PASS
THRU
OUT IN
L/MONO
L/MONO
RIGHT
RIGHT
HI LEVEL
INPUT
LOW LEVELHI PASS
THRU
OUT IN
